Sensor Cover Removal/Installation

NOTE:

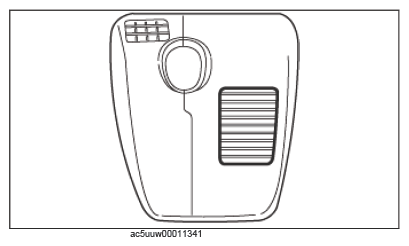

• There are two types of the sensor cover. Verify the sensor cover shape before performing the procedures.

Courtesy of MAZDA MOTORS CORP.

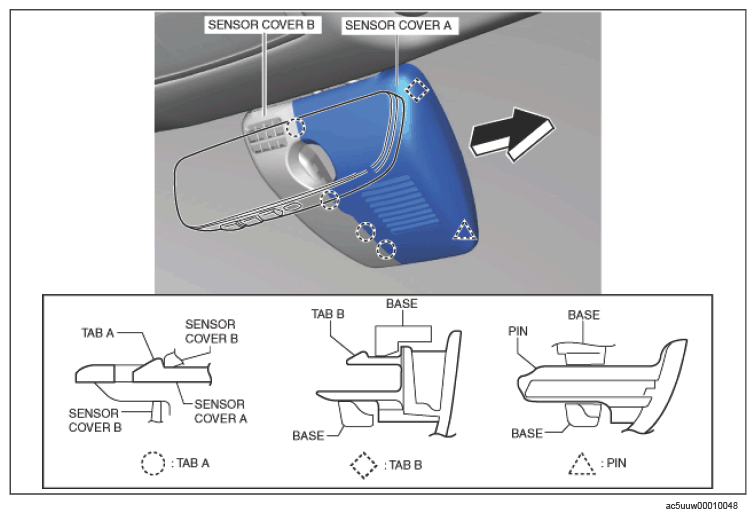

1. Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and pin, and remove sensor cover A from the base.

   Courtesy of MAZDA MOTORS CORP.

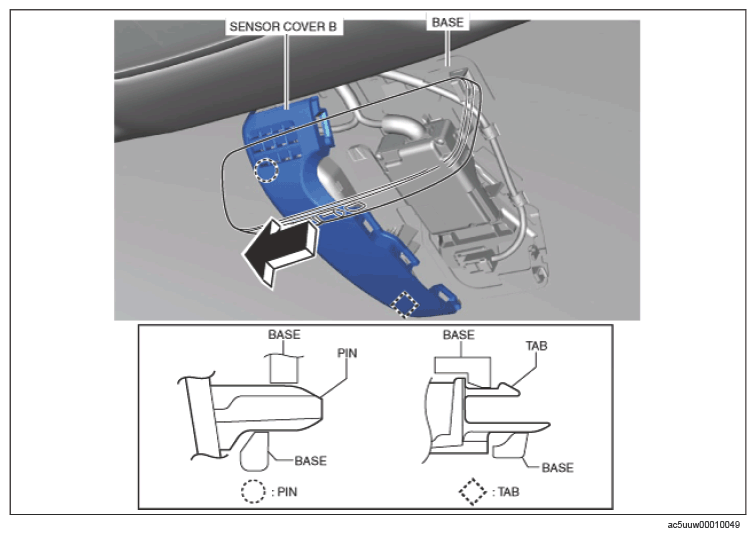

2. Pull sensor cover B in the direction of the arrow shown in the figure, detach the pin and tab, and remove sensor cover B from the base.

   Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.
