Home >> Mazda >> 2023 >> CX-50 Turbo >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Symptom Troubleshooting - I-Stop >> Quick Diagnostic Chart

Quick Diagnostic Chart

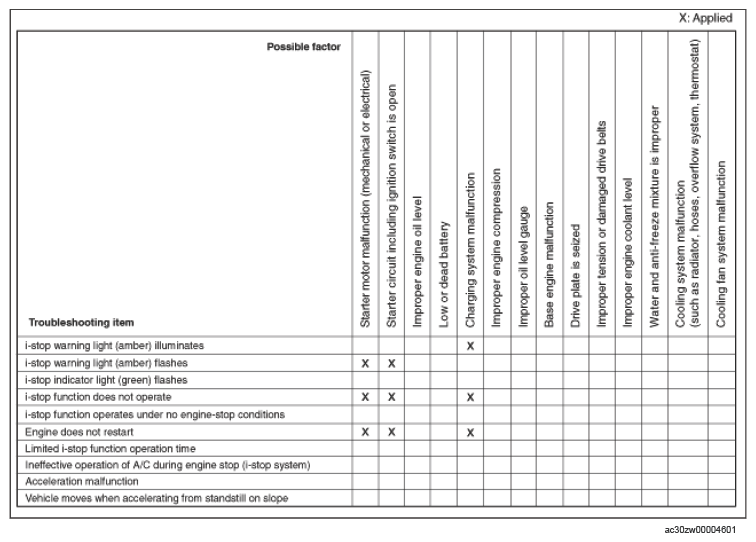

G15658911Courtesy of MAZDA MOTORS CORP.

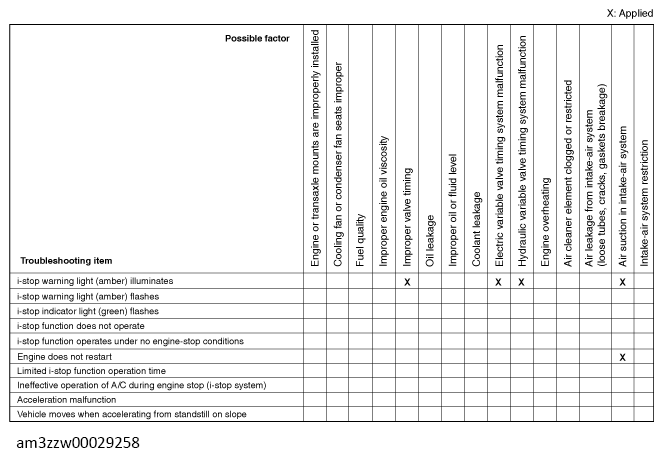

G14490226Courtesy of MAZDA MOTORS CORP.

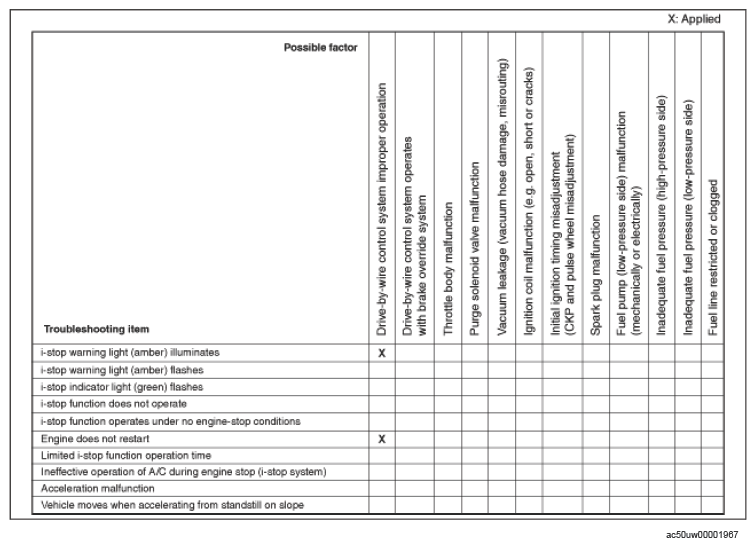

G15743752Courtesy of MAZDA MOTORS CORP.

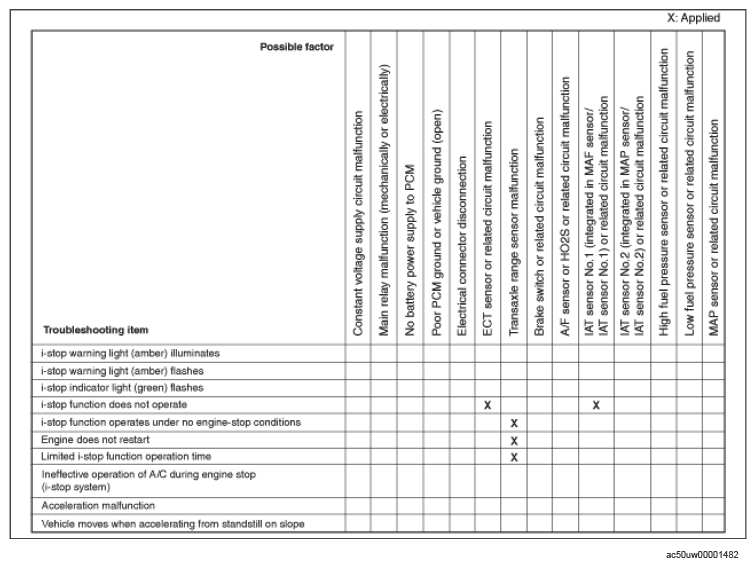

G15743753Courtesy of MAZDA MOTORS CORP.

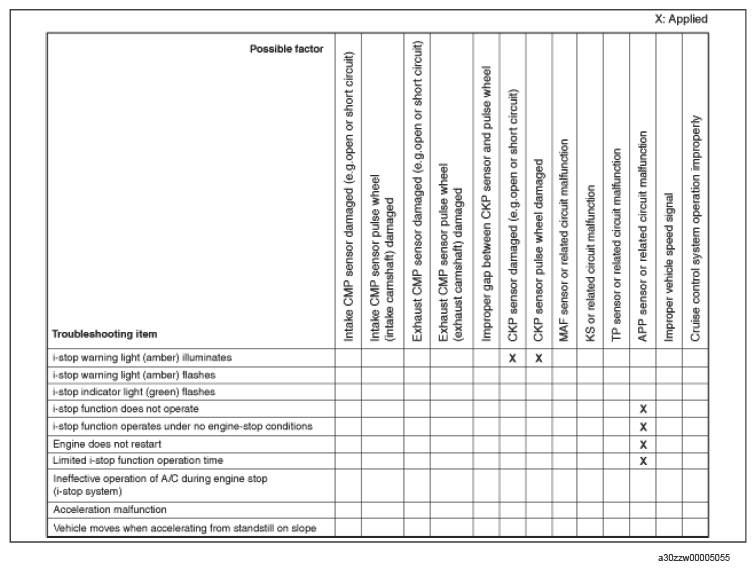

G15743754Courtesy of MAZDA MOTORS CORP.

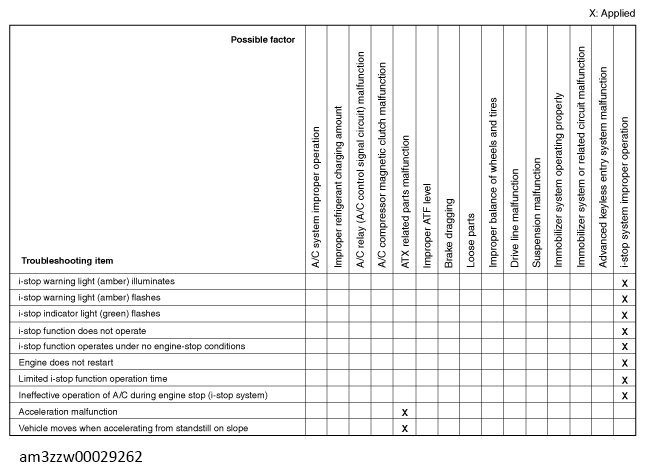

G14490230Courtesy of MAZDA MOTORS CORP.

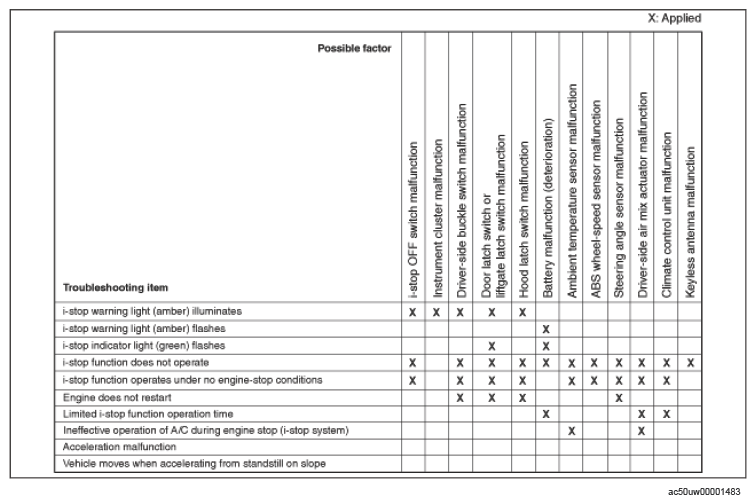

G15743756Courtesy of MAZDA MOTORS CORP.

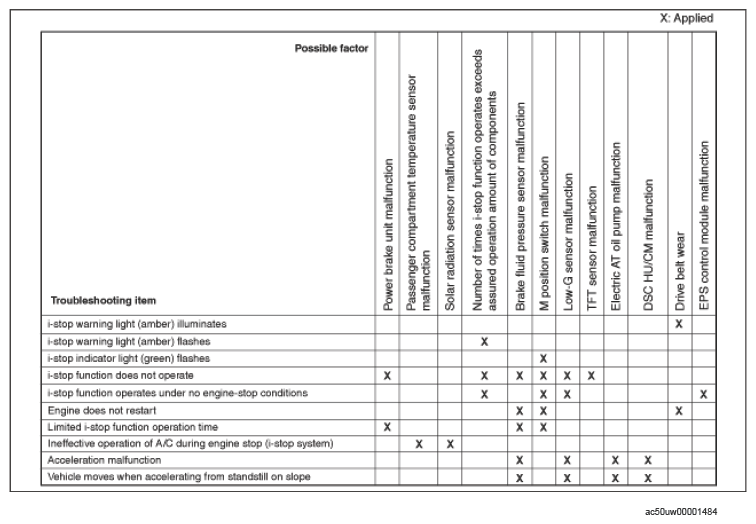

G15743757Courtesy of MAZDA MOTORS CORP.
