Drive Selection Switch Removal/Installation: Notes

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
3. Remove the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

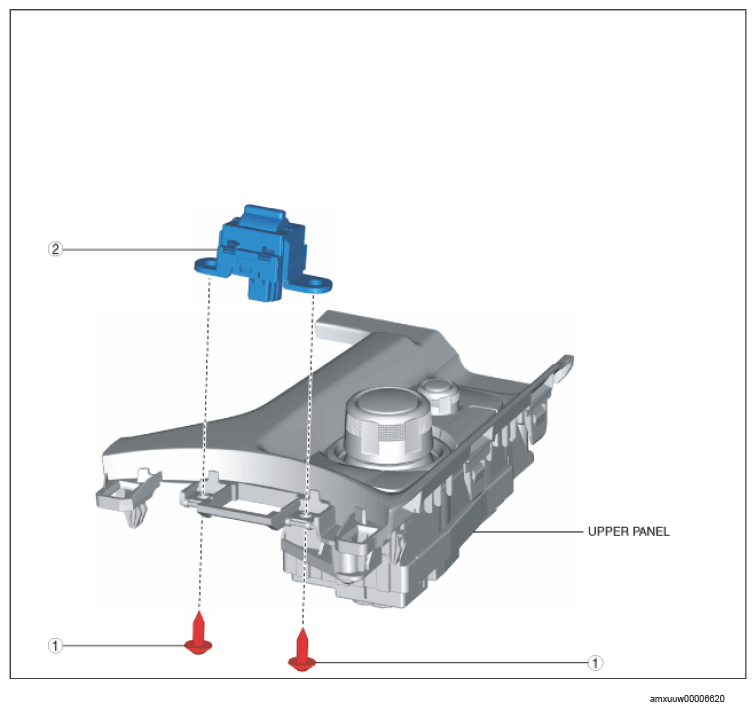

DRIVE SELECTION SWITCH COMPONENT OPERATIONS

Component No.	Refer to
1	Screw
2	Drive selection switch (See DRIVE SELECTION SWITCH INSTALLATION NOTE .)
