Heated Oxygen Sensor (Ho2S) Removal/Installation

WARNING:

• A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

CAUTION:

• Do not allow flammable objects such as the taping for bundling the wiring harness to come into contact with the exhaust system such as the exhaust manifold and silencer which reach high temperatures. Otherwise, it could cause fire damage.

NOTE:

• If penetrant lubricating spray penetrates the airflow hole of the HO2S, it could cause interference with the HO2S function.

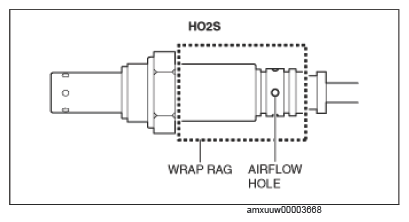

• When removing the HO2S, wrap a rag around the lower position so that penetrant lubricating spray does not get sprayed into the airflow hole.

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Lift up the vehicle.
3. Disconnect the HO2S connector.
4. Disconnect the catalytic converter (TWC) from the exhaust manifold side. (AT) (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
5. Tilt the catalytic converter (TWC) against the tunnel member. (AT)
6. Remove the nut and detach the clip from the catalytic converter.

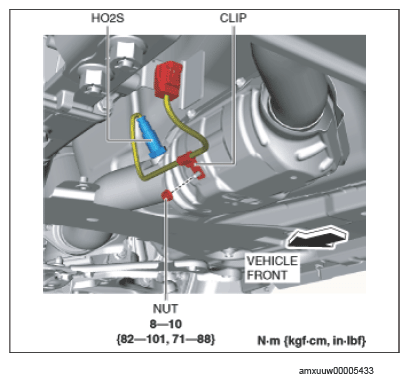

   Fig 1: HO2S Nut With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
7. Remove the HO2S using the SST.

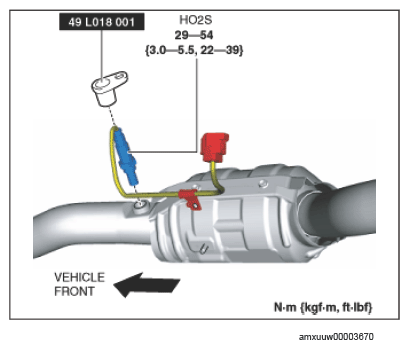

   Fig 2: HO2S With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
8. Install in the reverse order of removal.
