Power System Location Index

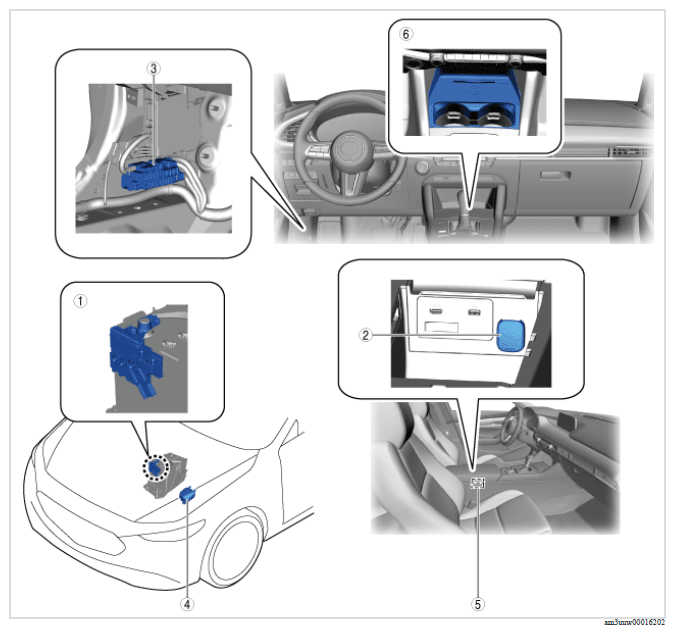

Fig 1: Power System Components Location

Courtesy of MAZDA MOTORS CORP.

POWER SYSTEM COMPONENT OPERATIONS

Component no	Refer to
1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION .)
2	Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See CENTER ACCESSORY SOCKET INSPECTION .)
3	Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .)
4	Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION .) (See RELAY INSPECTION .)
5	Backup power supply (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION .) (See BACKUP POWER SUPPLY INSPECTION .)
6	Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .) (See WIRELESS CHARGER (Qi) INSPECTION .) (See WIRELESS CHARGER (Qi) DISABLING PROCEDURE .)
