Fuse block installation note

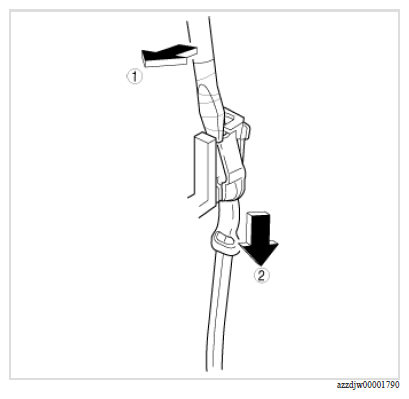

- Detach the fuse terminal from the stopper as shown in the figure.SYMBOL AND CONTENT DESCRIPTION
Symbol Content (1) (2)... Servicing procedure CAUTION:- If a terminal is installed incorrectly, it could damage electronic components and burn wiring harnesses. When relocating terminals after replacing the fuse block, line up the fuse blocks of the old and new parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.
- A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After relocating the terminals, lightly pull the wiring harnesses to verify that they cannot be pulled out.
- Relocate all fuse terminals to the fuse block.
