Remove Fuse Block: Notes
NOTE:
- When replacing the fuse block, it is necessary to switch the terminals from the fuse block terminal prior to replacement to the fuse block terminal on the replacement. When switching terminals, ready the replacement fuse block before pulling out the terminals of the fuse block prior to replacement. This is because it is necessary to switch the terminals one at a time so that the installation positions are not mistaken.

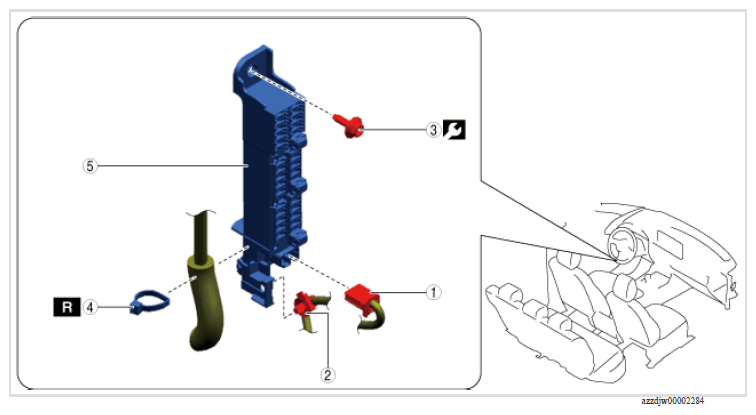

- Remove using the procedure shown in the figure.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | ||
|---|---|---|---|
| 1 | Connector | - | - |
| 2 | Wiring harness clip | - | - |
| 3 | Bolt | - | 11 N.m {110 kgf.cm, 95 in.lbf} |
| 4 | Band | Replacement part | - |
| 5 | Fuse block (See Fuse block removal note ). (See Fuse block installation note ). |
- | - |
