Remove Main Fuse Cover: Notes

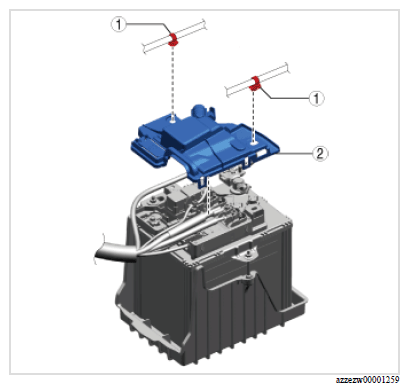

  1. Remove using the procedure shown in the figure.
G16713369Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Clip
(See Clip removal note ).
2 Main fuse cover
