Rear Accessory Socket Removal/Installation: Notes

D-code

• 66051
• 66297

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
   2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
   3. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
   4. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
   5. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
   6. Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
   7. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

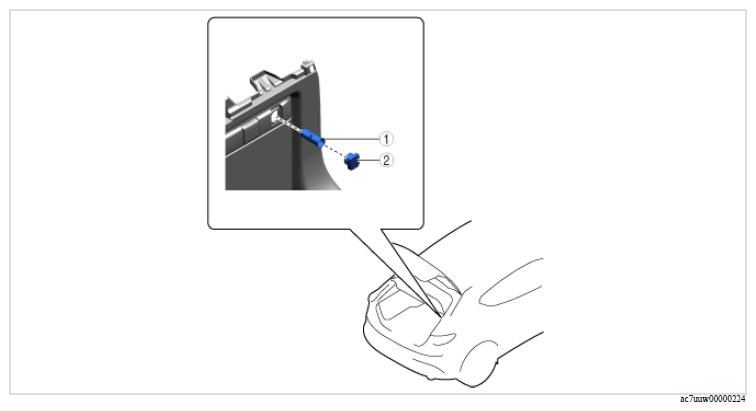

3. Remove using the procedure shown in the figure.

Courtesy of MAZDA MOTORS CORP.
