Remove Console Panel: Notes
NOTE:
- When replacing the console panel, remove the following parts.
- Rear ventilator grille
- Rear climate control unit (with rear climate control unit)
- USB terminal (with USB terminal)

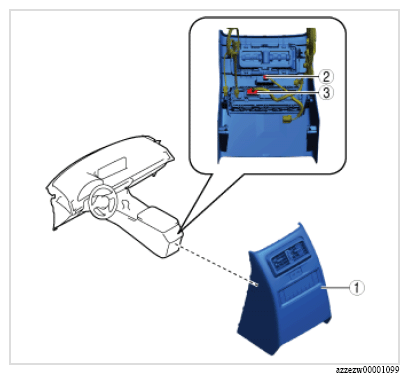

- Remove using the procedure shown in the figure.
PART NAME DESCRIPTION
| Step | Part name | Applicable condition |
|---|---|---|
| 1 | Console panel (See Console panel removal note ). |
- |
| 2 | Connector | - |
| 3 | Connector | With rear climate control unit |
