Remove Capsule Cover: Notes

  1. Remove in the order indicated in the table.

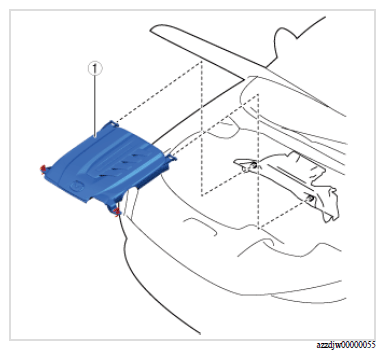

G16704332Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Capsule cover
(See CAPSULE COVER REMOVAL NOTE )
