Remove Driver-side Front Buckle: Notes

WARNING:

Handling the from seat (side air bag module) improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the front seat (side air bag module). (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).

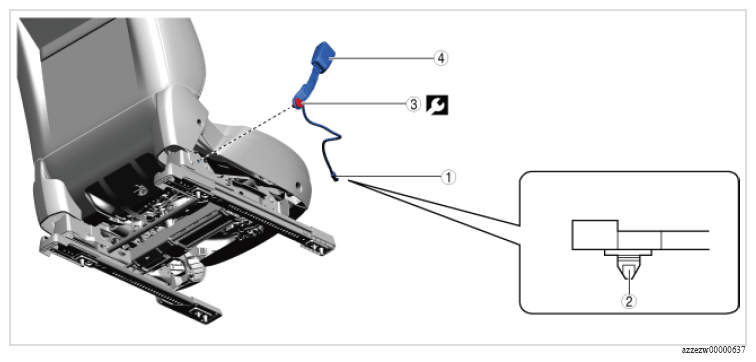

Fig 1: Driver-Side Front Buckle, Connector, Clip And Bolts With Torque Specification

G16712087

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name	Applicable condition
1	Connector	-	-
2	Clip	With clip	-
3	Bolt	-	56.5 N.m {5.75 kgf.m, 41.6 ft.lbf}
4	Front buckle (See Front buckle installation note ).	-	-
