Remove Front Console Box: Notes

NOTE:
  • If the front console box is replaced, remove the front accessory socket.

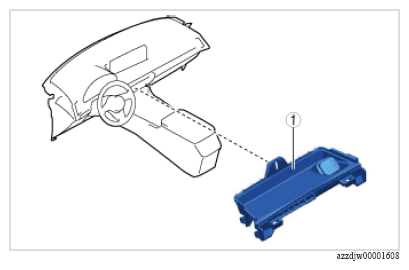

  1. Remove using the procedure shown in the figure.
    G16708889Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Front console box
    (See FRONT CONSOLE BOX REMOVAL NOTE ).
