Perform Pre-engine Component Unloading Procedure

1. Remove in the order indicated in the table.

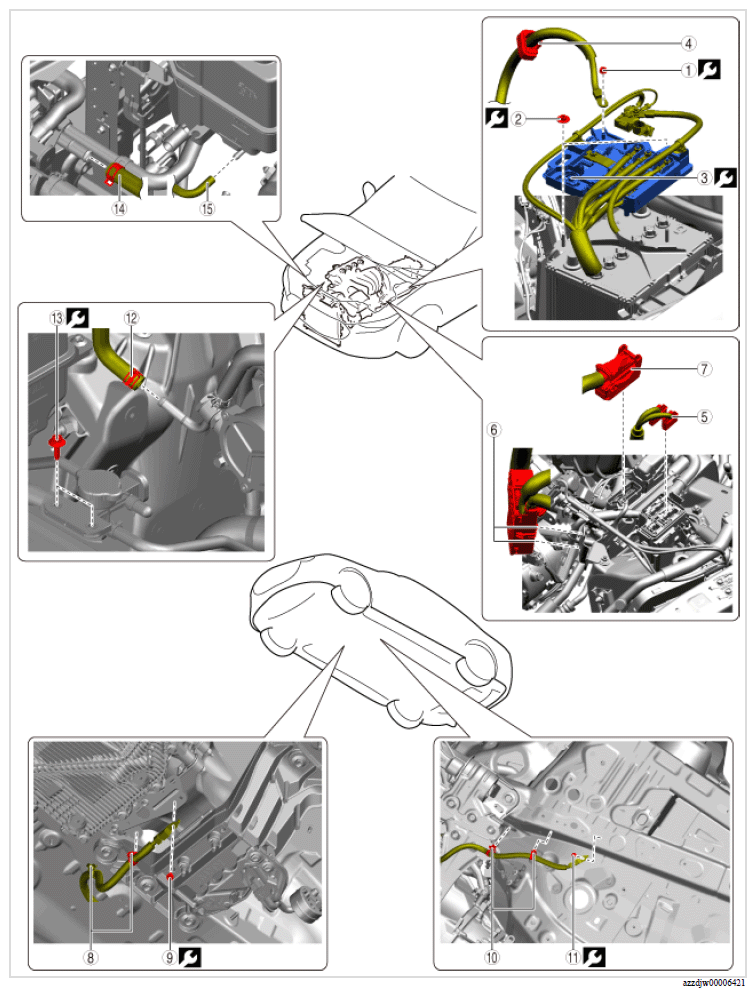

Fig 1: Engine Components Location With Torque Specifications (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Nut	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Nut	9.5 N.m {95 kgf.cm, 82 in.lbf}
3	Bolt	5 N.m {51 kgf.cm, 44 in.lbf}
4	Clip	-
5	Connector	-
6	Clip	-
7	Connector	-
8	Clip	-
9	Bolt	11 N.m {110 kgf.cm, 95 in.lbf}
10	Clip	-
11	Bolt	11 N.m {110 kgf.cm, 95 in.lbf}
12	Hose	-
13	Bolt	9.5 N.m {95 kgf.cm, 82 in.lbf}
14	Hose	-
15	Hose	-

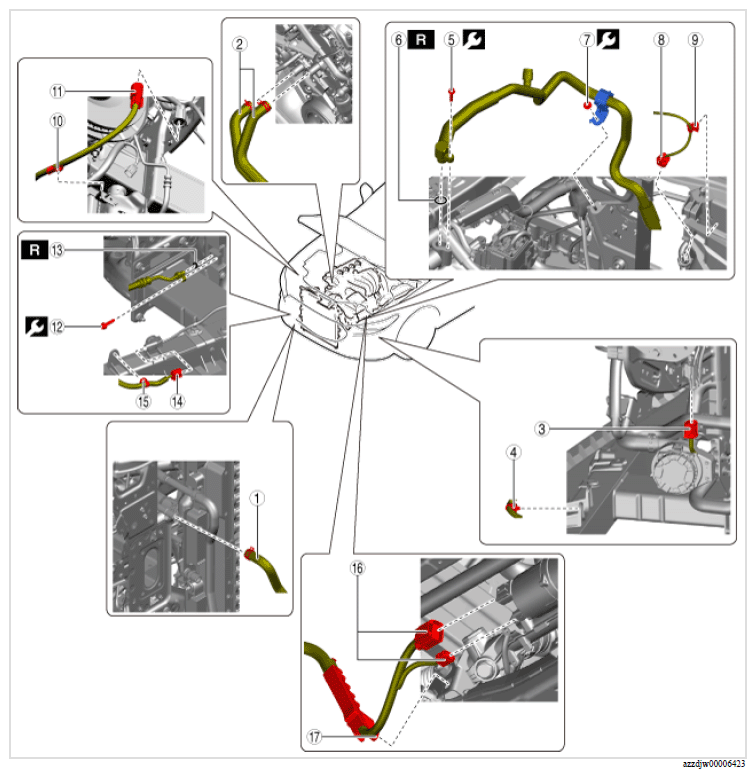

Fig 2: Engine Components Location With Torque Specifications (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Hose	-	-
2	Hose	-	-
3	Connector	-	-
4	Clip	-	-
5	Bolt	-	9.5 N.m {95 kgf.cm, 82 in.lbf}
6	O-ring	Replacement part	-
7	Nut	-	11 N.m {110 kgf.cm, 95 in.lbf}
8	Connector	-	-
9	Clip	-	-
10	Clip	-	-
11	Connector	-	-
12	Bolt	-	9.5 N.m {95 kgf.cm, 82 in.lbf}
13	O-ring	Replacement part	-
14	Connector	-	-
15	Clip	-	-
16	Connector	-	-
17	Clip	-	-

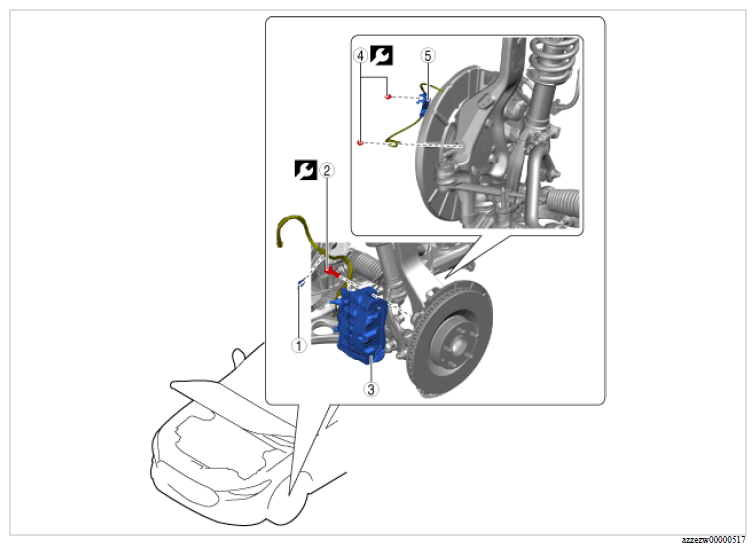

Fig 3: Engine Components Location With Torque Specifications (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Clip	-
2	Bolt	164 N.m {16.7 kgf.m, 120.95 ft.lbf}
3	Front brake caliper component	-
4	Bolt	9.5 N.m {95 kgf.cm, 82 in.lbf}
5	Front ABS wheel-speed sensor	-
