Remove Driver Side Front Deflector: Notes

Remove using the procedure shown in the figure.

The figure shows the left side (same as right side).

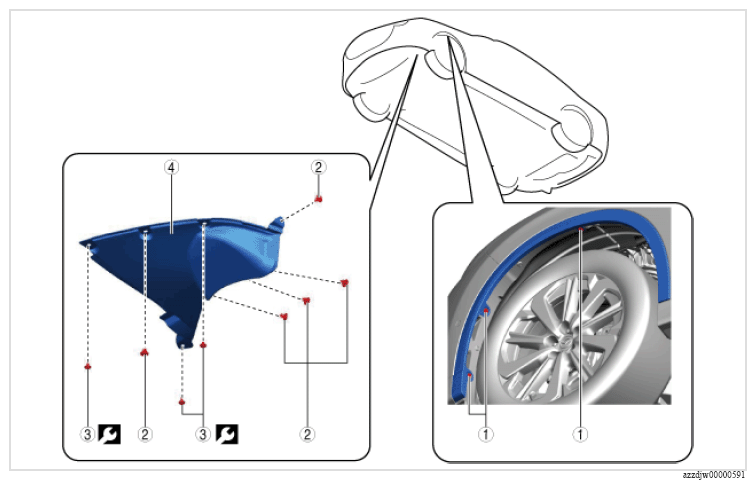

Fig 1: Driver Side Front Deflector Fastener And Screw With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Fastener	-
2	Fastener (See Fastener removal note ).	-
3	Screw	2 N.m {20 kgf.cm, 17 in.lbf}
4	Front deflector	-
