Generator Disassembly/Assembly [VIN Y]: Notes

49 L018 002 Serrated bit

Courtesy of MAZDA MOTORS CORP.

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

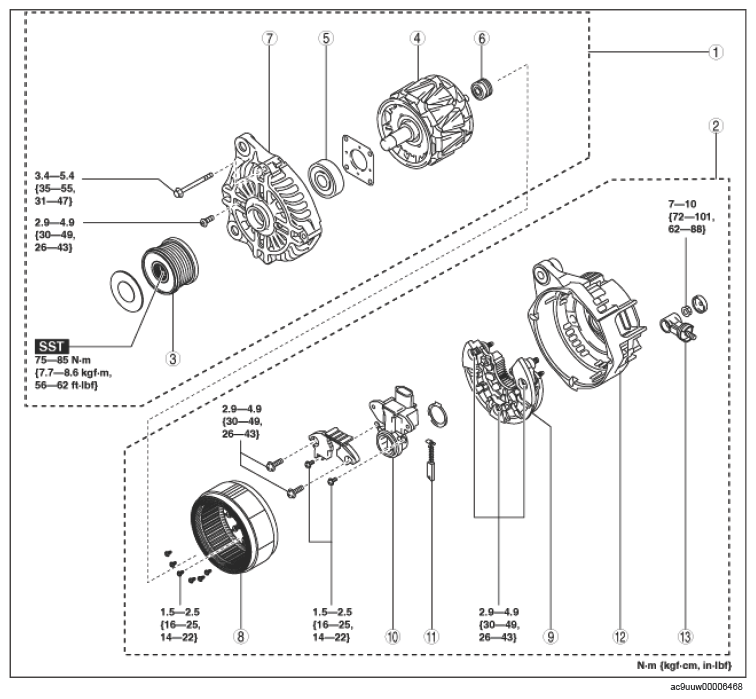

Fig 1: Generator Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

GENERATOR COMPONENT OPERATIONS

Component No.	Refer to
1	Rotor component
2	Stator coil component
3	Pulley (See Pulley Disassembly/Assembly Note .)
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator coil
9	Rectifier
10	Brush holder
11	Brush (See Brush Disassembly Note .) (See Brush Assembly Note .)
12	Rear cover
13	Terminal B component
