Temperature Switch

Remove plug from relay box and connect test light to terminals 5 and 8. Test light should be lit above 77°F oil temperature.

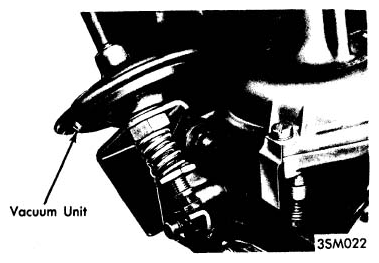

Fig 1: THROTTLE LIFT VACUUM GOVERNOR

Courtesy of MERCEDES-BENZ USA

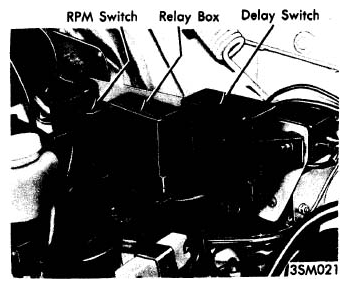

Fig 2: RELAY & SWITCH LOCATIONS

Courtesy of MERCEDES-BENZ USA
