Checking 212°F Temperature Switch

Disconnect plug from 12 prong relay box and connect test light to terminals 4 and 8. Switch on ignition. Test light should be lit above 212°F coolant temperature.

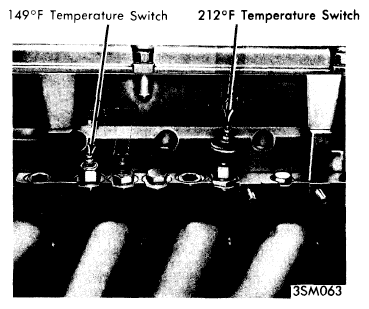

Fig 1: Coolant Temperature Switches
G09309358Courtesy of MERCEDES-BENZ USA
