Checking Ignition Switch-Over

Disconnect plug of 212°F coolant temperature switch and connect to ground. Timing should advance 11° and supplementary fan should switch on. If not, check ignition switch-over valve and/or replace 12 prong relay box.

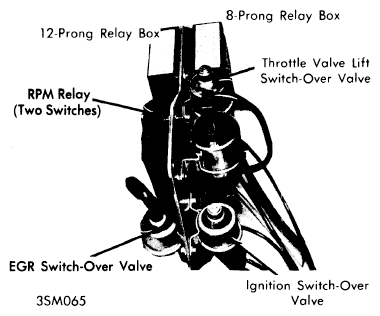

Fig 1: Relays & Vacuum Control Valves

Courtesy of MERCEDES-BENZ USA
