Automatic Altitude Compensating Device: Installation

Using previously removed shims, screw compensating device into place. Be sure vent tube is positioned at lowest point to drain off any possible condensation. Hold small nut and tighten large nut.

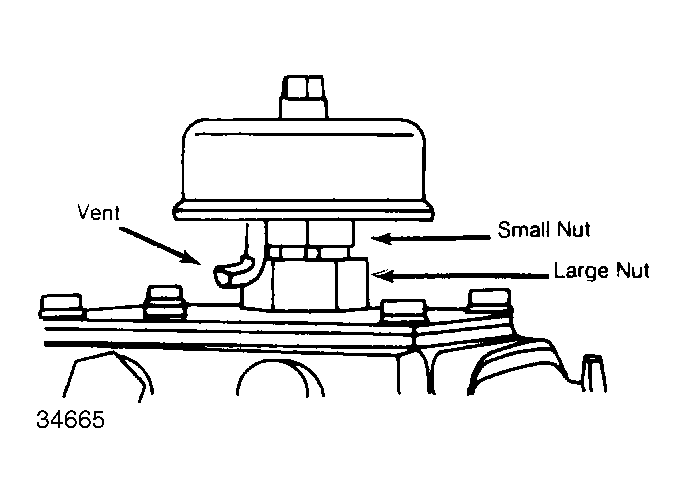

Fig 1: Altitude Compensating Device Removal
G34665
