Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

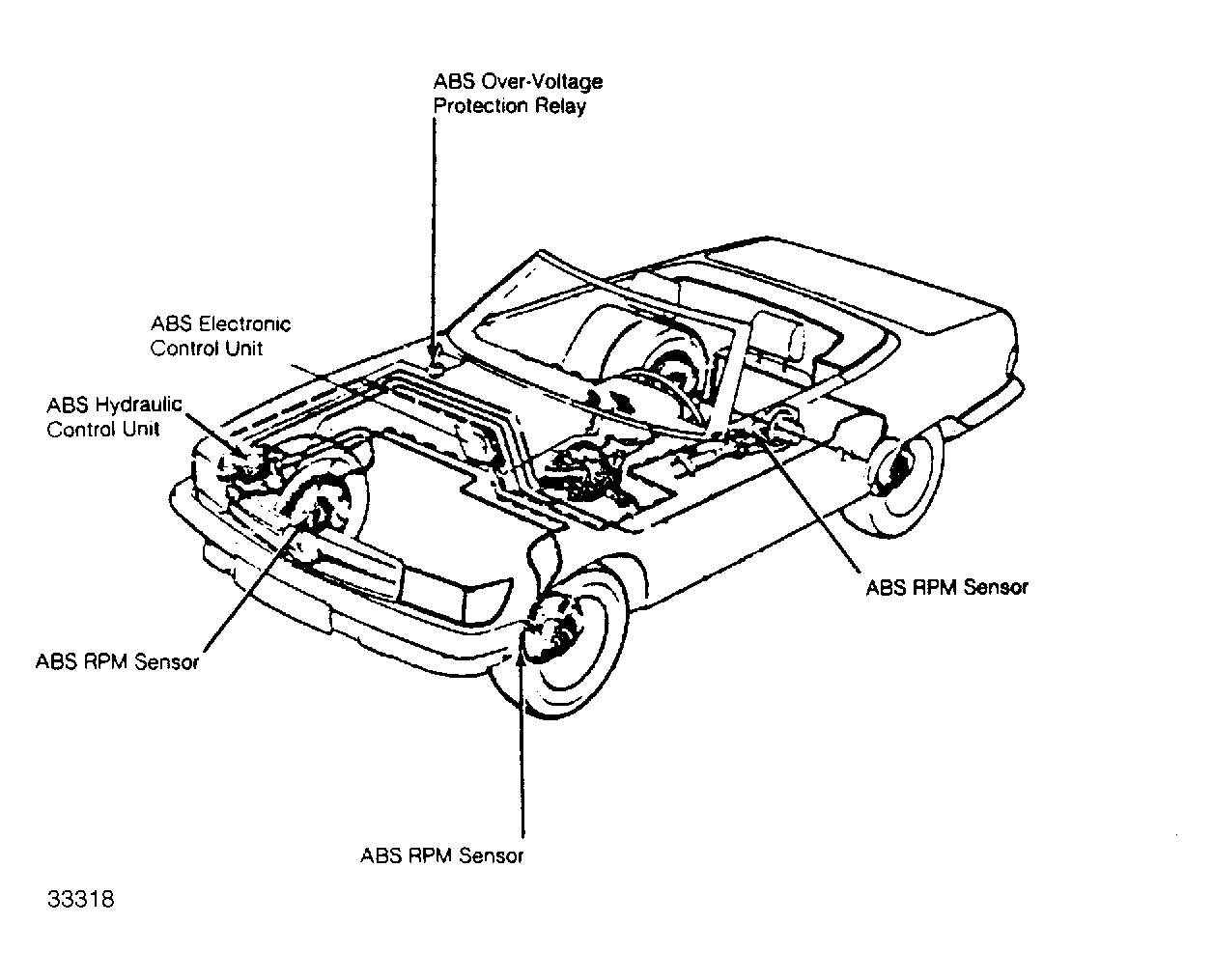

| ABS Electronic Control Unit | In engine compartment on right front side. See Figure . |
| A/C Blower Speed Control Unit | Behind glove box farthest from firewall. |
| A/C Temperature Control Unit | Behind glove box closest to firewall. |
| Cruise Control Amplifier | Between parking brake and brake support. |

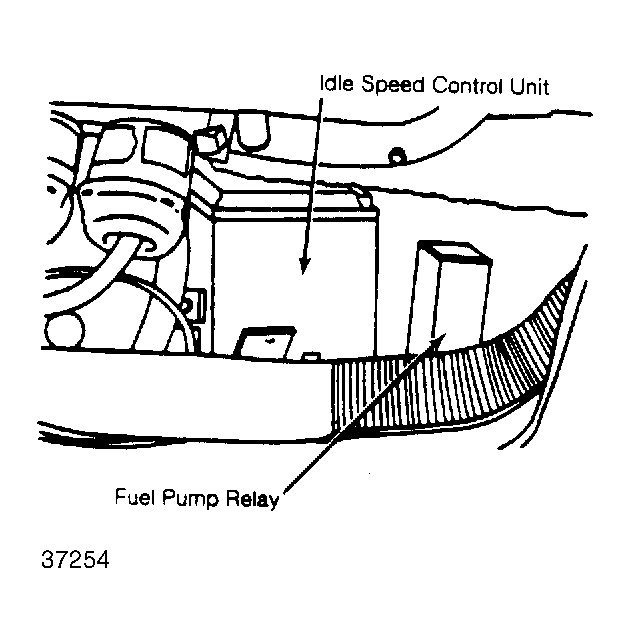

| Idle Speed Control Unit | Behind glove box above passenger's footwell. See Figure . |
| Ignition Switching Unit | Ahead of left front wheelwell. |

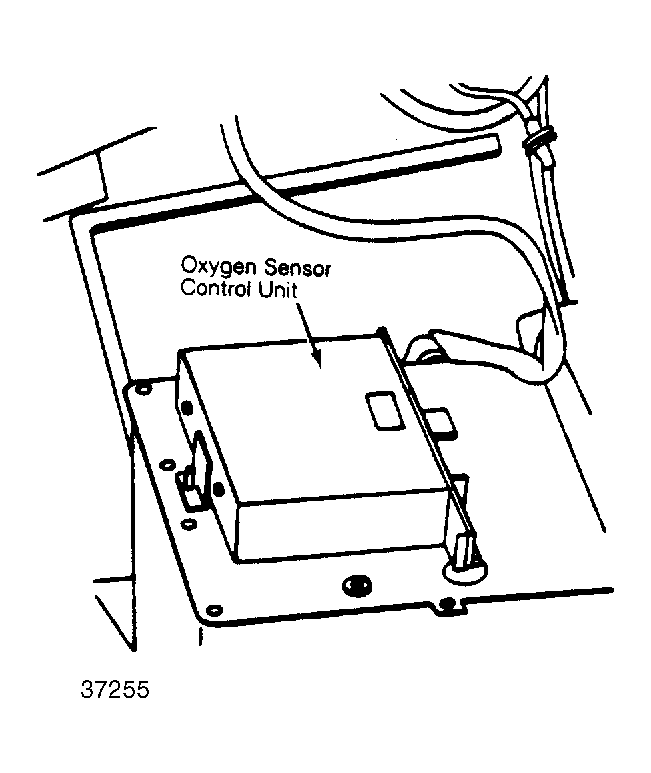

| Oxygen Sensor Control Unit | Under passenger's front kick panel. See Figure . |
| Warning Module | To right of parking brake support. |
| Wiper Interval Control Unit | Behind instrument cluster. |
