Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

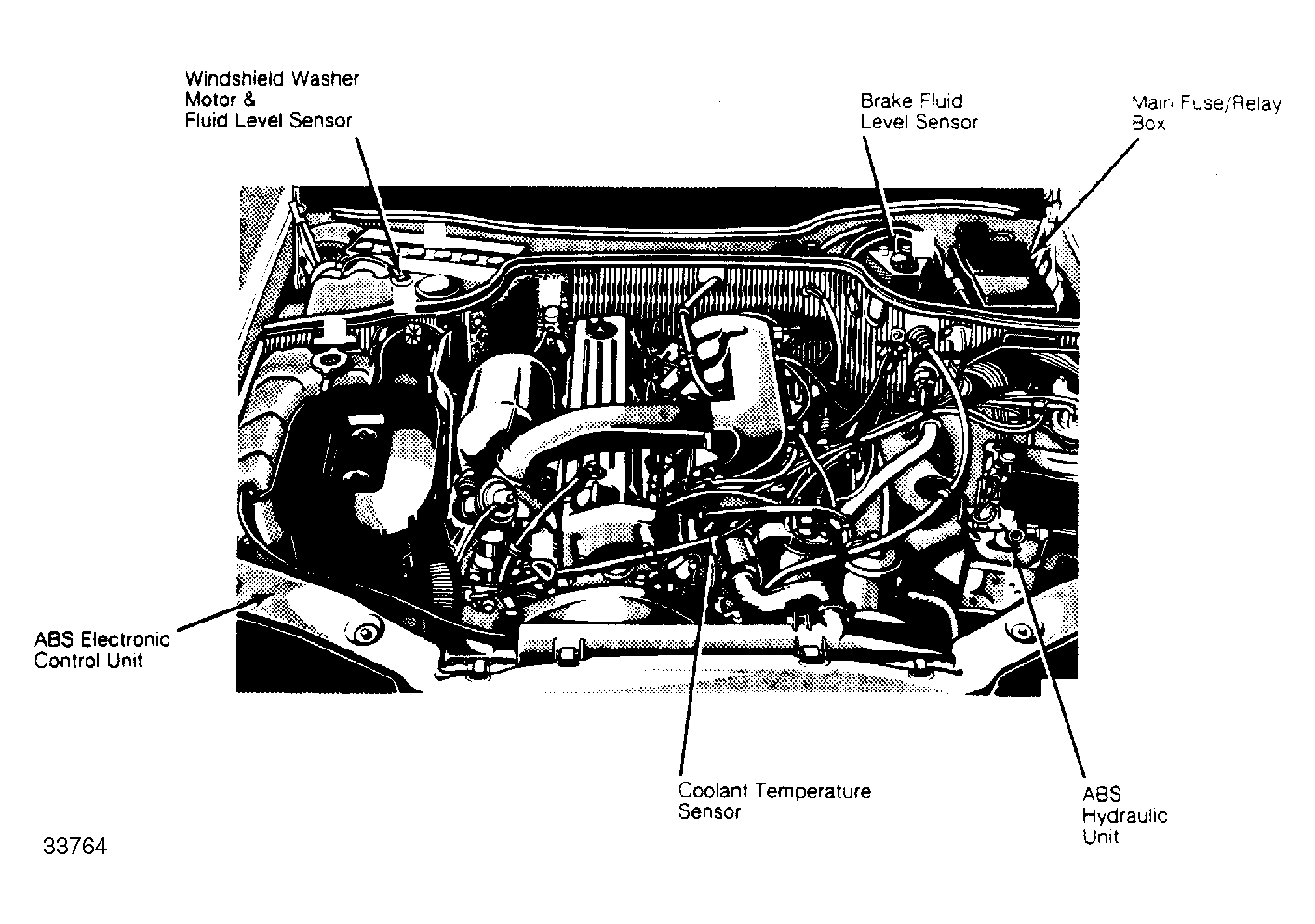

| ABS Electronic Control Unit | In engine compartment on right front side. See Figure. |
| ABS Hydraulic Unit | In engine compartment on left front side. |

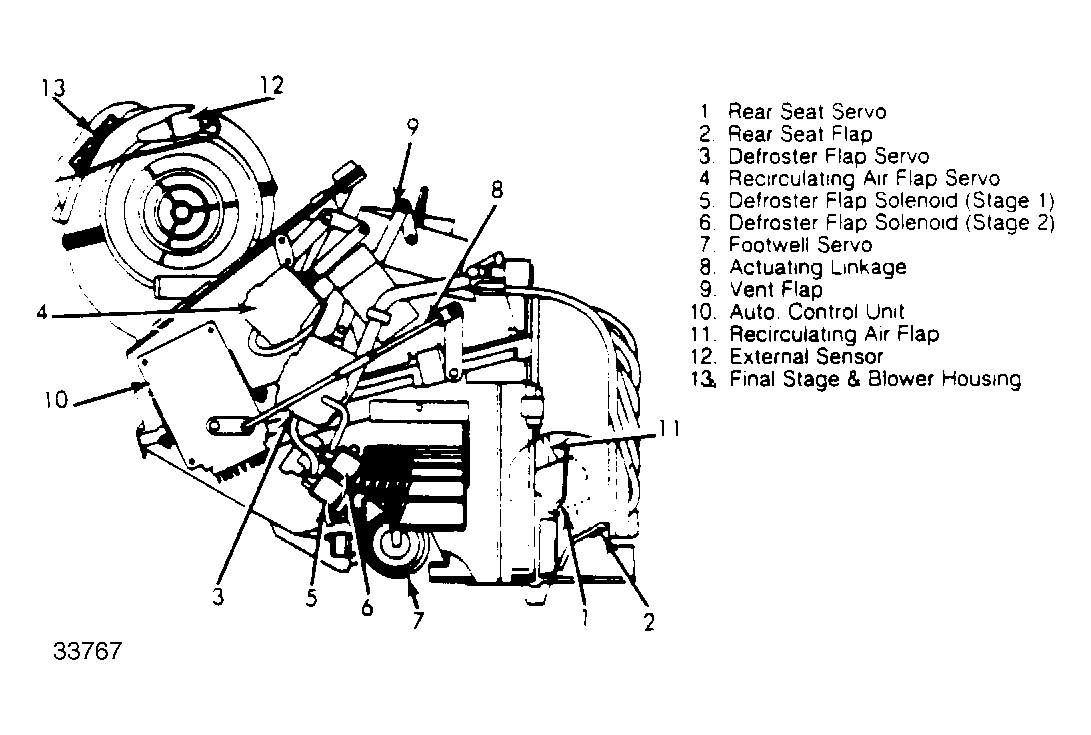

| A/C (Auto) Control Unit | On left side of blower housing. See Figure. |
| A/C Blower Speed Control Unit | On center of blower housing. See Figure. |
| A/C Engine Speed Control Unit | In engine compartment on left rear side. |
| A/C Temperature Control Unit | On right end of blower housing. |
| A/C Servo Control Unit | On left side of engine firewall. |
| A/C Switching Control Unit | Behind glovebox attached to blower housing. |
| Anti-Theft Control Unit | Under dash on right side. |
| Cruise Control Amplifier | Above left side of driver's footwell. |
| Key/Light Warning Module | Above left side of driver's footwell. |
