Wiring Diagrams

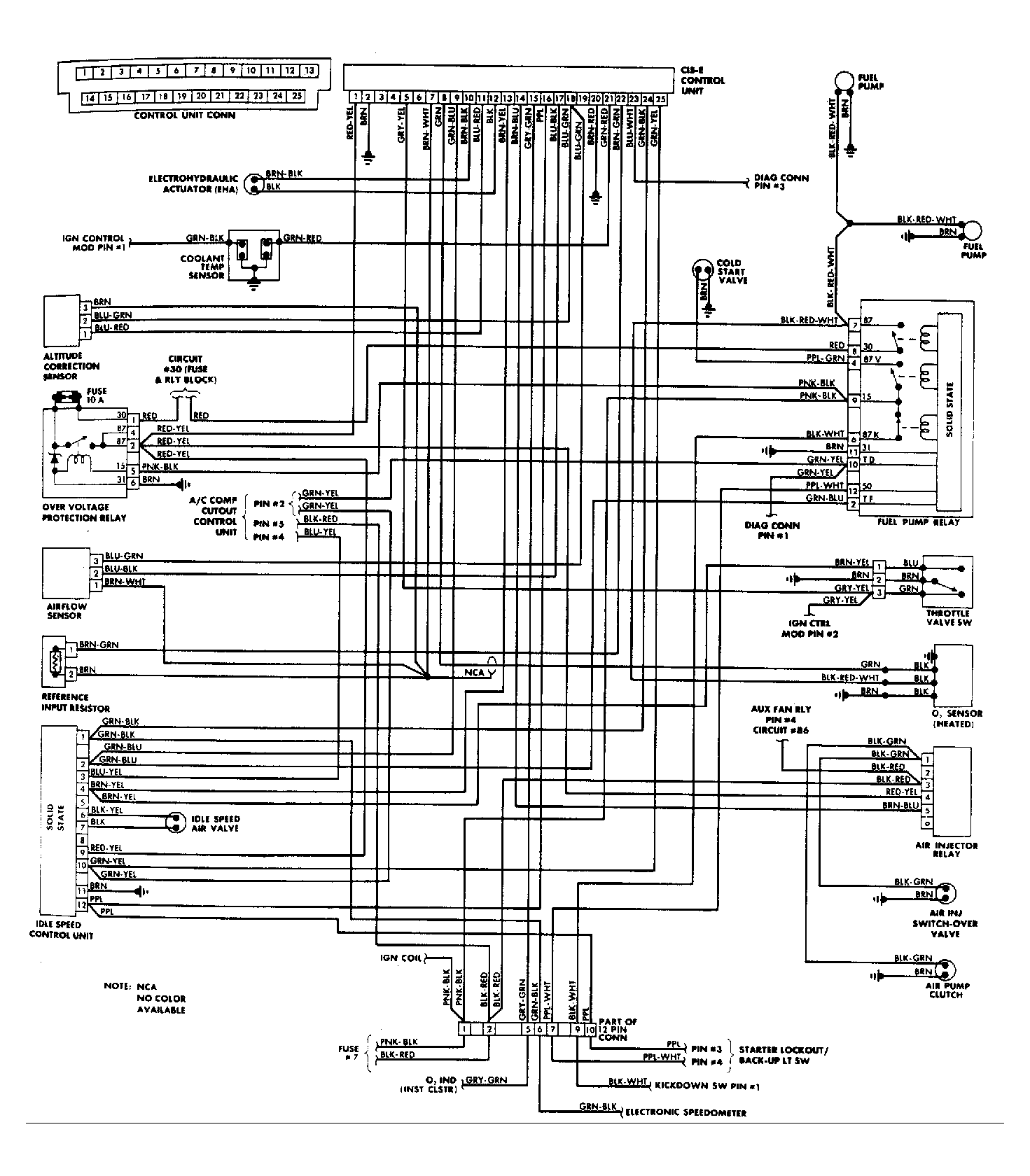

Fig 1: Wiring Diagram For Mercedes-Benz 420 & 560 Series (Except 560SL Model) CIS-E Fuel Injection System

G61609

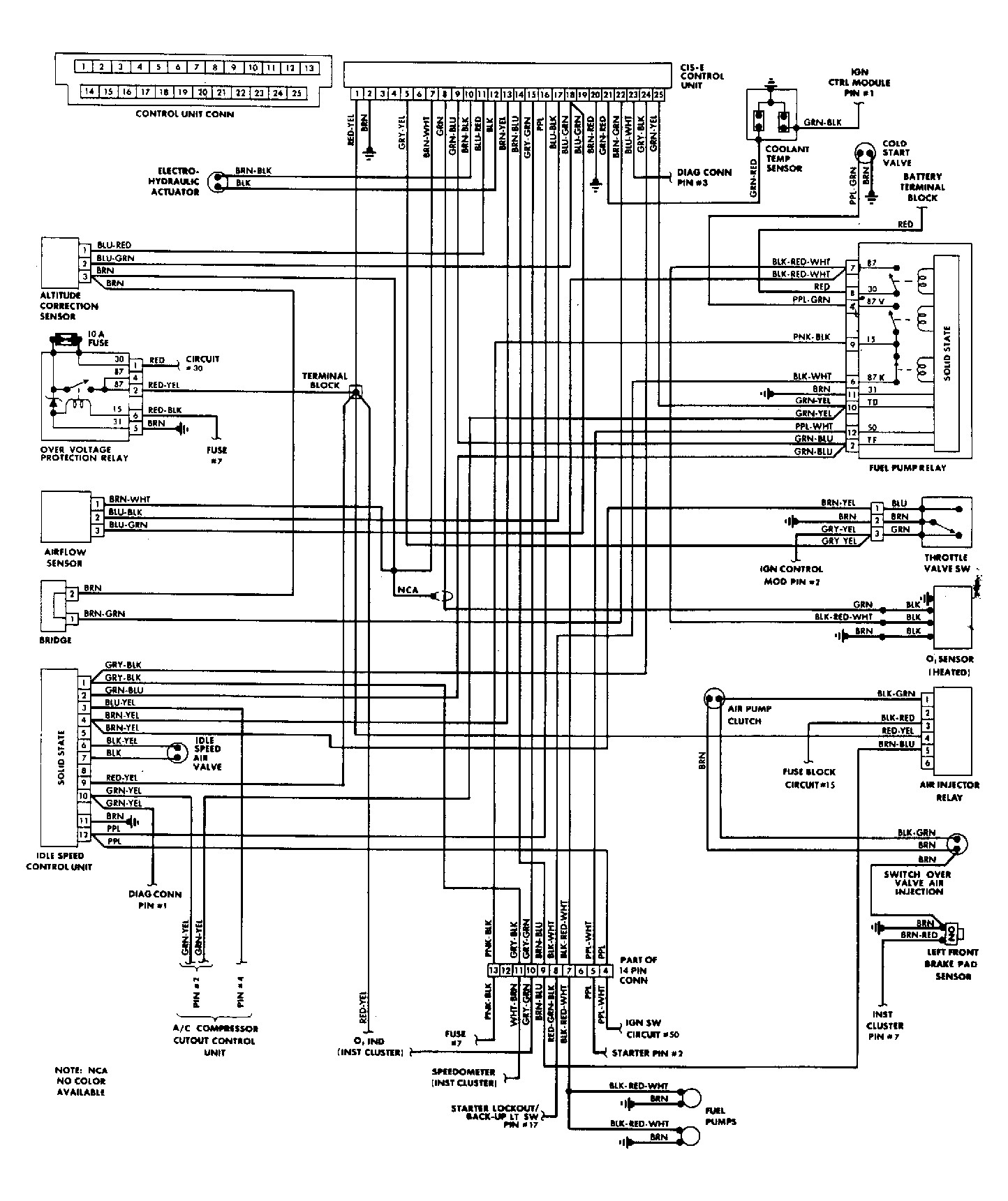

Fig 2: Wiring Diagram For Mercedes-Benz 560SL CIS-E Fuel Injection System

G61610
