Mercedes Benz
>>
1987
>>
300E
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
BOSCH Cis-E System
>>
Description
>>
Fuel Injection Layout
Fuel Injection Layout

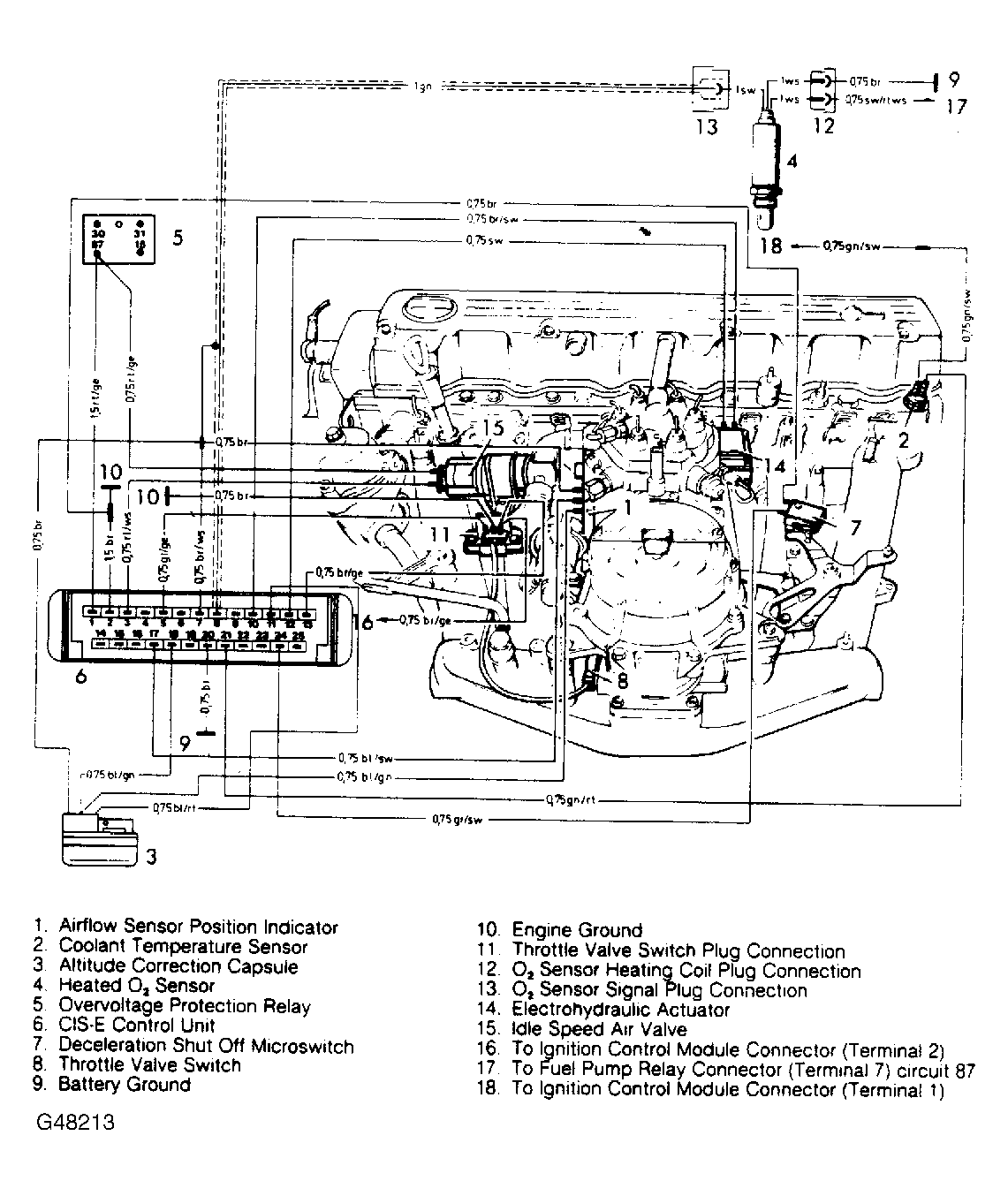

Fig 1: 190E 2.6L CIS-E Fuel Injection Layout

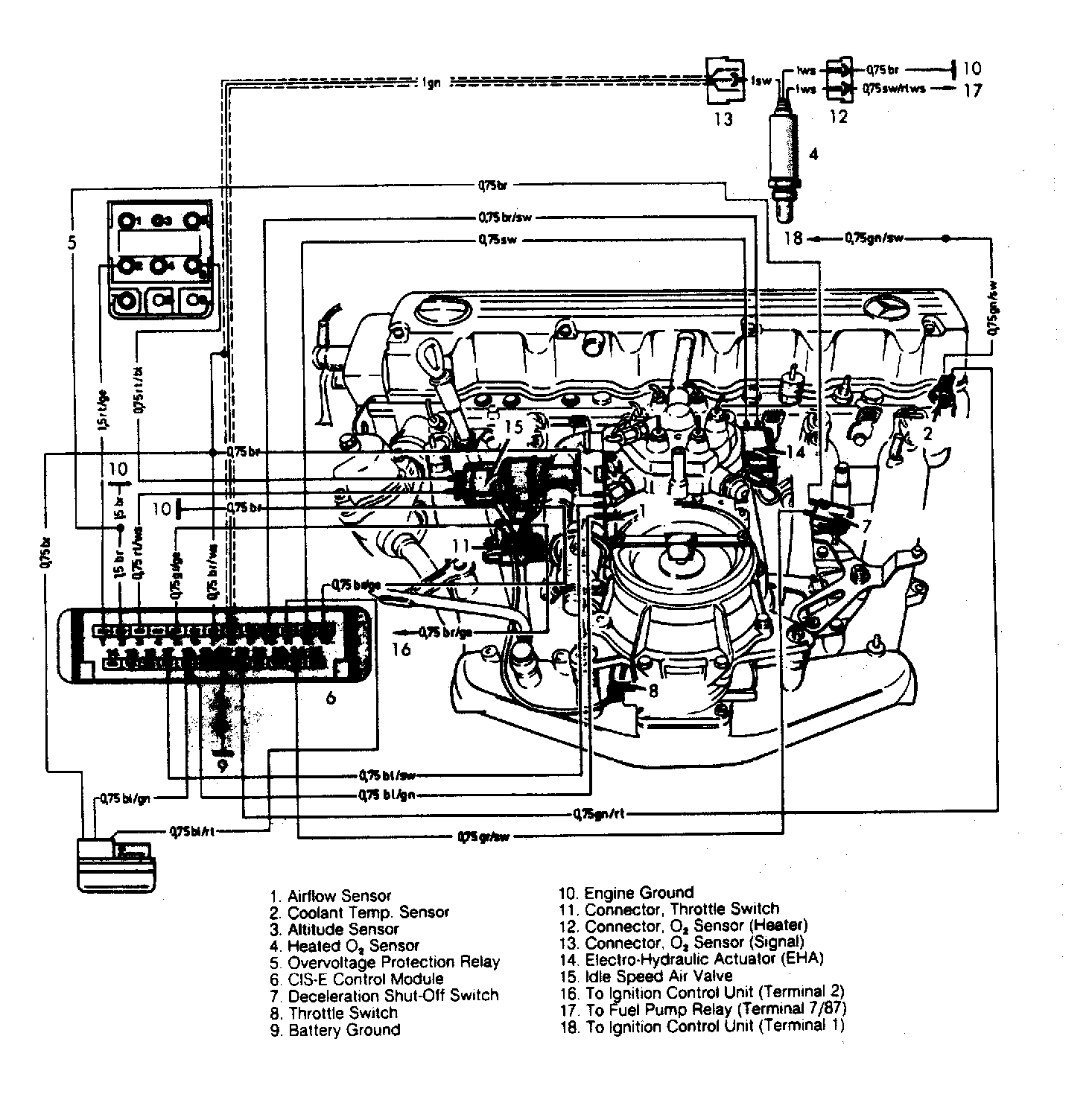

Fig 2: 300E CIS-E Fuel Injection Layout
