Wiring Diagrams

Fig 1: Wiring Diagram For 420 & 560 Series Except 560SL Model) CIS-E Fuel Injection System
G61609
Fig 2: Wiring Diagram For 560SL CIS-E Fuel Injection System
G61610

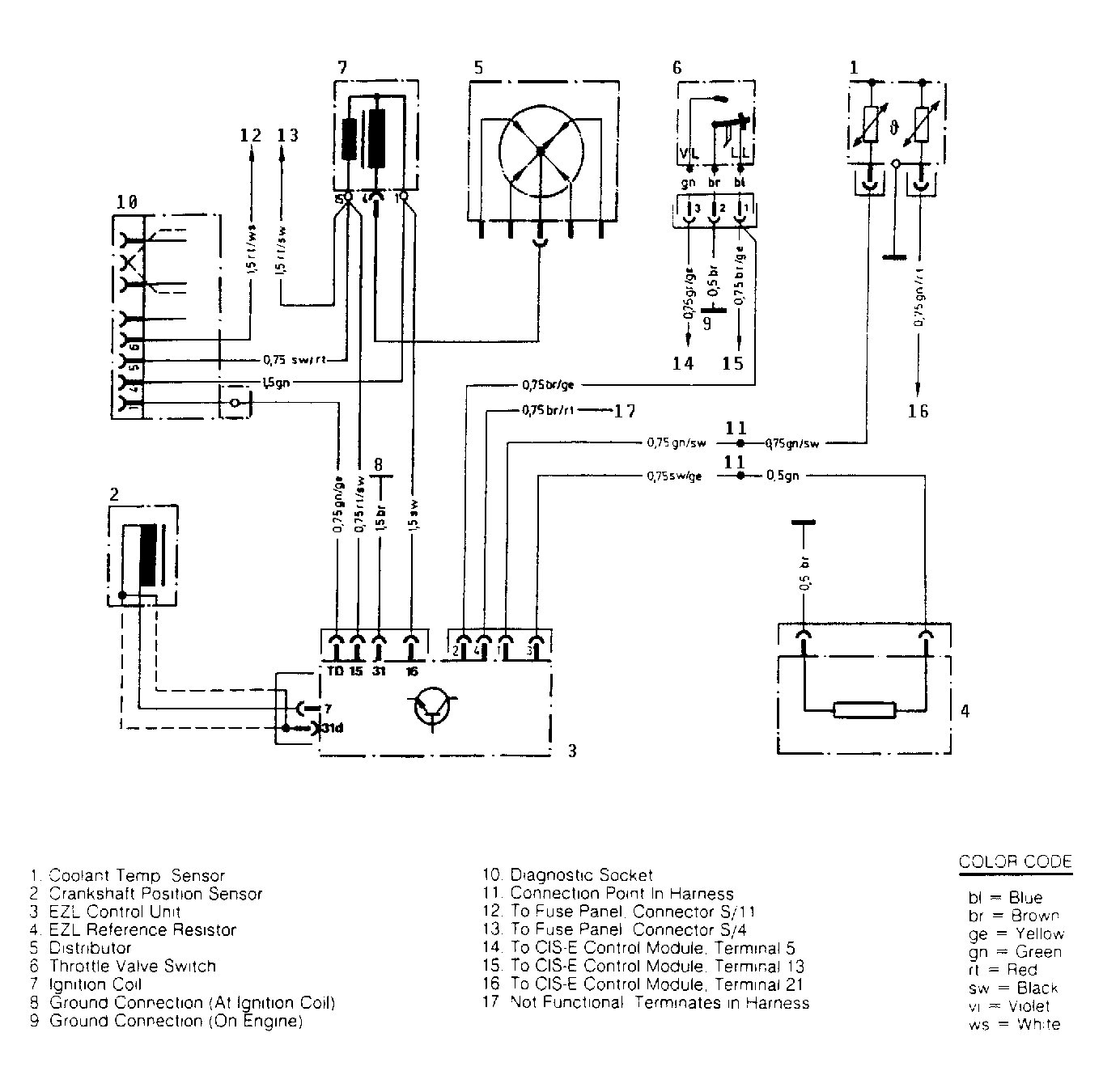

Fig 3: Wiring Diagram For Mercedes-Benz EZL Ignition System
G61611
