Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS
| Application | Specification | |||||
|---|---|---|---|---|---|---|
| 190 Series | ||||||

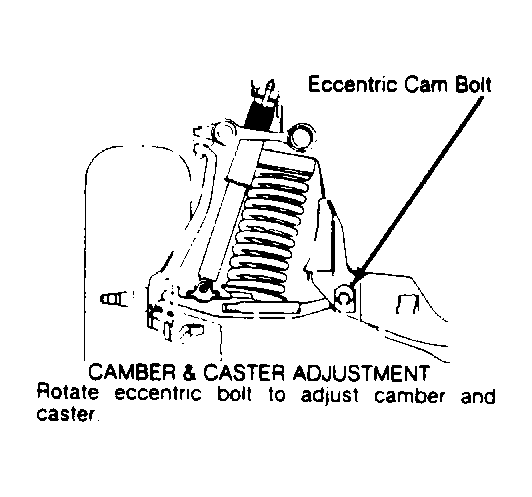

| Front (See Figure ) | ||||||
| Camber in Degrees | ||||||
| Fraction | 27/64 +/- 27/64 | |||||
| Decimal | .416 +/- .416 | |||||
| Caster in Degrees | ||||||
| Fraction | 10 1/8 +/- 7/8 | |||||
| Decimal | 10.125 +/- .875 | |||||
| Toe-In in Inches | ||||||
| Fraction | 11/64 +/- 5/64 | |||||
| Decimal | .166 +/- .083 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 21/64 +/- 11/64 | |||||
| Decimal | .333 +/- .166 | |||||
| Toe-Out in Turns | ||||||
| Inner | 20° | |||||
| Outer | 19 11/16° | |||||
| Steering Axis Inclination (SAI) | (1) | |||||
| Rear | ||||||
| Camber in Degrees | ||||||
| Fraction | 1/2 +/- 1/2 | |||||
| Decimal | .500 +/- .500 | |||||
| Caster in Degrees | ||||||
| Fraction | N/A | |||||
| Decimal | N/A | |||||
| Toe-In in Inches | ||||||
| Fraction | 13/64 +/- 5/64 | |||||
| Decimal | .208 +/- .083 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 27/64 +/- 11/64 | |||||
| Decimal | .416 +/- .166 | |||||
| Toe-Out in Turns | ||||||
| Inner | N/A | |||||
| Outer | N/A | |||||
| Steering Axis Inclination (SAI) | N/A | |||||
| 260E, 300D, 300E & 300TD | ||||||
| Front (See Figure ) | ||||||
| Camber in Degrees | ||||||
| Fraction | 0 +/- 1/4 | |||||
| Decimal | 0 +/- .250 | |||||
| Caster in Degrees | ||||||
| Fraction | 10 11/64 +/- 1/2 | |||||
| Decimal | 10.166 +/- .500 | |||||
| Toe-In in Inches | ||||||
| Fraction | 11/64 +/- 5/64 | |||||
| Decimal | .166 +/- .083 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 21/64 +/- 11/64 | |||||
| Decimal | .333 +/- .166 | |||||
| Toe-Out in Turns | ||||||
| Inner | 20° | |||||
| Outer | 19 3/4° | |||||
| Steering Axis Inclination (SAI) | (1) | |||||
| Rear | ||||||
| Camber in Degrees | ||||||
| Fraction | -1 1/2 +/- 1/2 | |||||
| Decimal | -1.500 +/- .500 | |||||
| Caster in Degrees | ||||||
| Fraction | N/A | |||||
| Decimal | N/A | |||||
| Toe-In in Inches | ||||||
| Fraction | 13/64 +/- 5/64 | |||||
| Decimal | .208 +/- .083 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 27/64 +/- 11/64 | |||||
| Decimal | .416 +/- .166 | |||||
| Toe-Out in Turns | ||||||
| Inner | N/A | |||||
| Outer | N/A | |||||
| Steering Axis Inclination (SAI) | N/A | |||||
| 300SDL, 420SEL, 560SEL, 560SEC | ||||||
| Front (See Figure ) | ||||||
| Camber in Degrees | ||||||
| Fraction | 0 +/- 1/4 | |||||
| Decimal | 0 +/- .250 | |||||
| Caster in Degrees | ||||||
| Fraction | 10 1/4 +/- 1/2 | |||||
| Decimal | 10.250 +/- .500 | |||||
| Toe-In in Inches | ||||||
| Fraction | 13/64 +/- 5/64 | |||||
| Decimal | .208 +/- .083 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 27/64 +/- 11/64 | |||||
| Decimal | .416 +/- .166 | |||||
| Toe-Out in Turns | ||||||
| Inner | (1) | |||||
| Outer | (1) | |||||
| Steering Axis Inclination (SAI) | (1) | |||||
| Rear | ||||||
| Camber in Degrees | ||||||
| Fraction | 1/2 +/- 11/64 | |||||
| Decimal | .500 +/- .166 | |||||
| Caster in Degrees | ||||||
| Fraction | N/A | |||||
| Decimal | N/A | |||||
| Toe-In in Inches | ||||||
| Fraction | 1/4 +/- 5/64 | |||||
| Decimal | .250 +/- .083 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 1/2 +/- 11/64 | |||||
| Decimal | .500 +/- .166 | |||||
| Toe-Out in Turns | ||||||
| Inner | N/A | |||||
| Outer | N/A | |||||
| Steering Axis Inclination (SAI) | N/A | |||||
| 560SL | ||||||
| Front (See Figure ) | ||||||
| Camber in Degrees | ||||||
| Fraction | -11/64 +/- 11/64 | |||||
| Decimal | -.166 +/- .250 | |||||
| Caster in Degrees | ||||||
| Fraction | 10 1/2 +/- 1/2 | |||||
| Decimal | 10.500 +/- .500 | |||||
| Toe-In in Inches | ||||||
| Fraction | 11/64 +/- 5/64 | |||||
| Decimal | .166 +/- .083 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 21/64 +/- 11/64 | |||||
| Decimal | .333 +/- .166 x |
|||||
| Toe-Out in Turns | ||||||
| Inner | 20° | |||||
| Outer | 17° | |||||
| Steering Axis Inclination (SAI) | (1) | |||||
| Rear | ||||||
| Camber in Degrees | ||||||
| Fraction | -1/2 +/- 1/2 | |||||
| Decimal | -.500 +/- .500 | |||||
| Caster in Degrees | ||||||
| Fraction | N/A | |||||
| Decimal | N/A | |||||
| Toe-In in Inches | ||||||
| Fraction | 13/64 +/- 11/64 | |||||
| Decimal | .208 +/- .166 | |||||
| Toe-In in Degrees | ||||||
| Fraction | 27/64 +/- 13/64 | |||||
| Decimal | .416 +/- .208 | |||||
| Toe-Out in Turns | ||||||
| Inner | N/A | |||||
| Outer | N/A | |||||
| Steering Axis Inclination (SAI) | N/A | |||||
|
||||||
