Trouble Code Diagnostic Charts

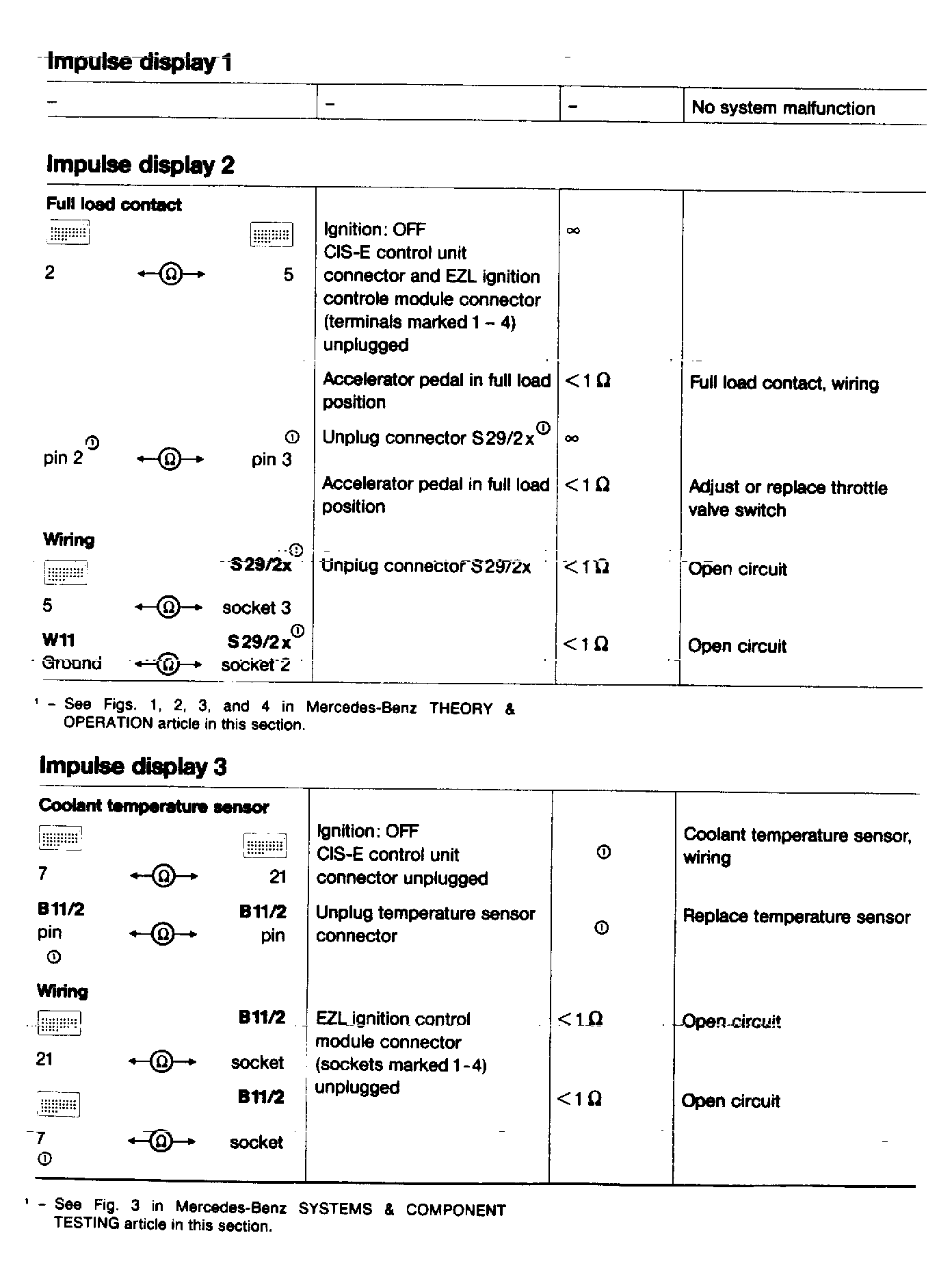

Fig 1: Diagnostic Chart for Codes 1, 2 and 3
G121444Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Diagnostic Chart for Codes 4 and 5
G121445Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

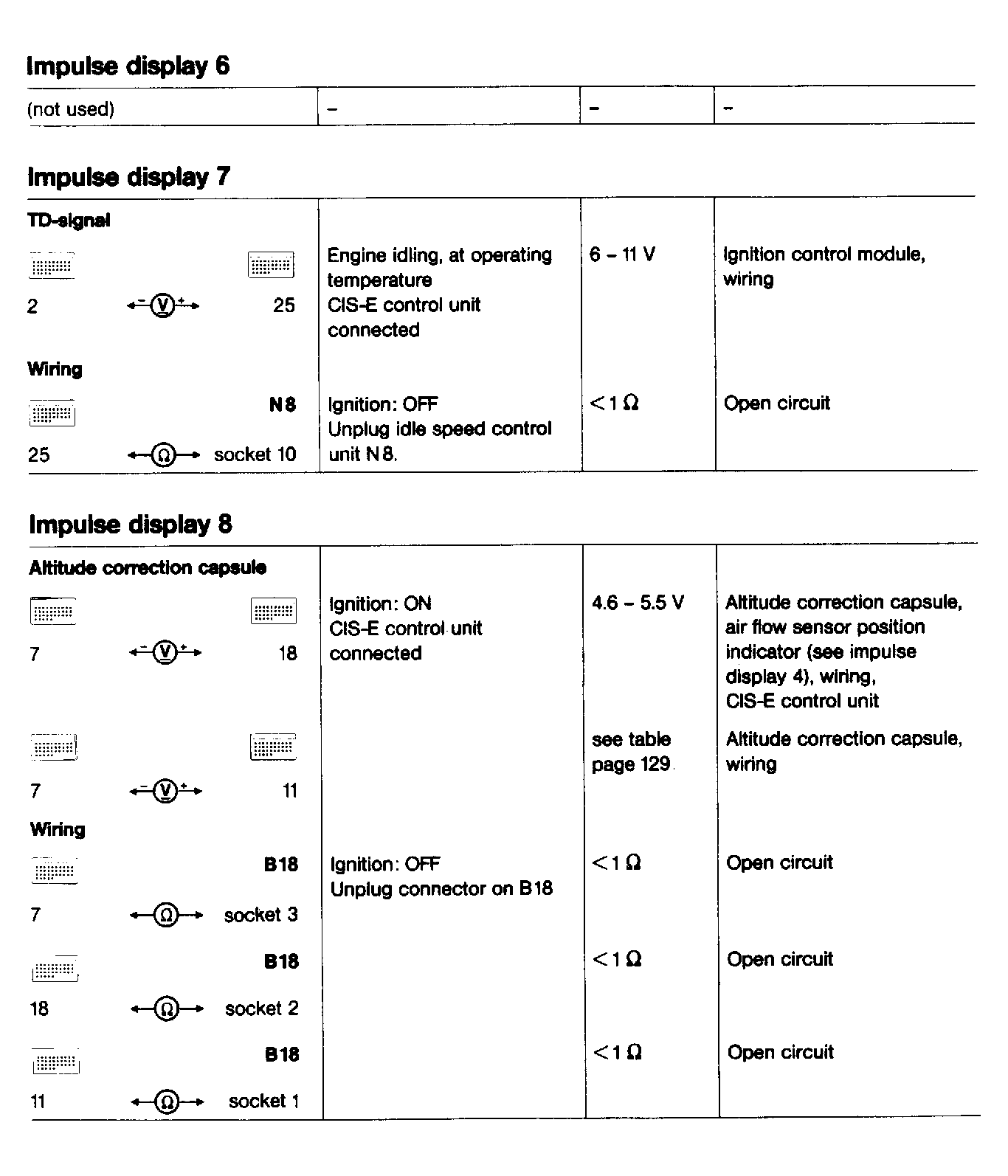

Fig 3: Diagnostic Chart for Codes 6, 7 and 8
G121446Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

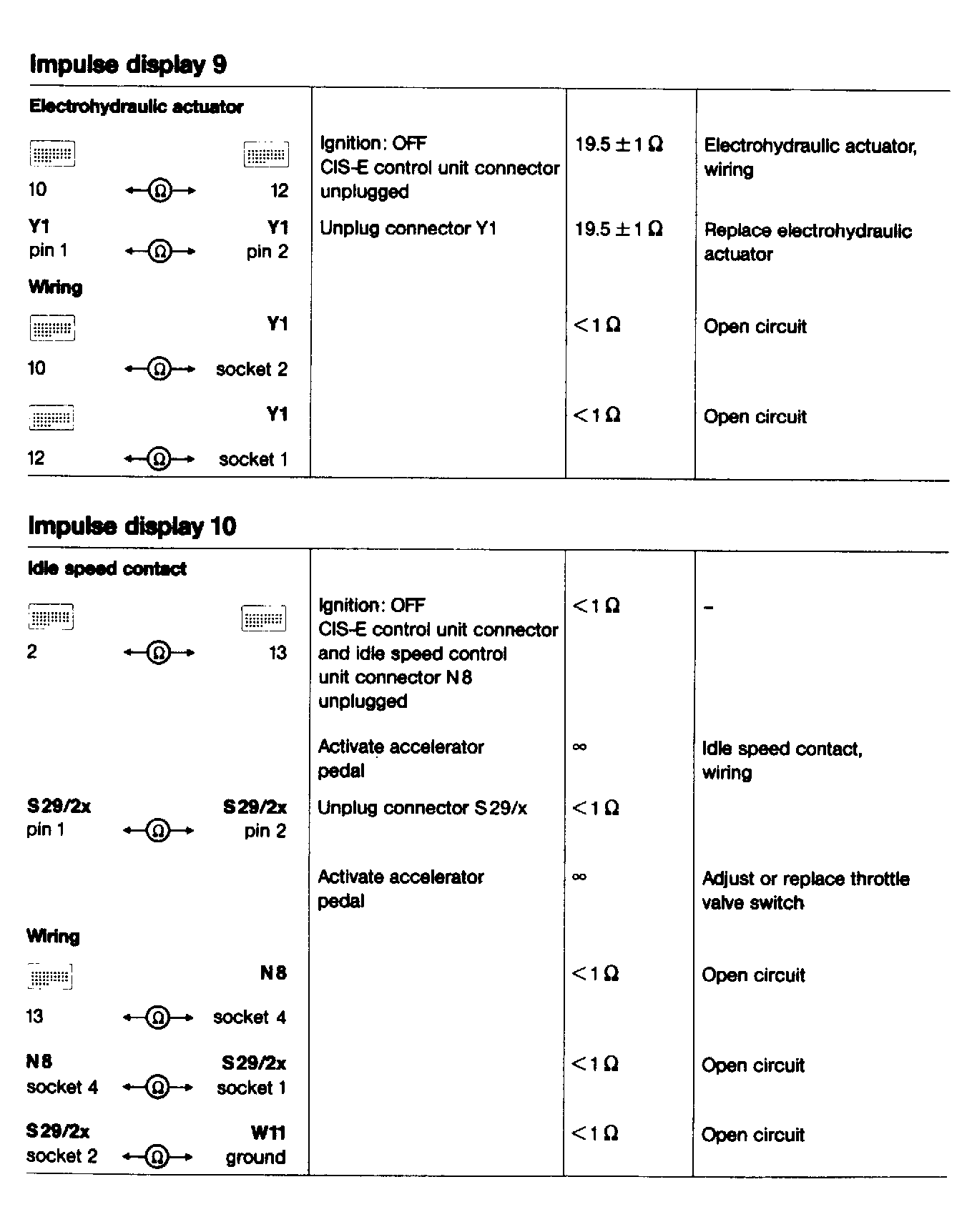

Fig 4: Diagnostic Chart for Codes 9 and 10
G121447Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Diagnostic Chart for Codes 11, and 12
G121448Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
