Wheel Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS

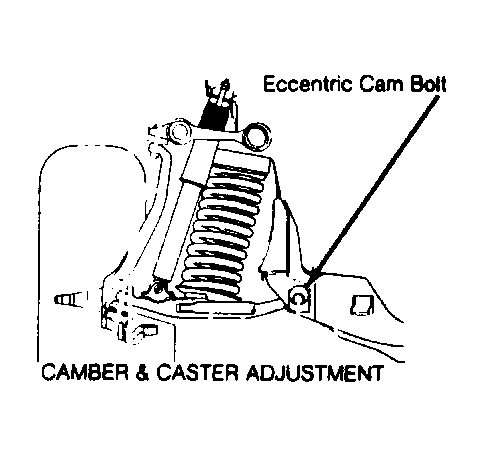

| Application | Specification: Fraction (Decimal) | ||
|---|---|---|---|
| Camber (Degrees) | |||
| 190 Series | -15/16 ± 3/32 (-.94 ± .16) | ||
| 260E & 300 Series | 0 ± 1/16 (0 ± .06) | ||
| 420SEL/560SEL/560SL | 0 ± 1/7 (0 ± .13) | ||
| 560SEC | -5/16 ± 5/32 (-.31 ± .16) | ||
| Caster (Degrees) | |||
| 190 Series/560SEC | 10 1/2 ± 1/2 (10.50 ± .50) | ||
| 260E & 300 Series | 10 5/32 ± 1/2 (10.16 ± .50) | ||
| 420SEL/560SEL/560SL | 9 3/4 ± 1/2 (9.75 ± .50) | ||
| Toe-In (Inches) | |||
| 190 Series | |||
| Front | 9/64 ± 1/32 (.14 ± .03) | ||
| Rear | 7/32 ± 1/32 (.22 ± .03) | ||
| 260E & 300 Series | |||
| Front | 3/32 ± 1/32 (.09 ± .03) | ||
| Rear | 7/32 ± 1/32 (.22 ± .03) | ||
| 420SEL/560SEL/560SL | |||
| Front | 3/16 ± 1/32 (.19 ± .03) | ||
| Rear | 3/32 ± 1/32 (.09 ± .02) | ||
| 560SEC | |||
| Front | 3/64 ± 1/64 (.05 ± .02) | ||
| Rear | 3/32 ± 1/64 (.09 ± .02) | ||
| Toe-In (Degrees) | |||
| 190 Series | |||
| Front | 9/32 ± 1/16 (.28 ± .06) | ||
| Rear | 7/16 ± 1/16 (.44 ± .06) | ||
| 260E & 300 Series | |||
| Front | 3/7 ± 1/16 (.38 ± .06) | ||
| Rear | 7/16 ± 1/16 (.44 ± .06) | ||
| 420SEL/560SEL/560SL | |||
| Front | 3/7 ± 1/16 (.38 ± .06) | ||
| Rear | 3/16 ± 1/32 (.19 ± .03) | ||
| 560SEC | |||
| Front | 3/32 ± 1/32 (.09 ± .03) | ||
| Rear | 3/16 ± 1/32 (.19 ± .03) | ||
| Toe-Out On Turns (Degrees) | |||
| Inner | 20° | ||
| Outer | 19 11/16° | ||
