Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Protective Cut-Out Unit | On left side of engine compartment. |
| ABS Control Unit | In engine compartment, behind battery. |

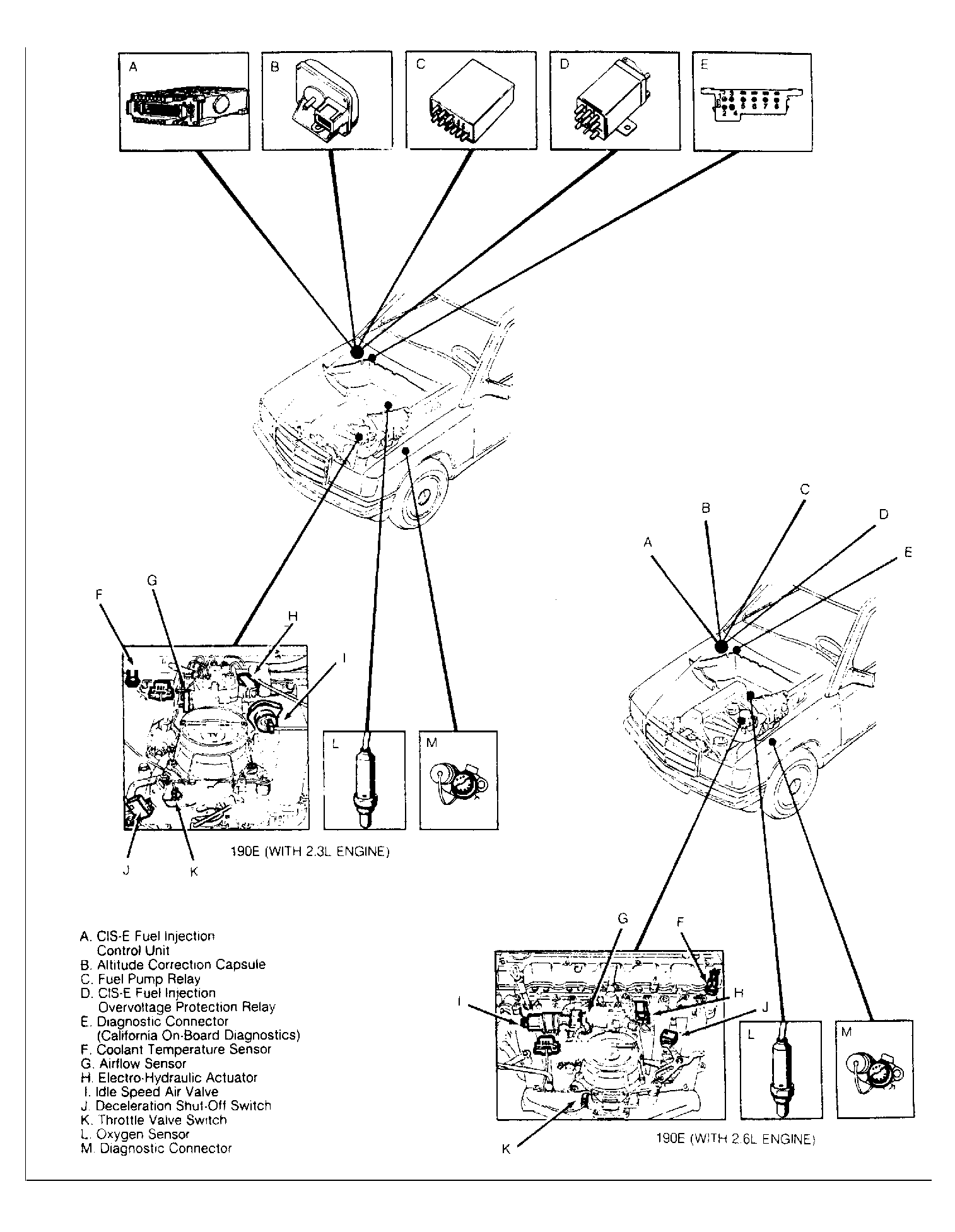

| CIS-E Fuel Injection Control Unit (See View "A") | On right side of firewall, near battery. See Figure . |
| Cruise Control Unit | Under right side of dash, behind kick panel. |
| EGR Control Unit | Above right side of passenger's footwell. |
| Electronic Idle Speed Controller (Diesel) | On right side of firewall, near battery. |
| Heated Seats Control Units | Behind cover, under left and right footwells. |
| Illumination Control Unit | Under left side of dash, below instrument cluster. |
| Key/Light Warning Module | To right of parking brake support. |
| Overvoltage Protection Control Unit | On left side of engine compartment. |
| Power Seat Control Unit | Under driver's seat. |

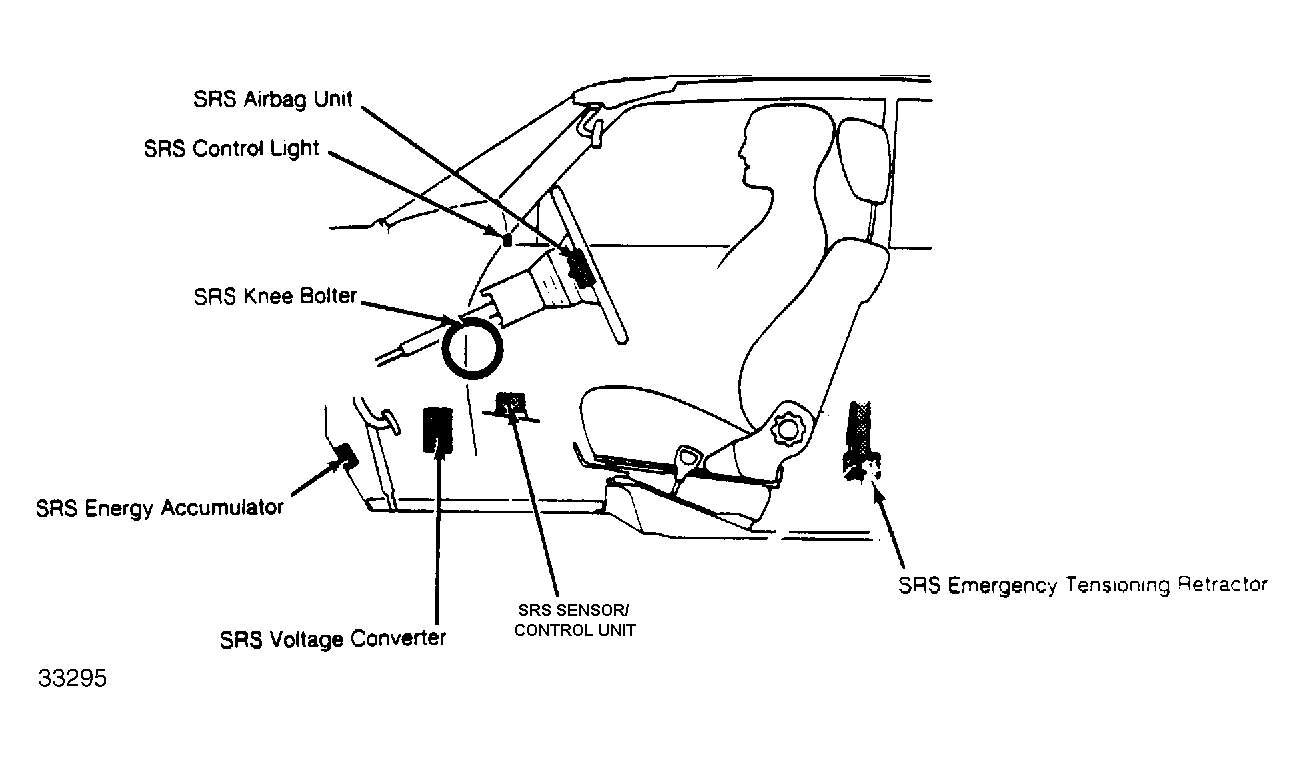

| SRS Control Unit/Sensor | Under center console, forward of shifter, bolted to transmission tunnel. See Figure . |
| Switch Control Unit | On right side of firewall. |
| Transistorized Ignition Control Unit | On front left side of engine compartment. |
| Wiper Interval Control Module | Behind left side of instrument cluster. |
