Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

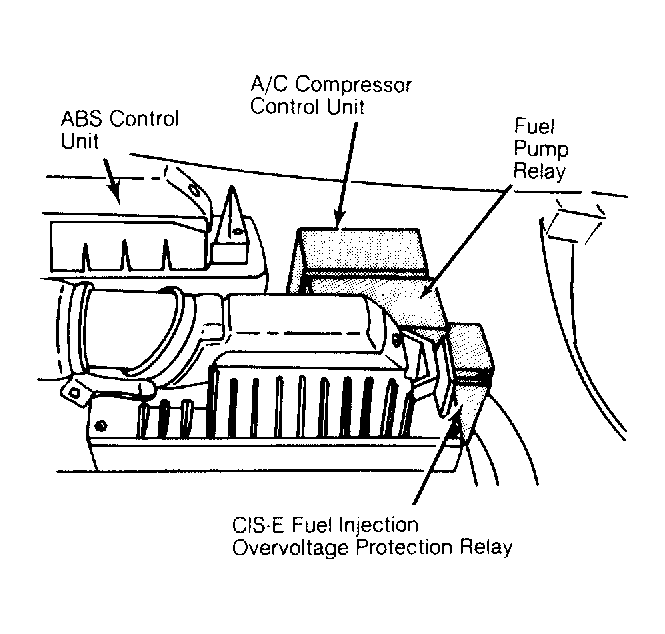

| ABS Control Unit | Behind battery and behind CIS-E control unit. See Figure . | |
| A/C Compressor Control Unit | Behind battery, and behind fuel pump relay. See Figure . | |
| A/C Temperature Control Unit | Under right side of dash, behind glove box. | |
| Anti-Theft Alarm Control Unit | Behind right side of passenger foot rest, near kick panel. | |
| Catalytic Converter Warning Control Unit | Under left dash, left of brake pedal. | |
| CIS-E Fuel Injection Control Unit | ||

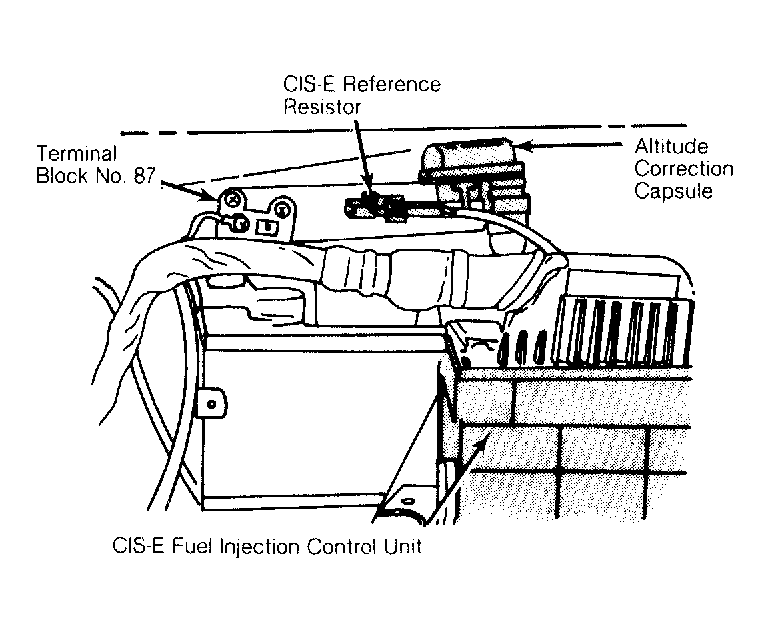

| 300 E, CE, TE (See View "A") | Near right side of firewall, directly behind battery. See Figure . | |

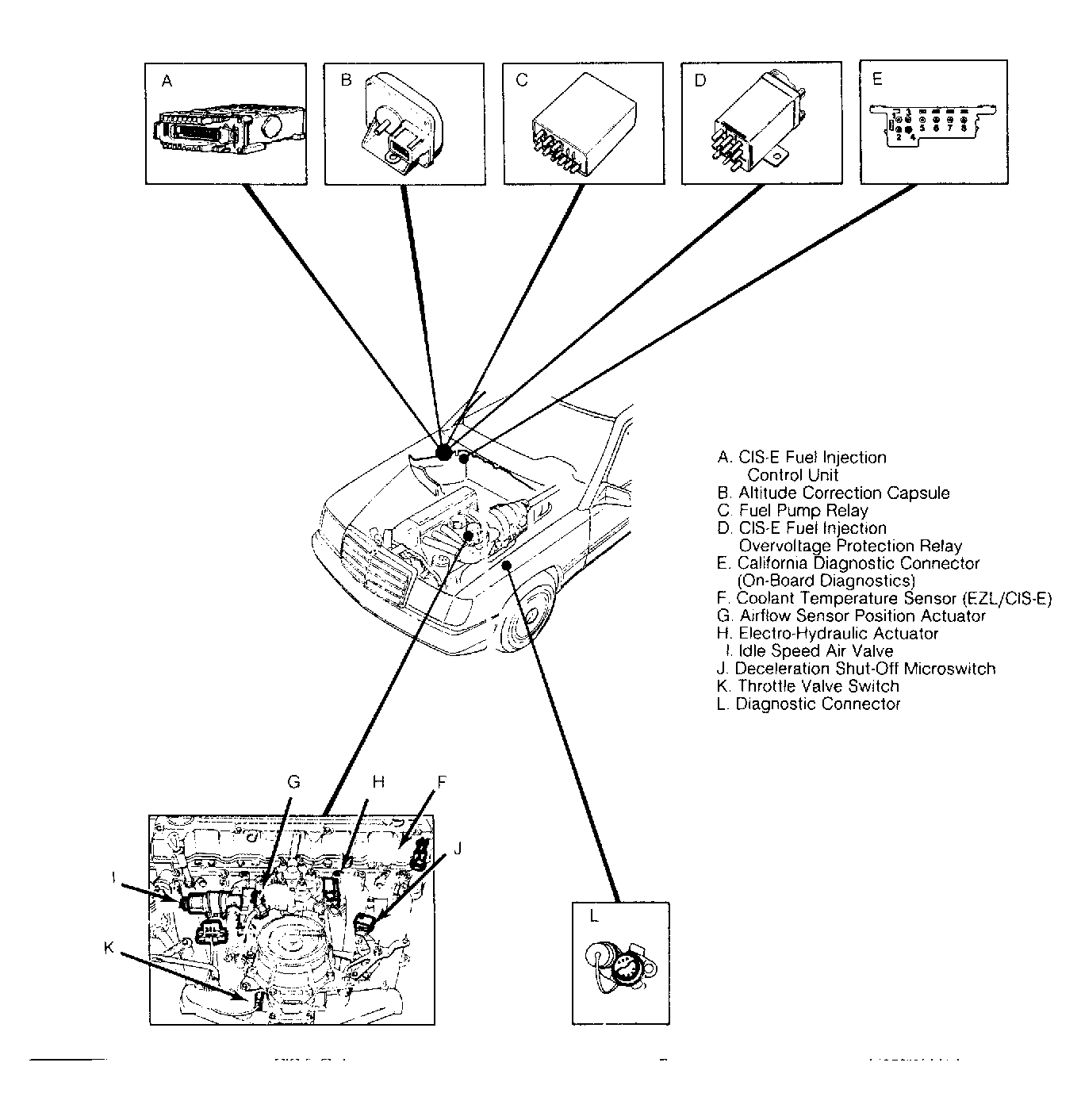

| 300 E, CE, TE | Near right side of firewall, directly behind battery. See Figure . | |
| 300 SE, SEL, SL | Behind right kick panel. | |
| 300 SL | Under right front of dash. | |
| Convenience Control Unit | Under left side of rear seat. | |
| Daytime Running Light (DRL) Control Unit | Centered, behind right side foot rest. | |
| Electronic Blower Regulator Control Unit | In center of cowl, next to heater core. | |

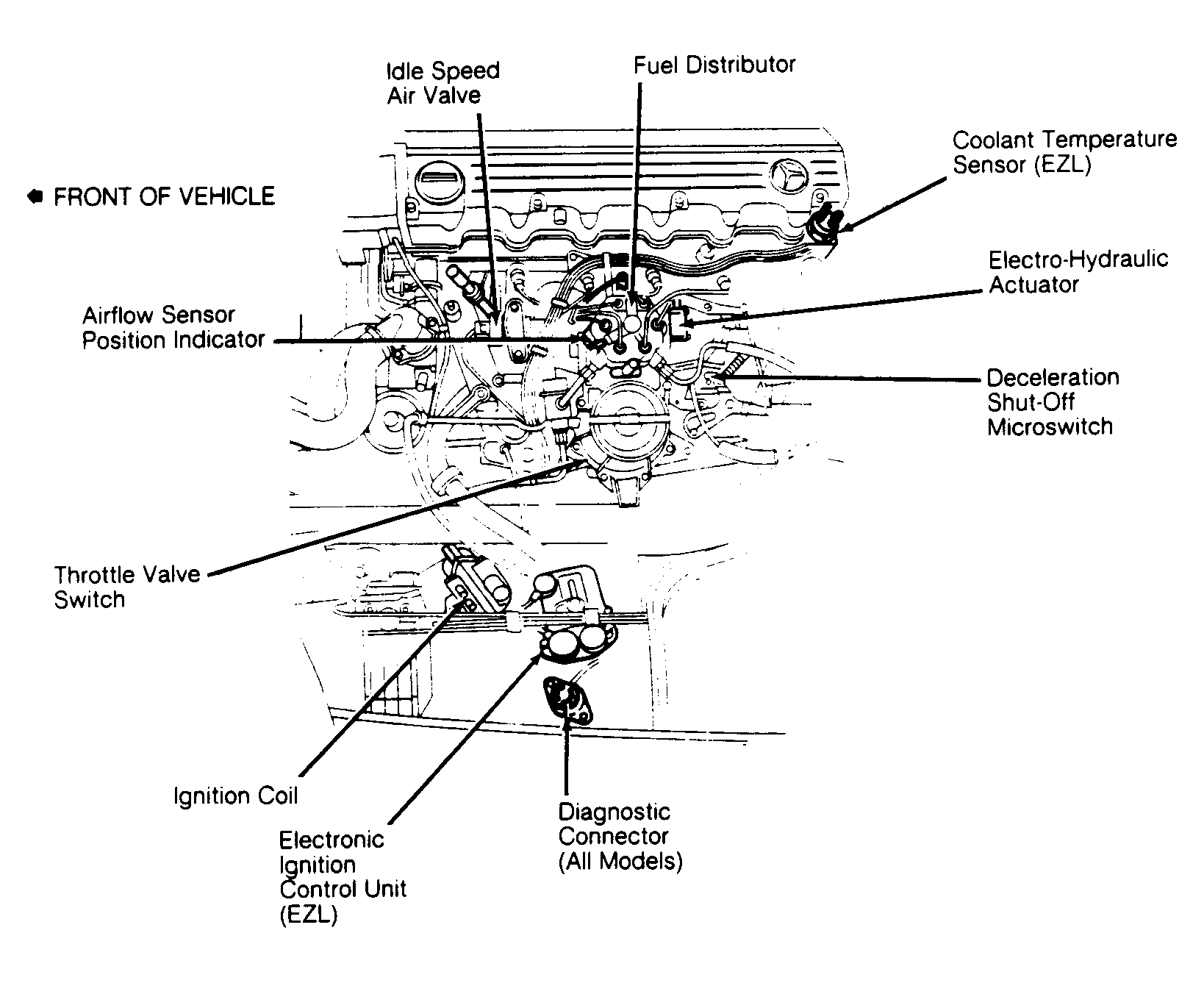

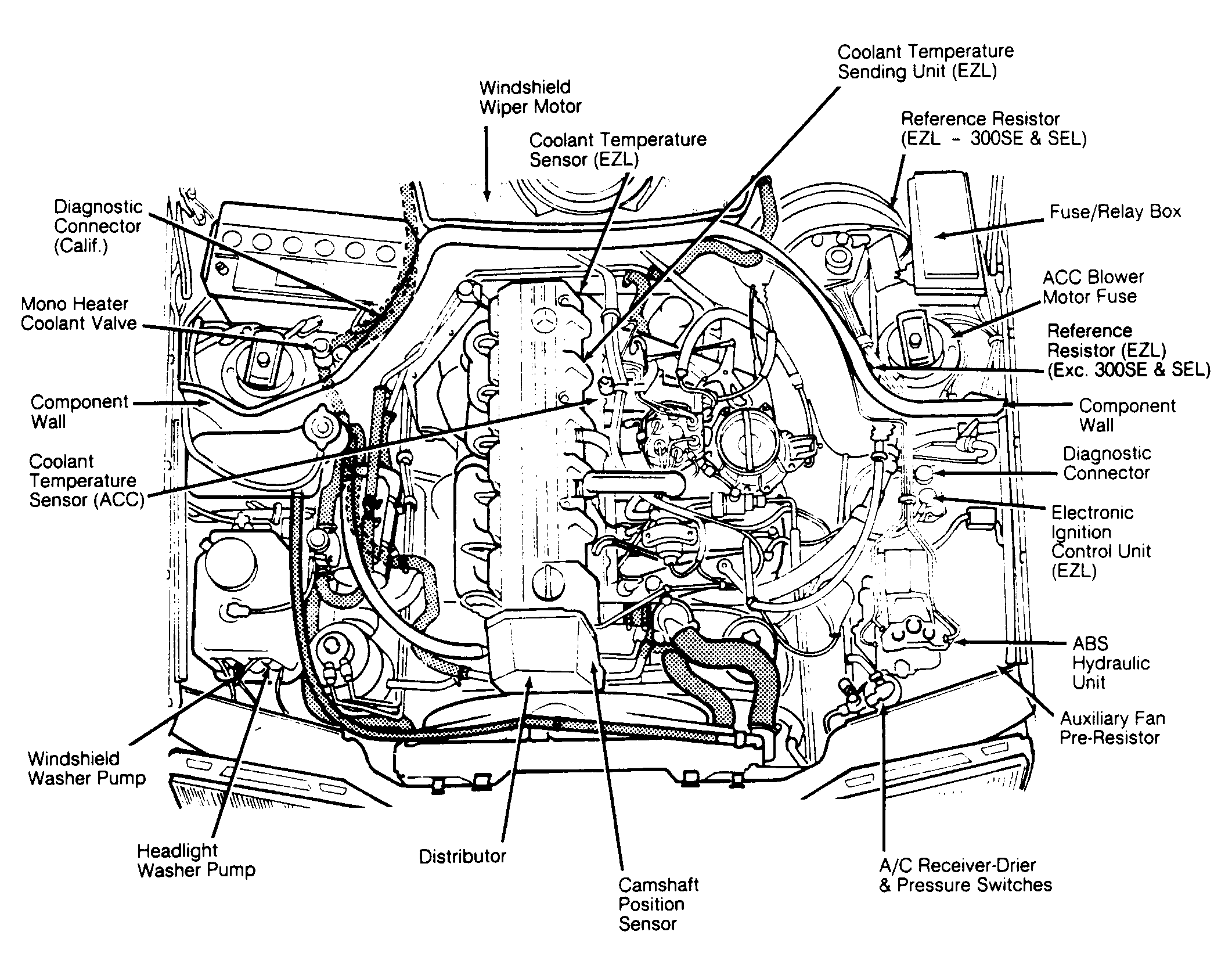

| Electronic Ignition Control Unit (EZL) | On left front inner fender panel, next to diagnostic connector. See Figure & Figure . | |
| Exterior Light Failure Monitoring Unit (See View "K") | In fuse/relay box. See Figure . | |
| Engine Systems Control Unit (MAS) | Behind battery, right of ABS control unit. | |
| Heated Seat Control Unit | Under left side of rear seat. | |
| Illumination Control Unit | On steering column, behind instrument column. | |
| Left Front Power Seat & Steering Column Adjustment Control Unit | Under left front seat. | |
| Radio Amplifier Control Unit | In right front corner of trunk. | |
| SRS Control Unit | On top of transmission tunnel, behind front console. | |
| Warning Module | Behind instrument cluster, on steering column. | |
