Mercedes Benz
>>
1990
>>
350SD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Test Step Charts
Test Step Charts

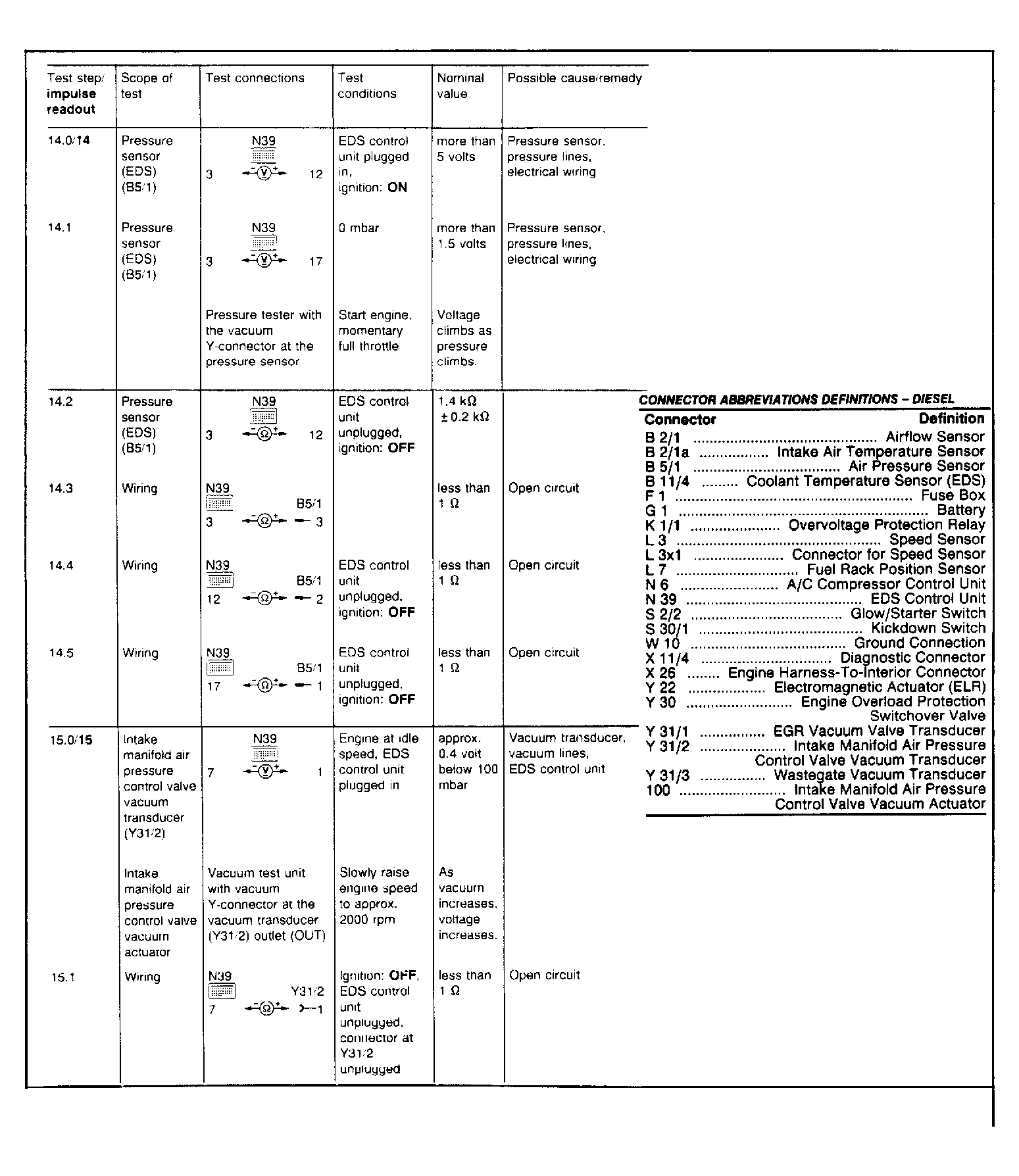

Fig 1: Test Step Charts (1 of 7)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

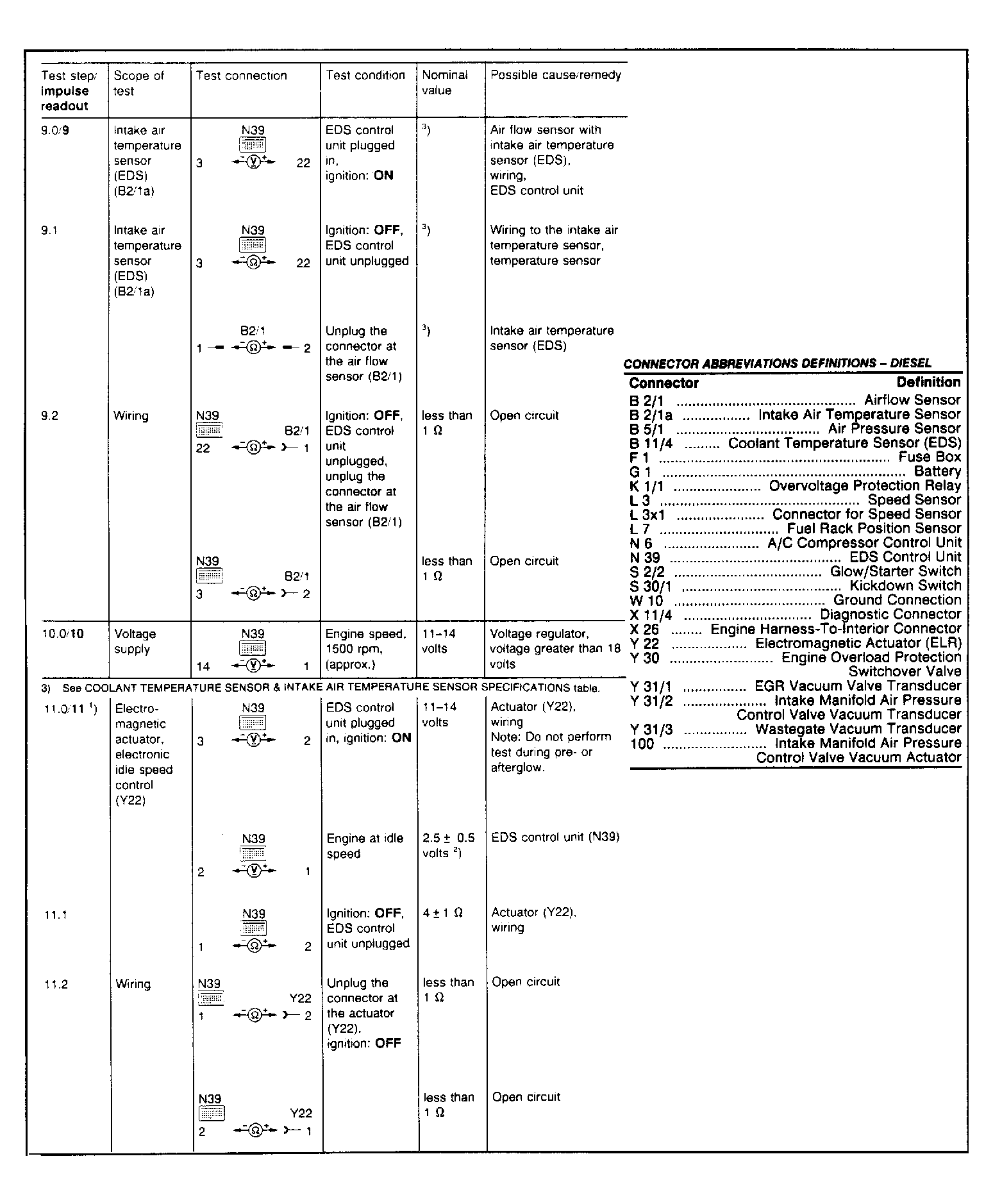

Fig 2: Test Step Charts (2 of 7)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

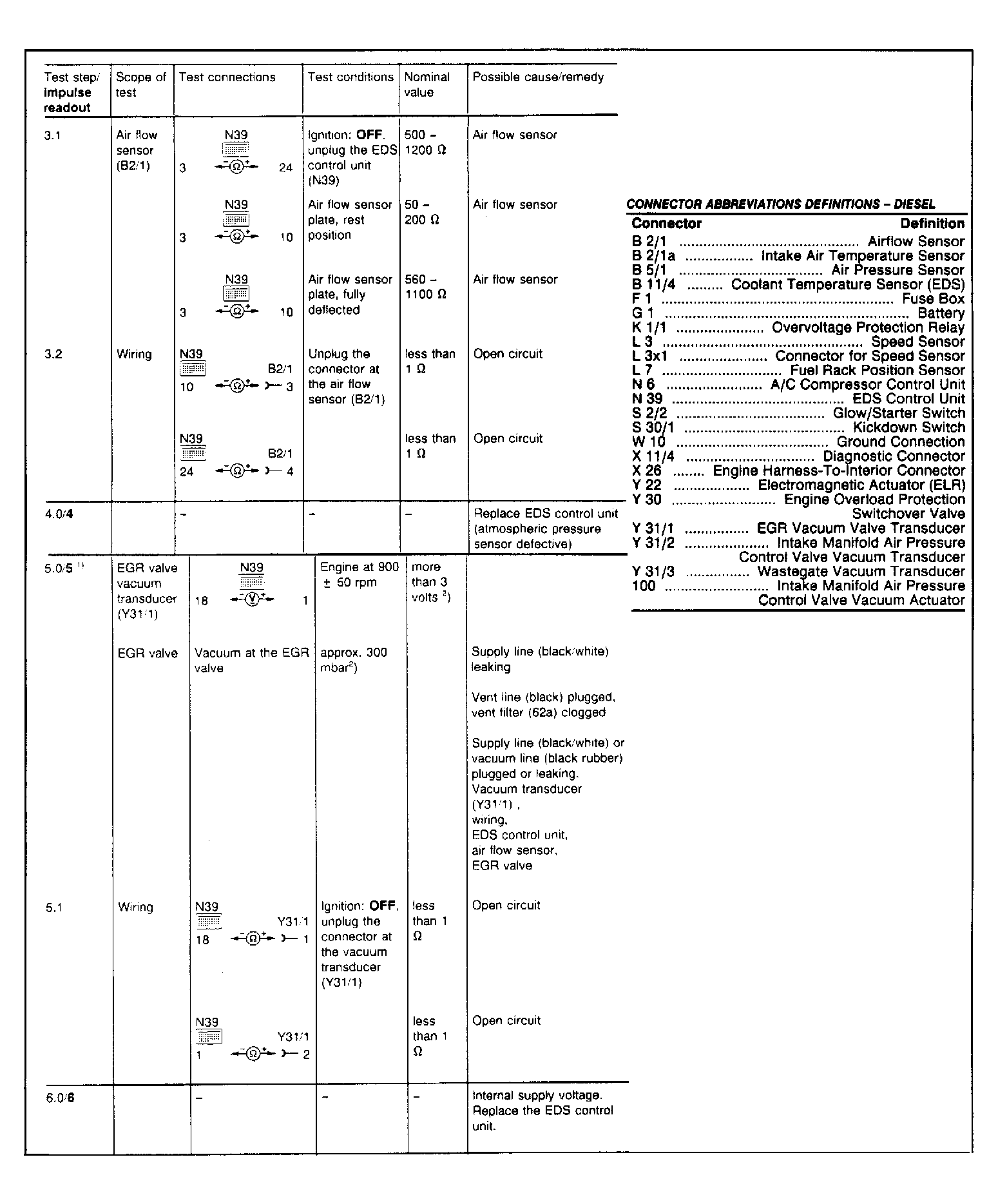

Fig 3: Test Step Charts (3 of 7)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

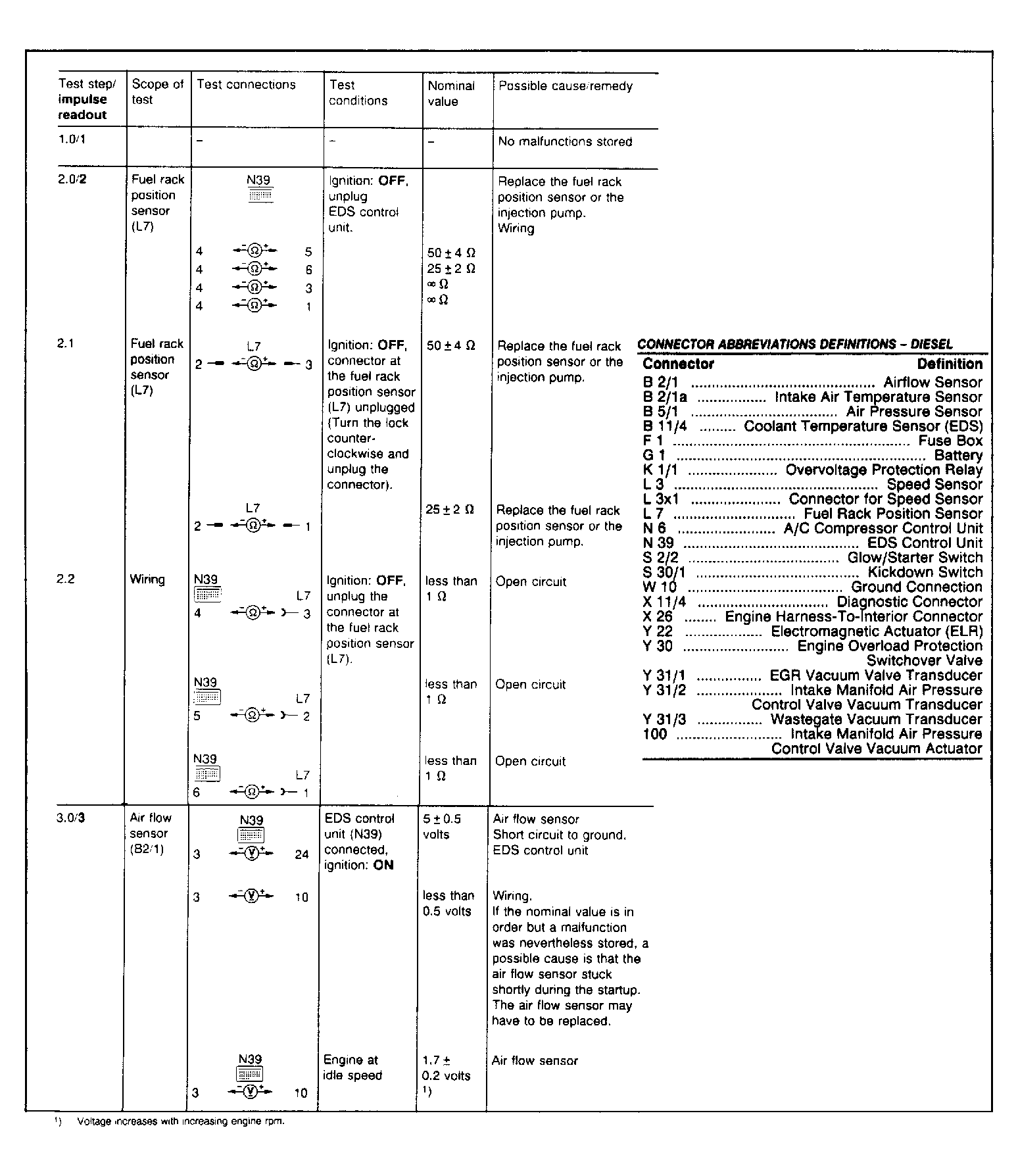

Fig 4: Test Step Charts (4 of 7)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

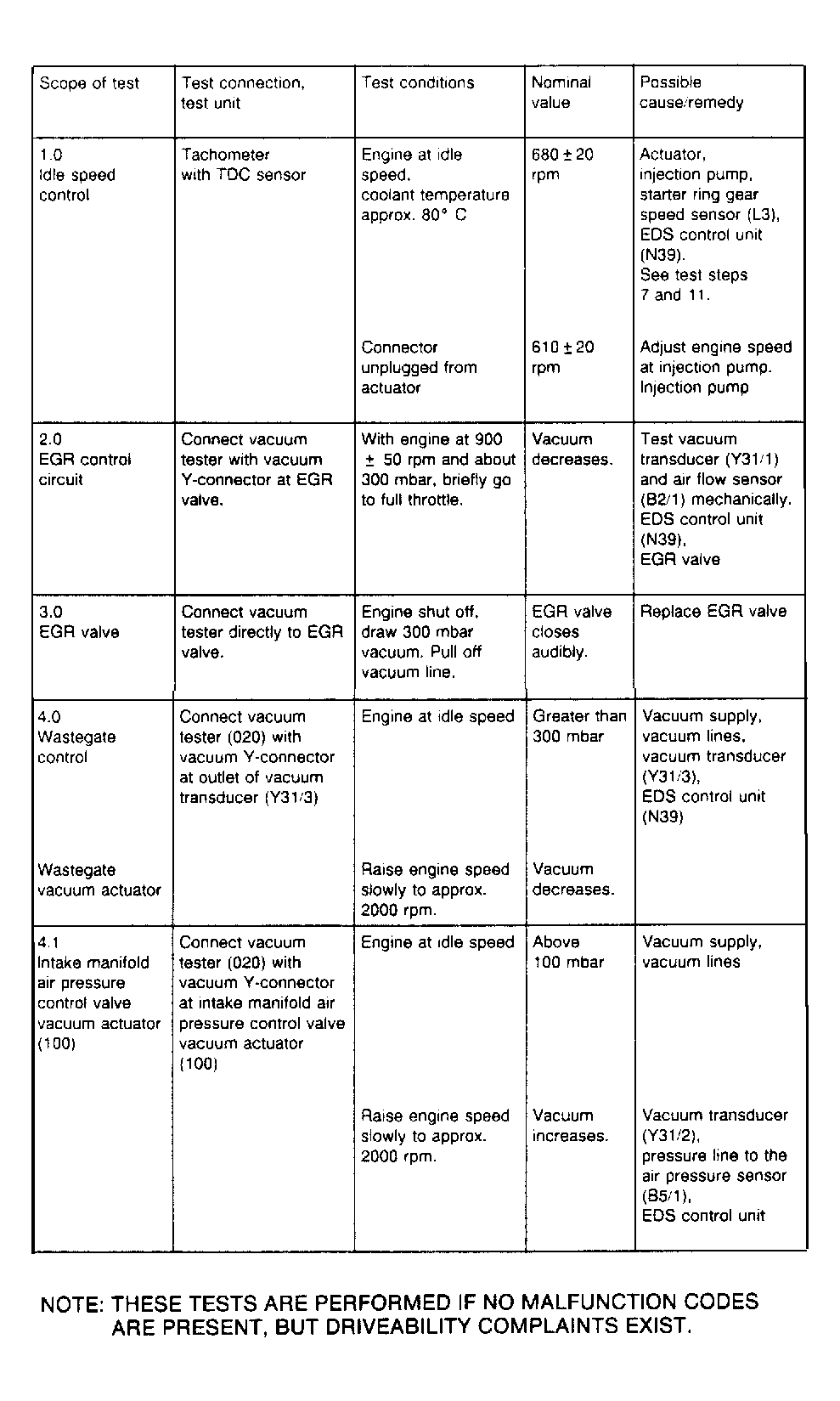

Fig 5: Test Step Charts (5 of 7)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

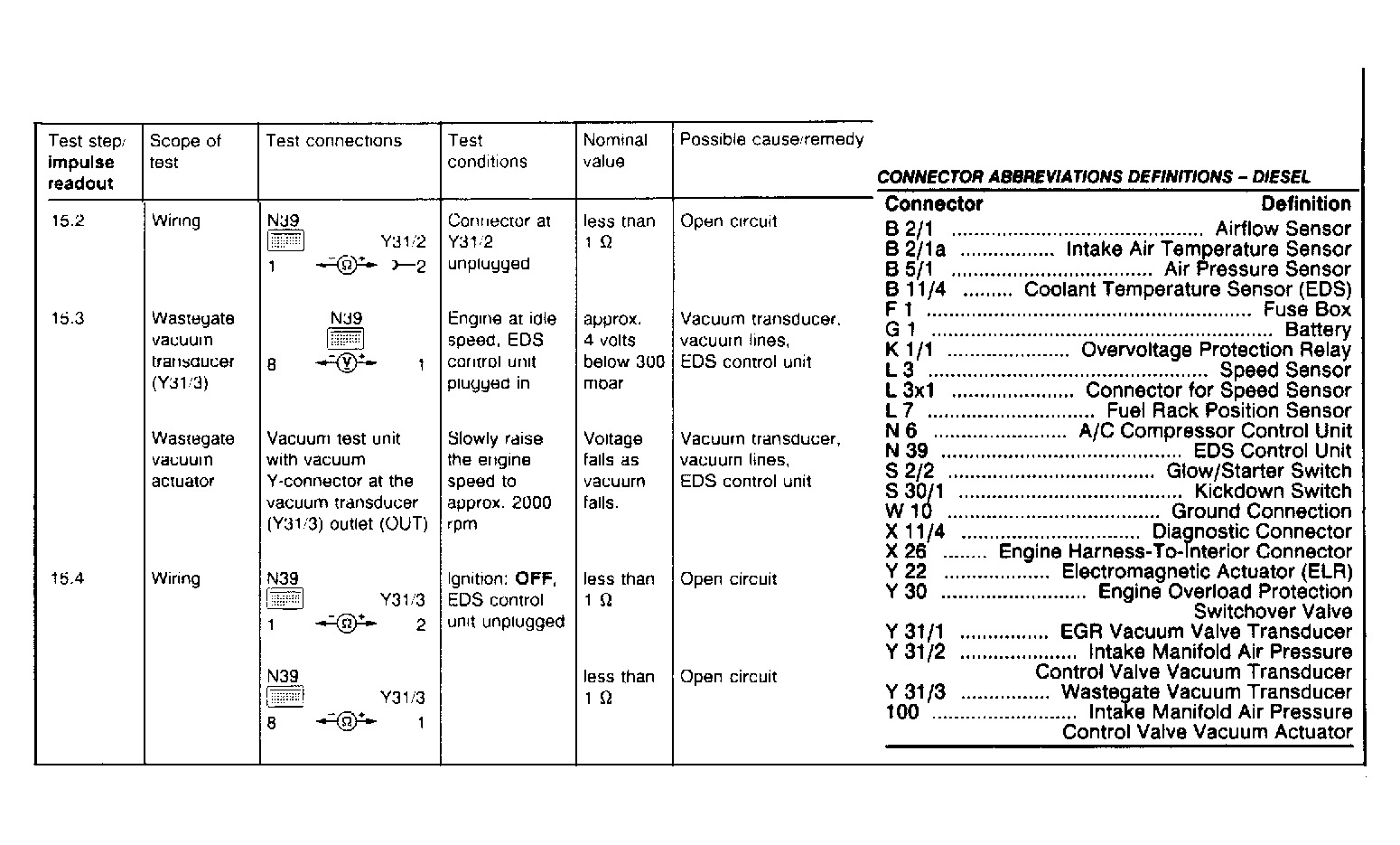

Fig 6: Test Step Charts (6 of 7)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Test Step Charts (7 of 7)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
