Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Combination Control Module Box | Right rear of engine compartment, behind battery. |

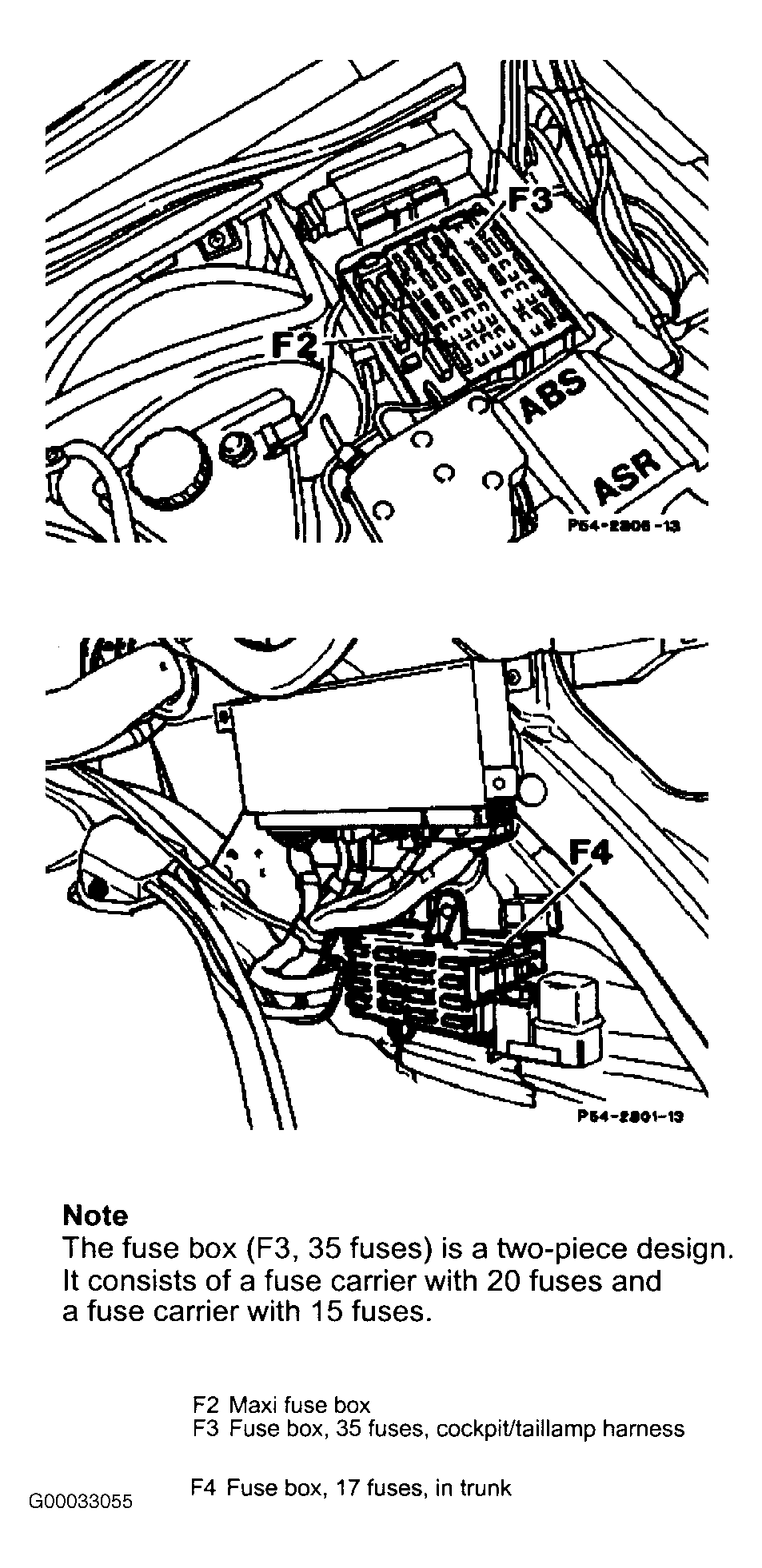

| Fuse/Relay Block | On left rear corner of engine compartment. See Figure . |
| Maxifuse Block (F2) | In base module (N16/1). See Figure . |
| Rear Fuse Box | Right rear of luggage compartment. See Figure . |
