Computerized Engine Controls

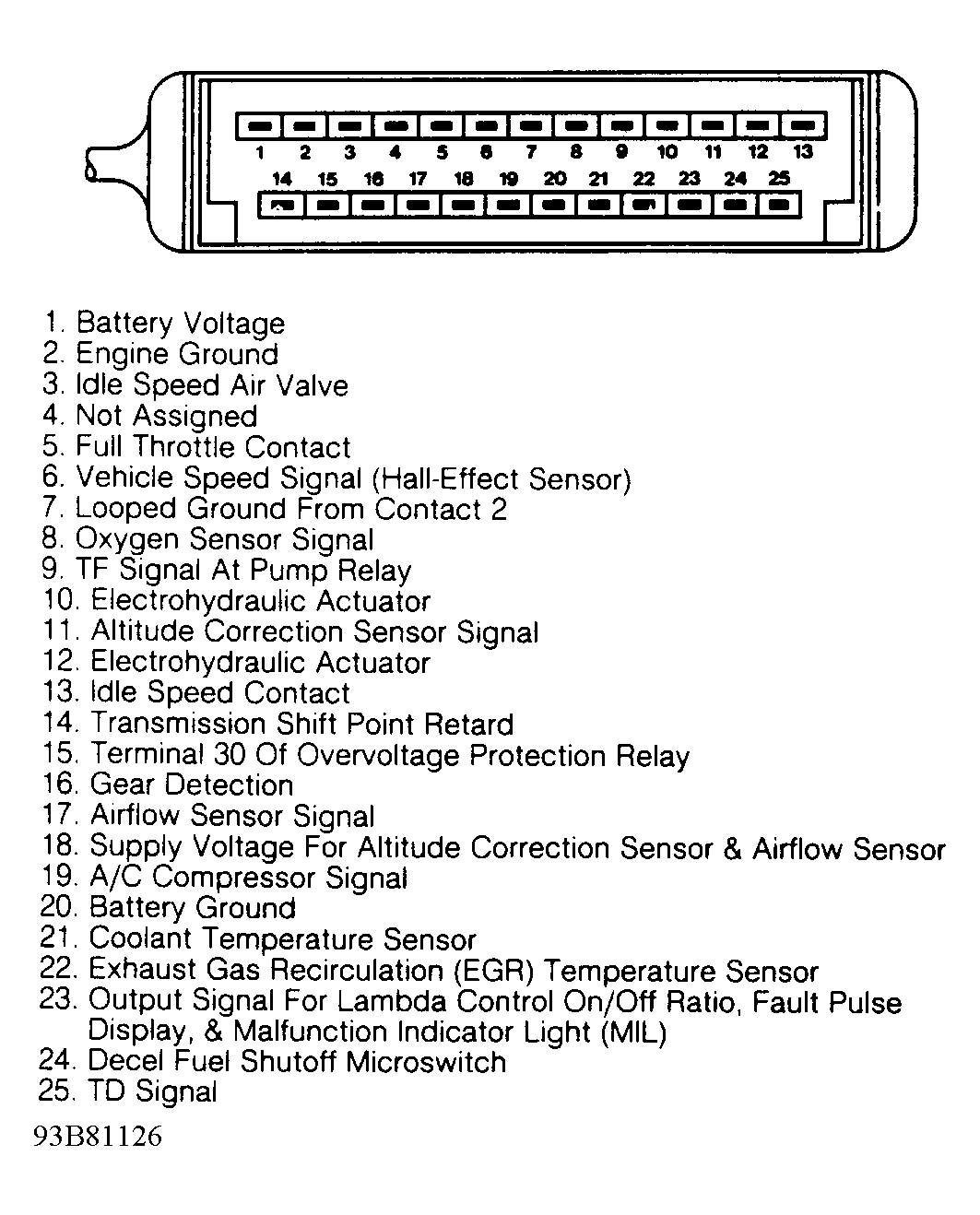

Fig 1: Identifying CIS-E Control Unit Terminals
G93B81126Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
