Engine Controls - Tests W/Codes
>>
Functional Tests
>>
6-Cylinder Functional Test Charts
6-Cylinder Functional Test Charts

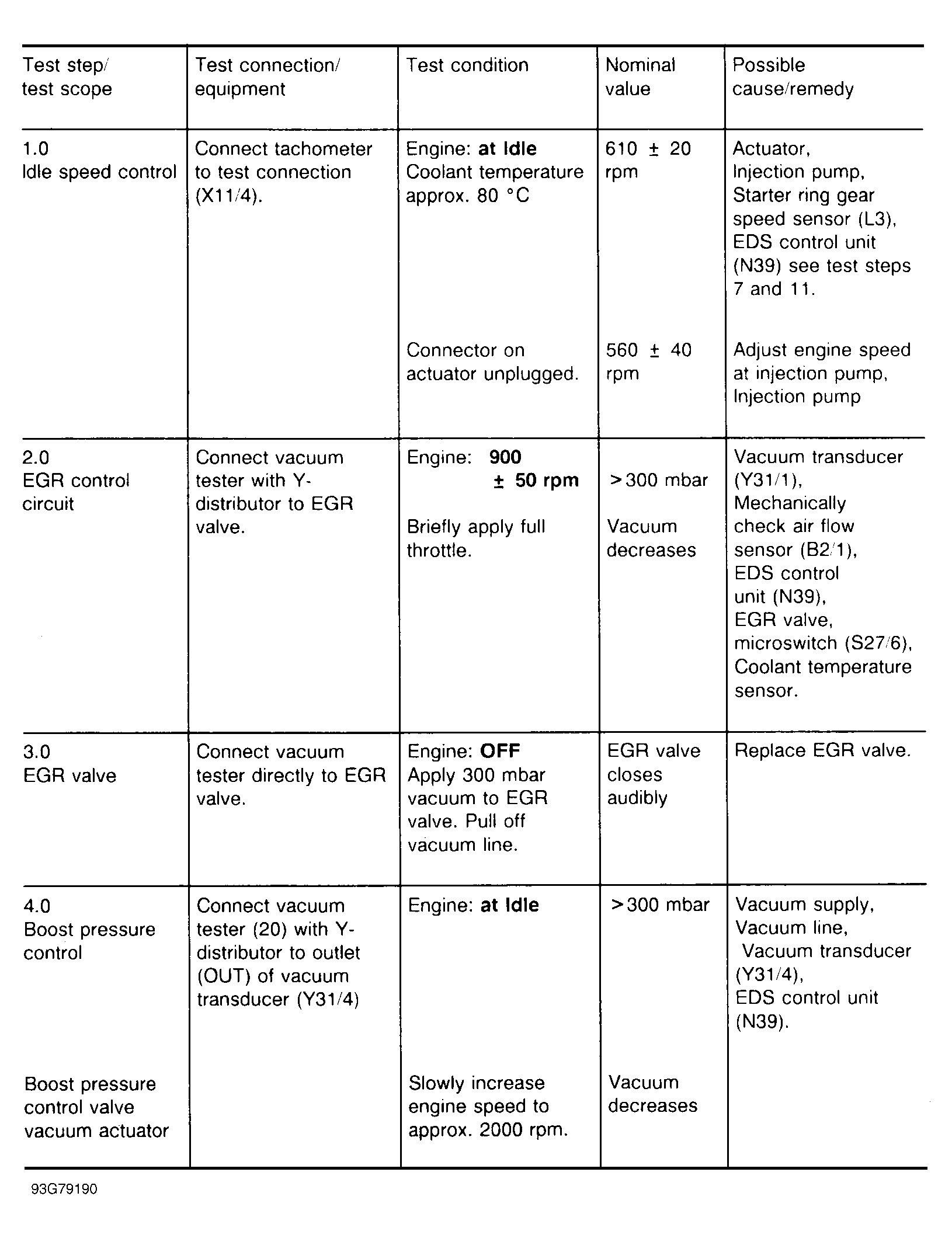

Fig 1: 6-Cylinder Functional Test Electronic Idle Speed (ELR), EGR & P-2 (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

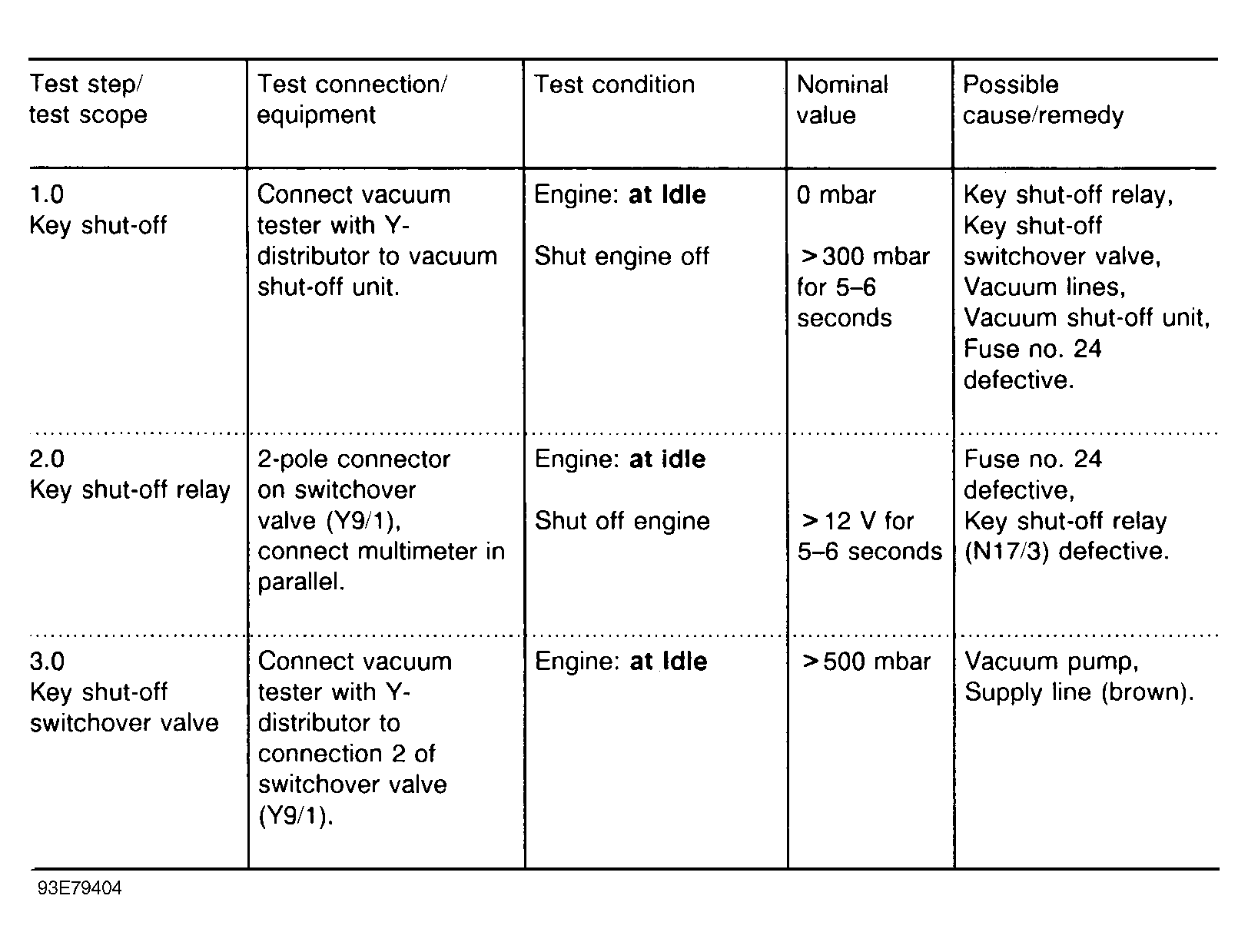

Fig 2: 6-Cylinder Functional Test (2 Of 2) Key Shutoff
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
