Engine Controls - Tests W/Codes - Diagnostic Module
>>
Connector Identification
Connector Identification

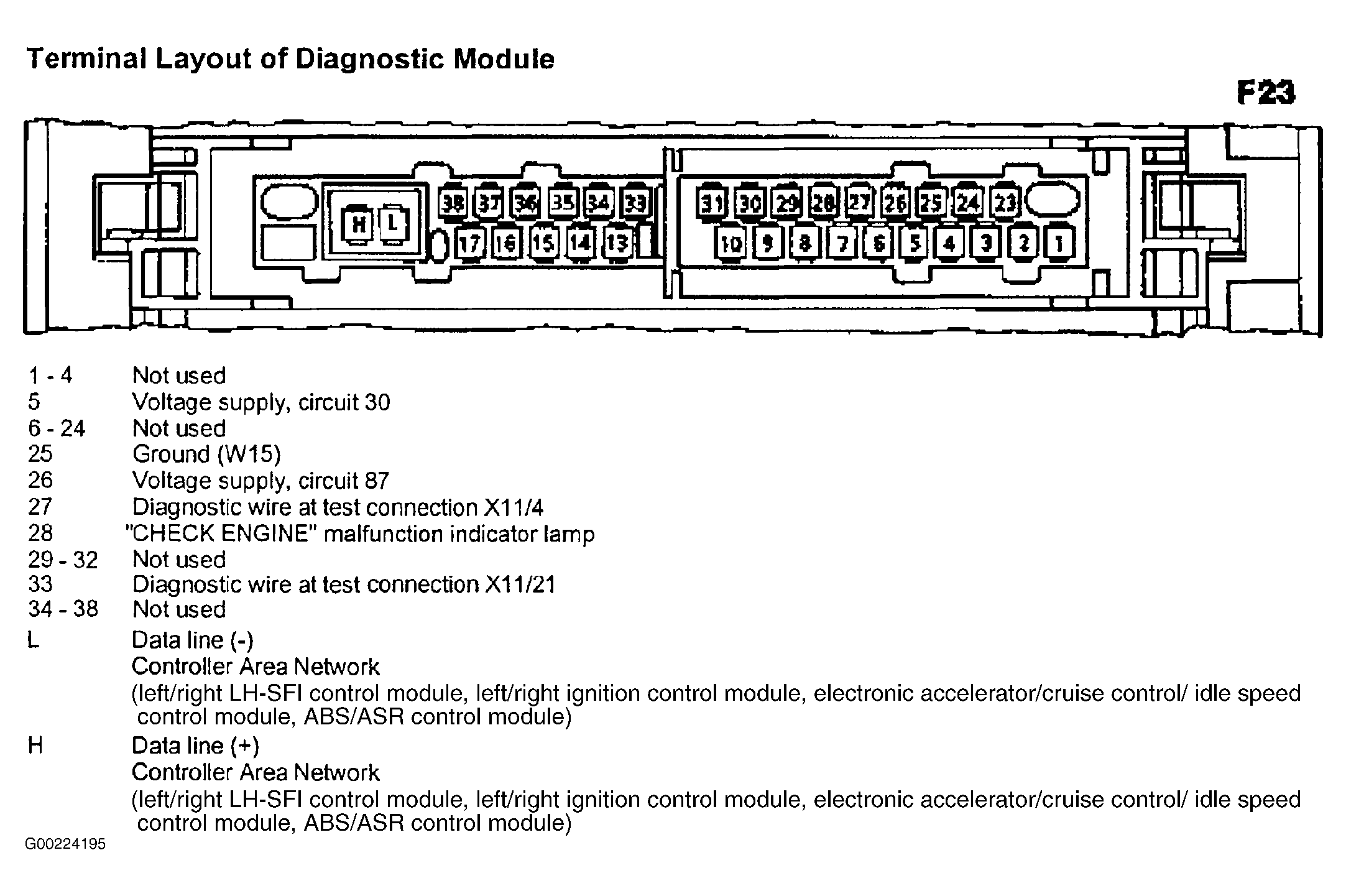

Fig 1: Diagnostic Module Connector Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
