Diagnostic Tests

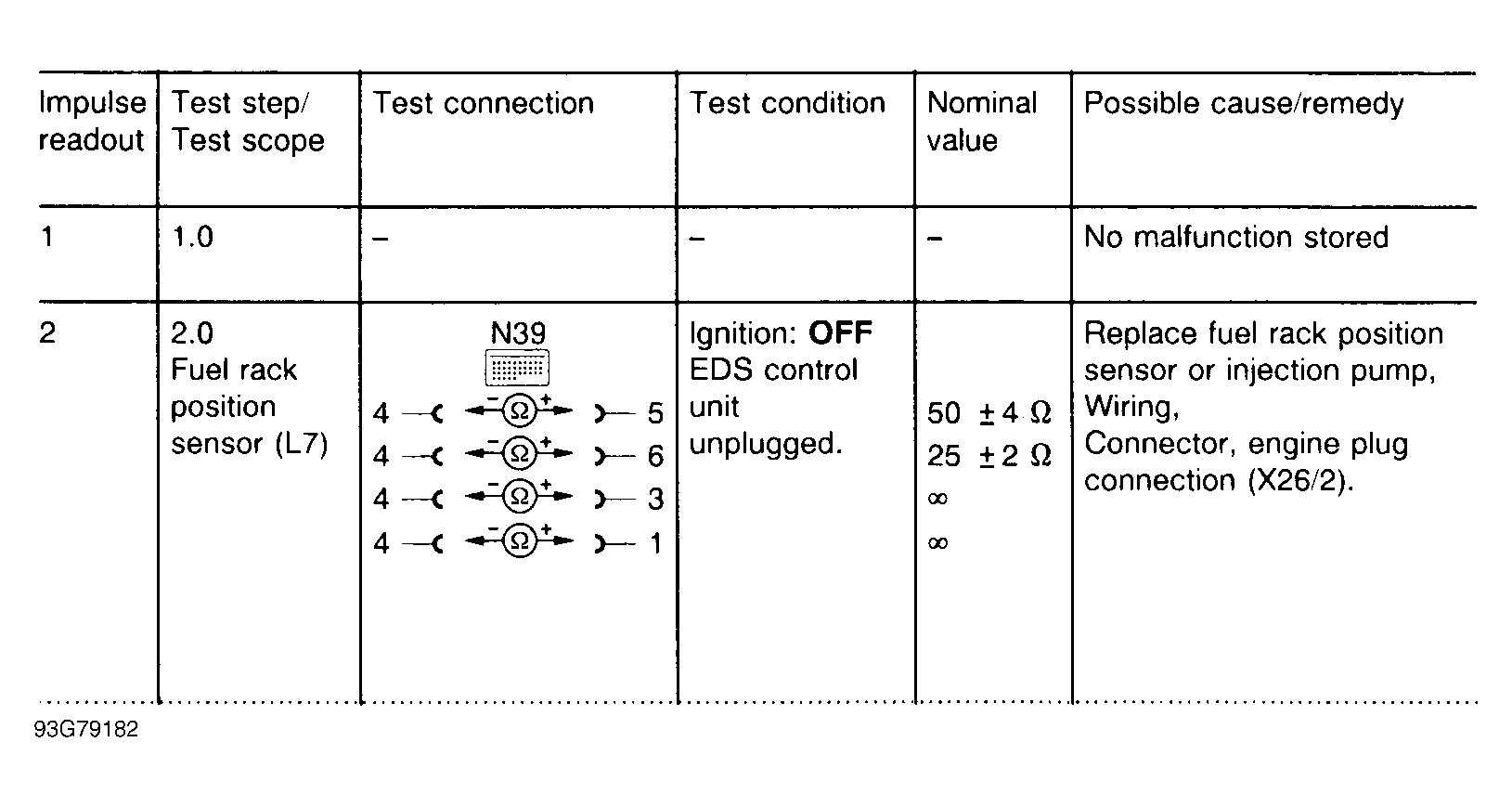

Fig 1: Fault Code Diagnostic Test Schematic (1 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

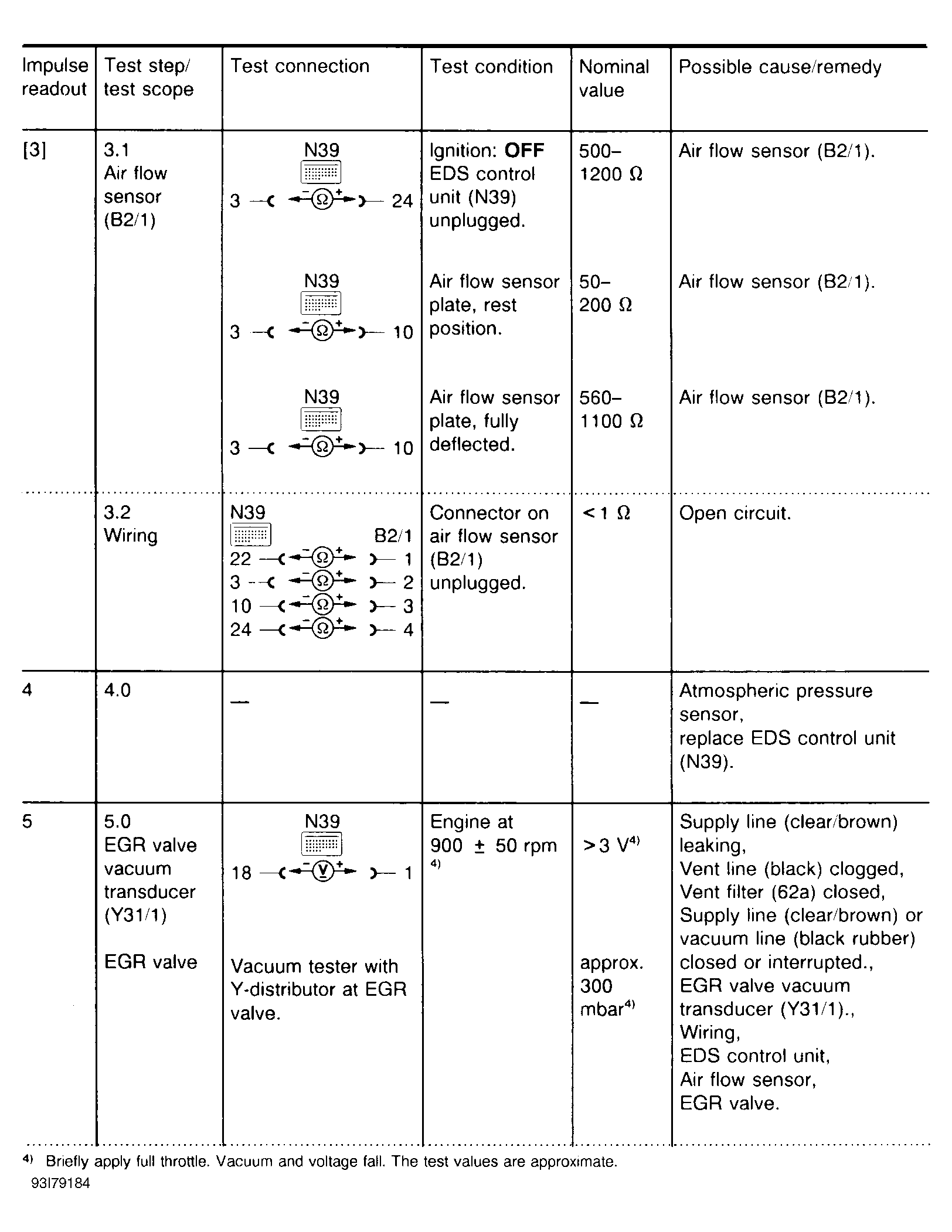

Fig 2: Fault Code Diagnostic Test Schematic (2 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

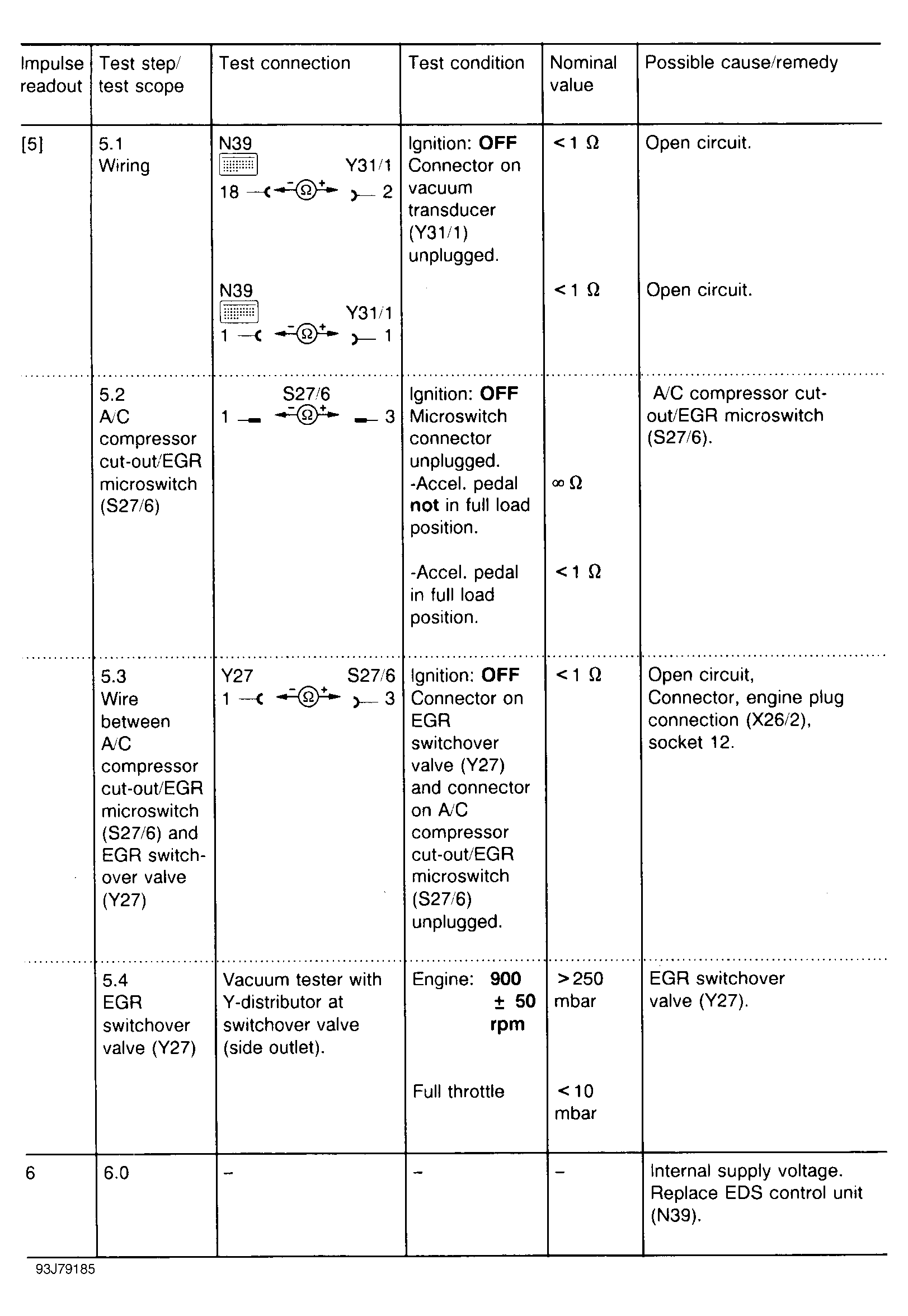

Fig 3: Fault Code Diagnostic Test Schematic (3 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

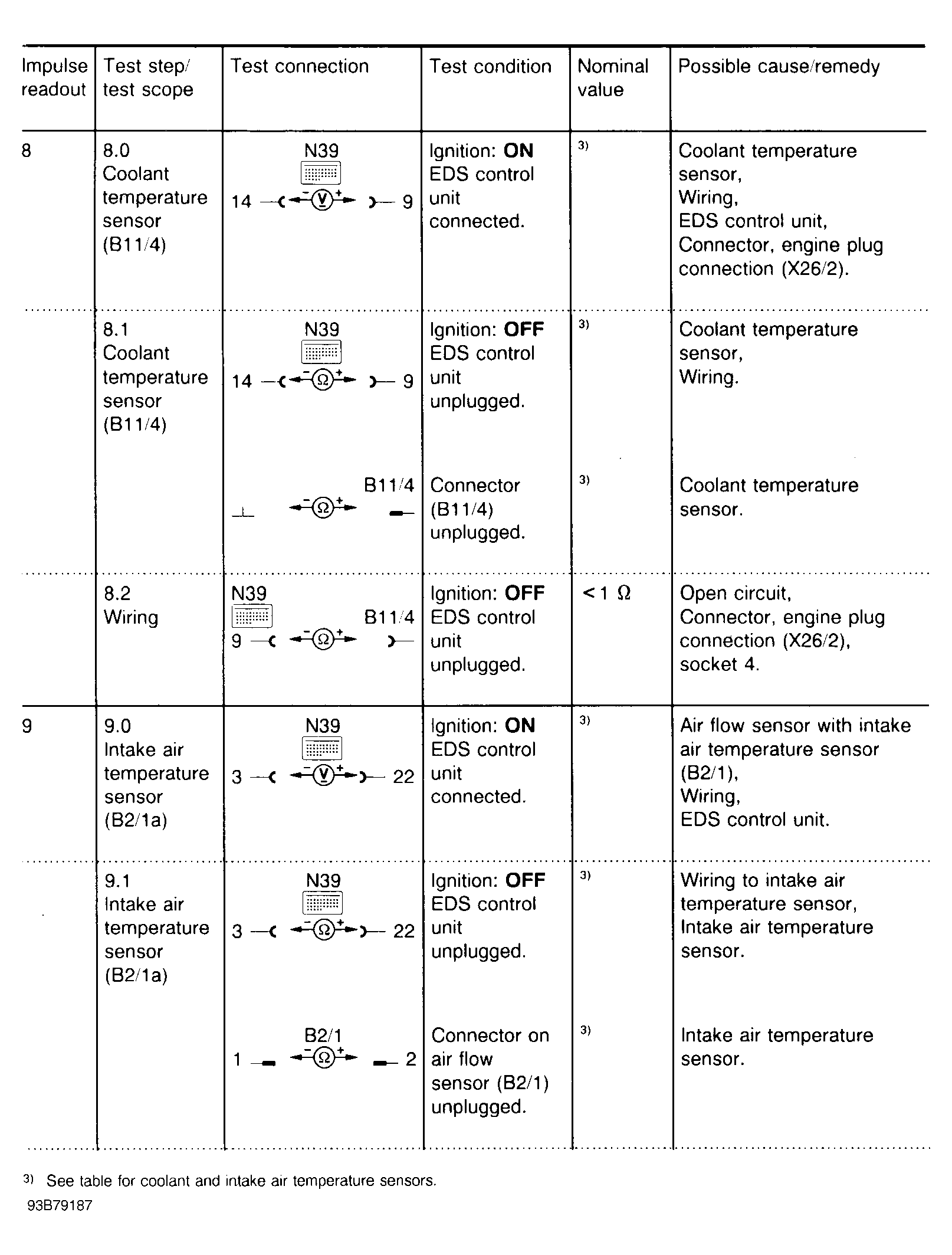

Fig 4: Fault Code Diagnostic Test Schematic (4 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

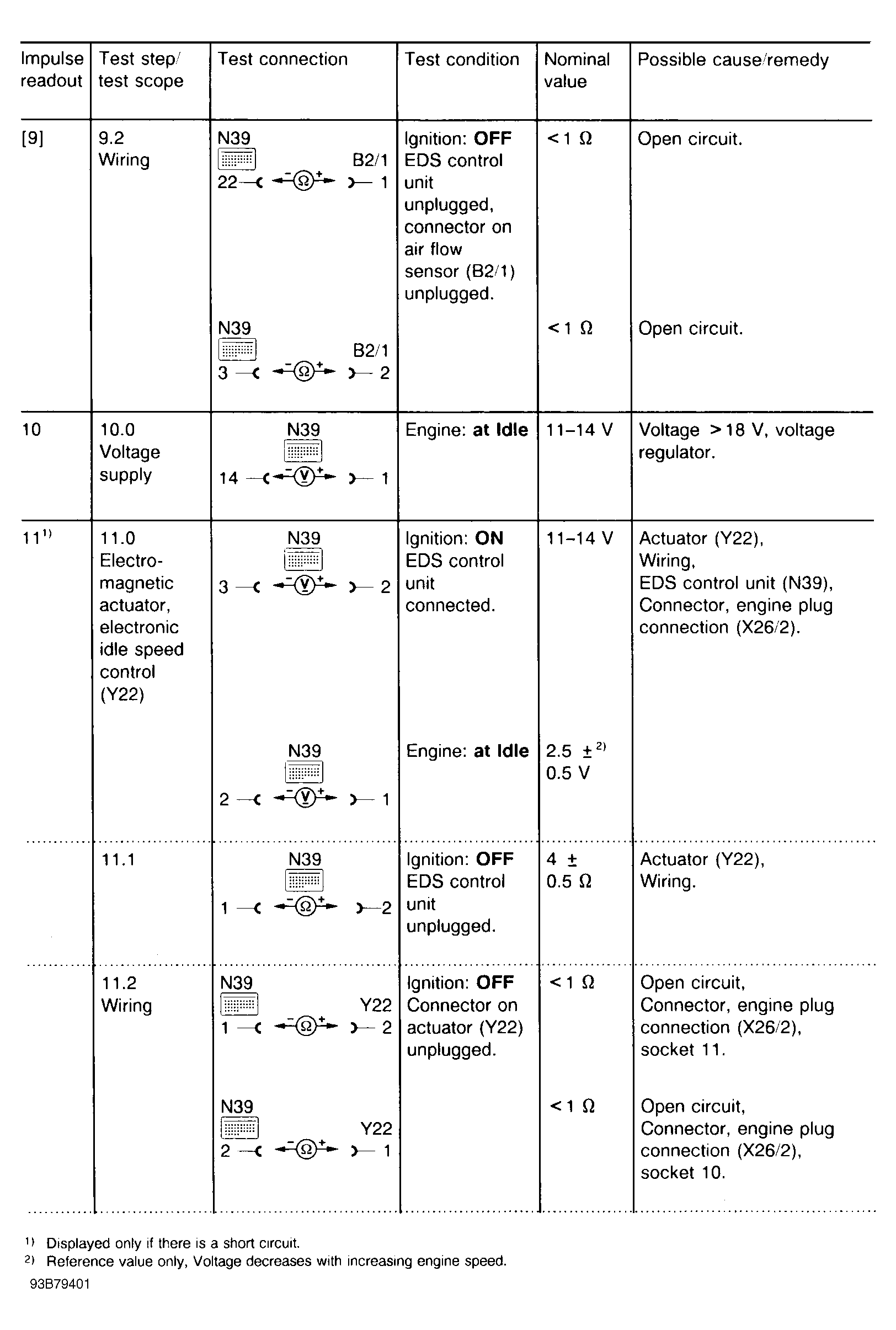

Fig 5: Fault Code Diagnostic Test Schematic (5 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

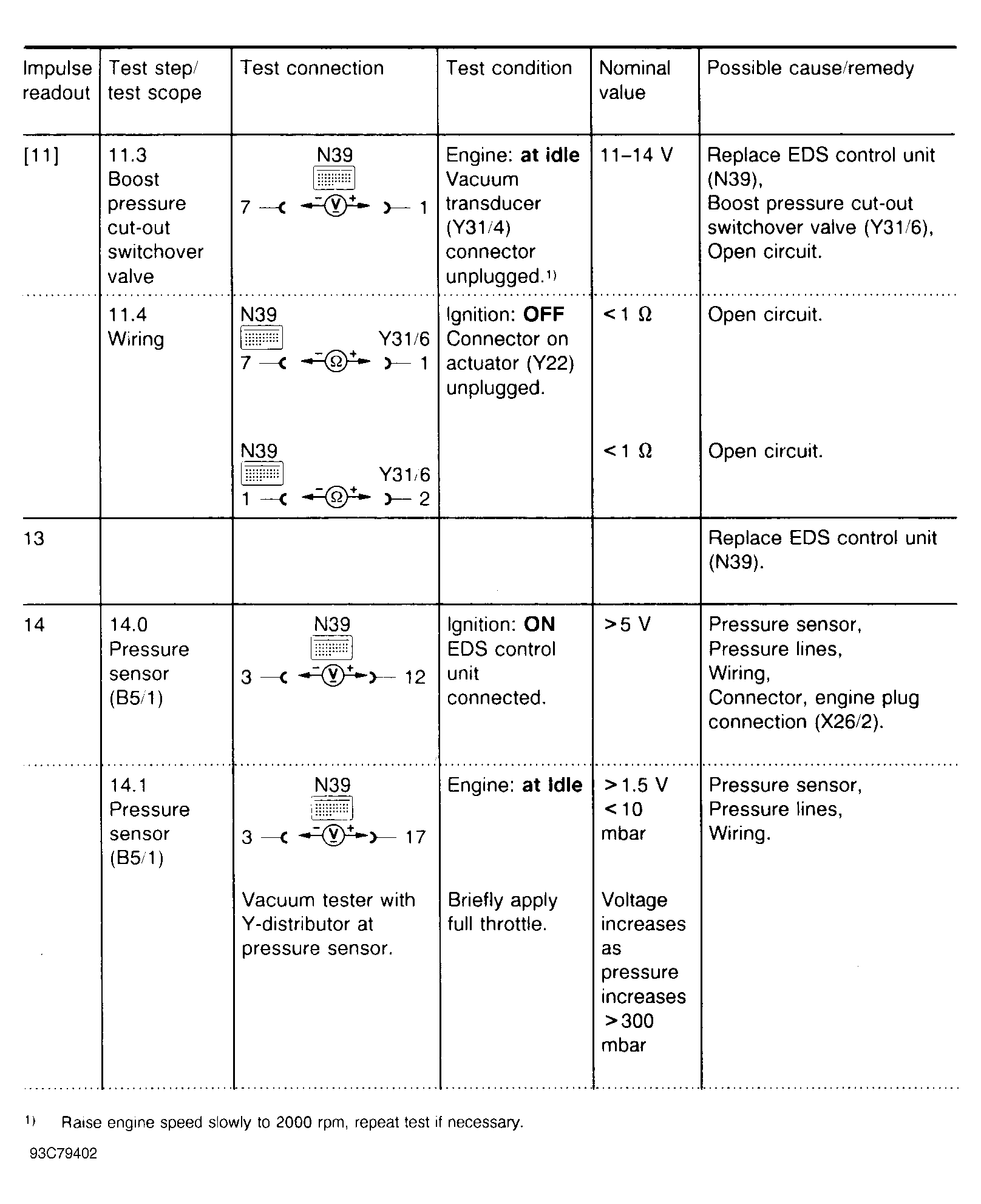

Fig 6: Fault Code Diagnostic Test Schematic (6 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

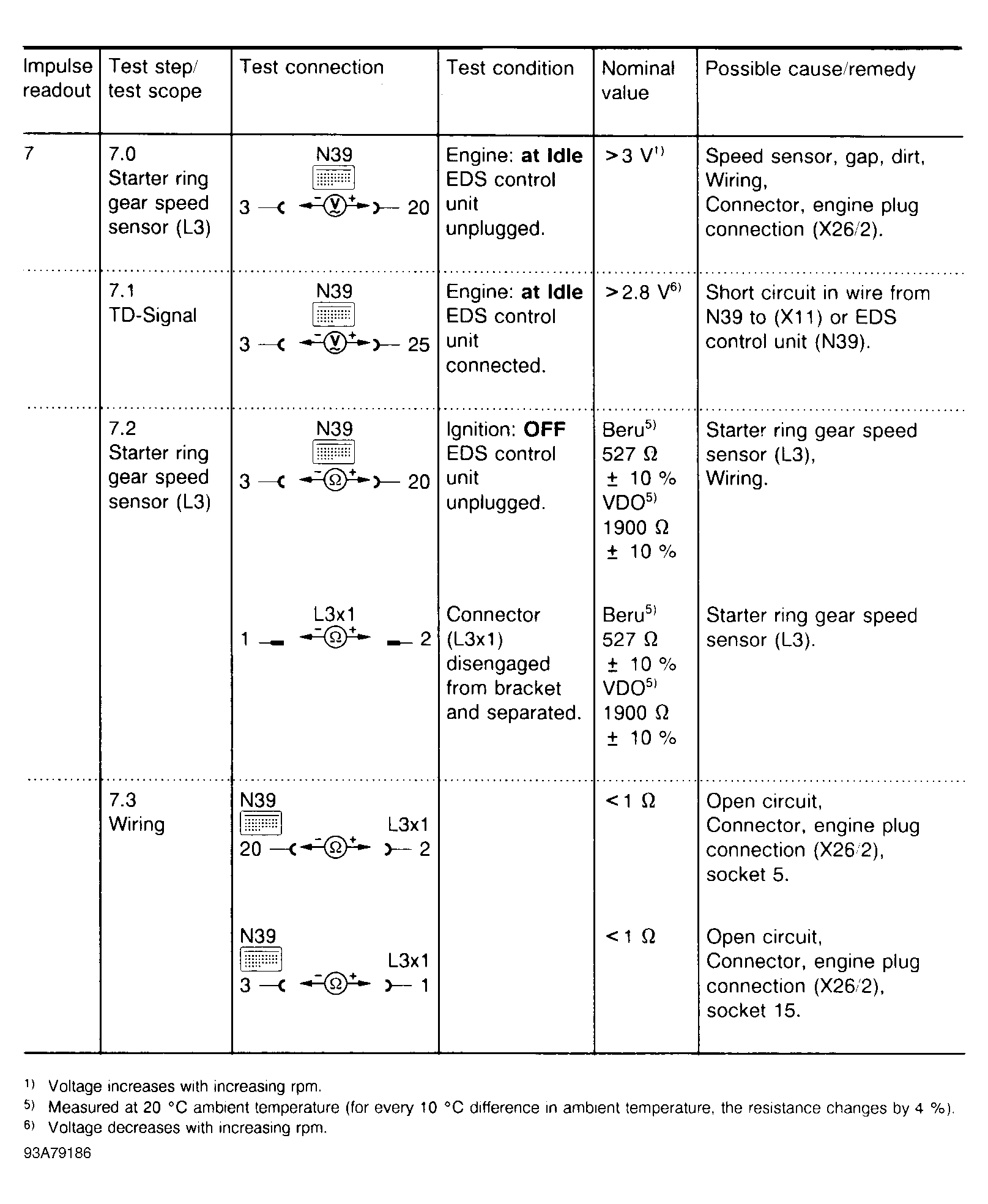

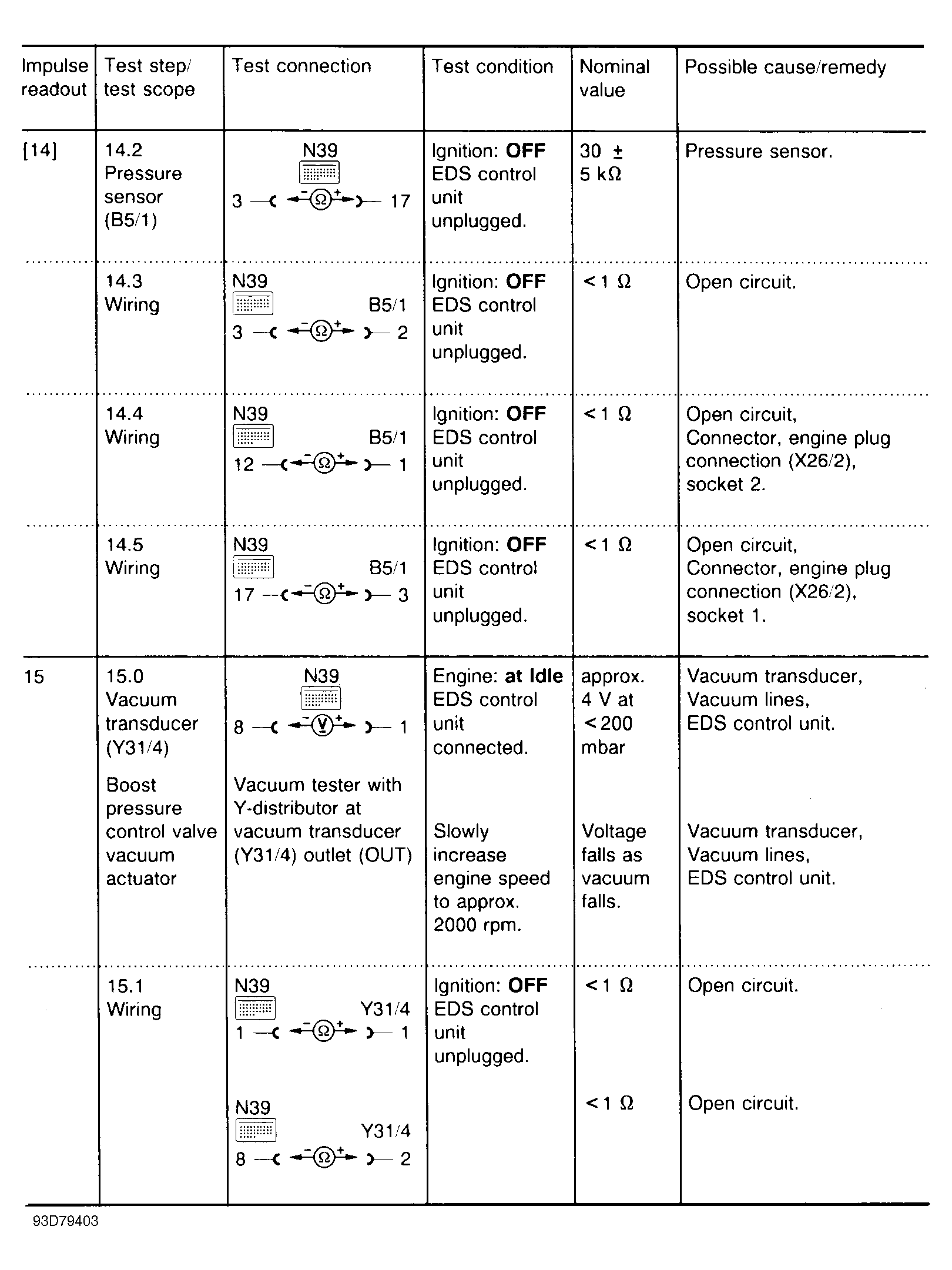

Fig 7: Fault Code Diagnostic Test Schematic (7 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 8: Fault Code Diagnostic Test Schematic (8 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 9: Fault Code Diagnostic Test Schematic (9 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 10: Fault Code Diagnostic Test Schematic (10 Of 10)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
