Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

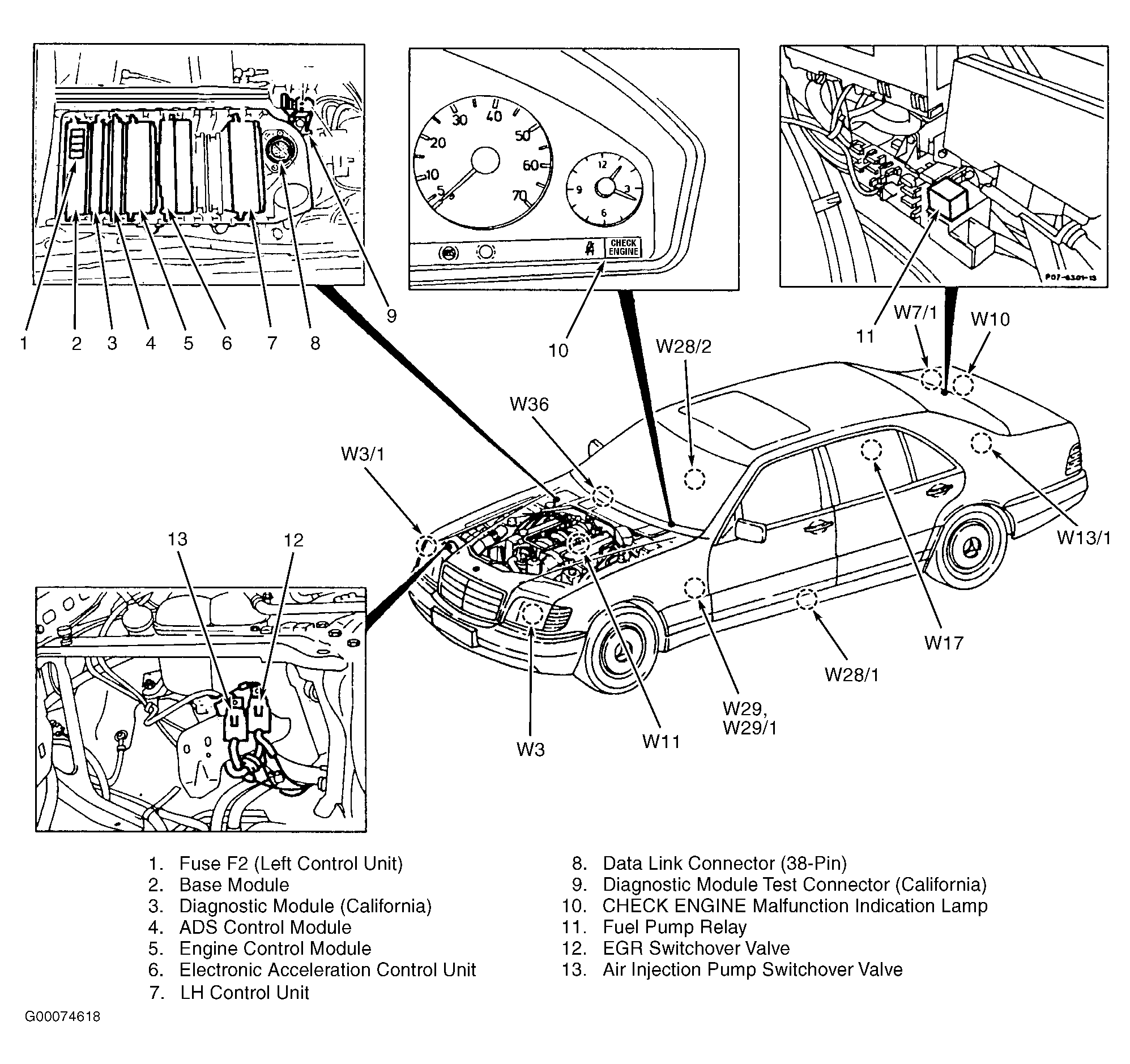

| ADS Control Module | In module box, on right rear of engine compartment. See Figure . |
| Anti-Theft Alarm Control Unit | On right side of luggage compartment, behind trim panel. |
| Base Module | In module box, on right rear of engine compartment. See Figure . |
| Convenience Control Unit | On right side of luggage compartment, behind trim panel. |
| Diagnostic Module (California) | In module box, on right rear of engine compartment. See Figure . |
| Electronic Accelerator Control Unit | In module box, on right rear of engine compartment. See Figure . |
| Engine Control Module | In module box, on right rear of engine compartment. See Figure . |
| Infrared Remote Control Unit | On right side of luggage compartment, behind trim panel. |

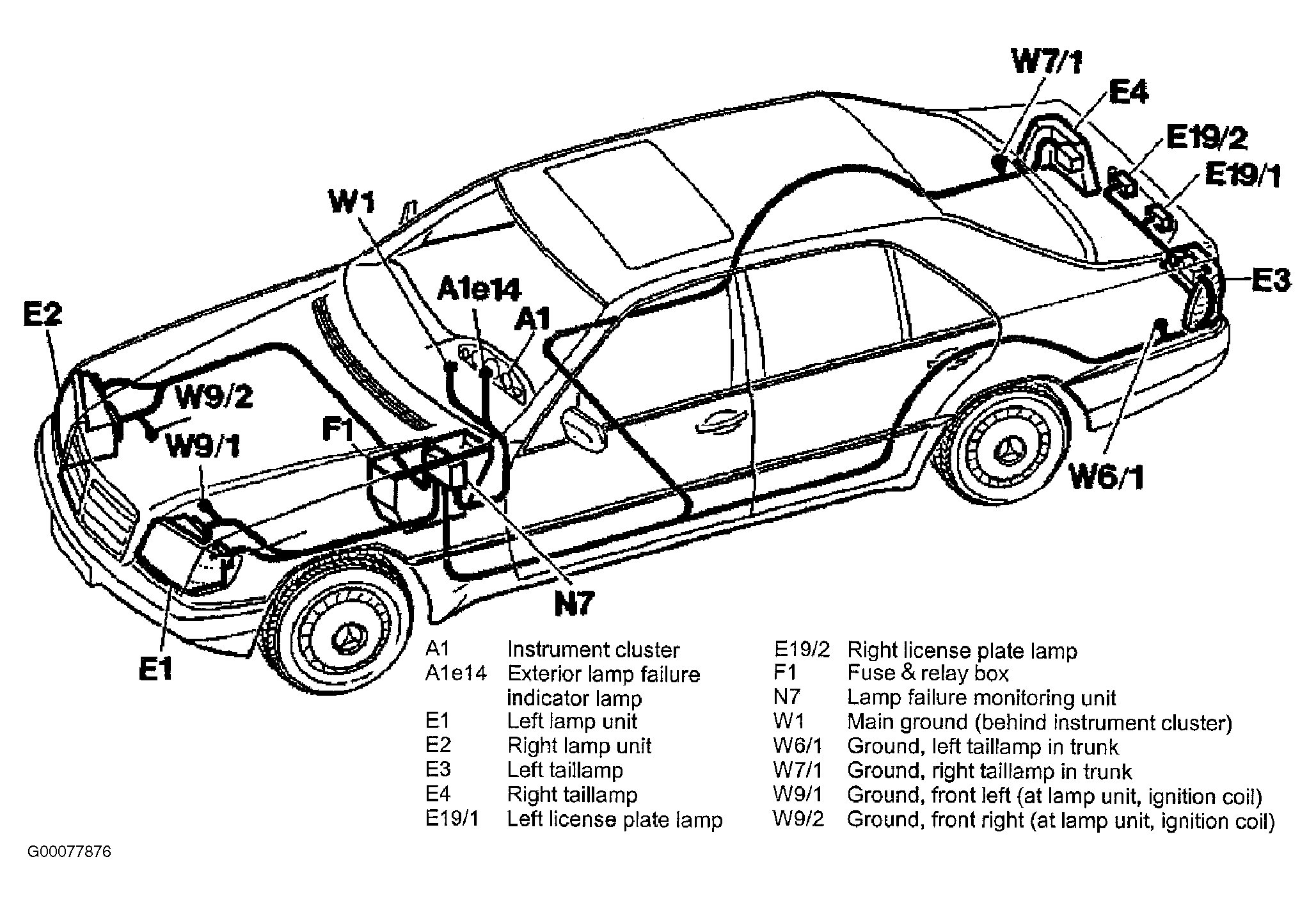

| Lamp Failure Monitoring Unit | In left rear of engine compartment. See Figure . |
| LH Control Unit | In module box, on right rear of engine compartment. See Figure . |
| Mirror/Steering Column Adjustment Control Unit (W/ Memory) | Behind right side of dash. |
| PSE Control Module | Right side of rear seat. |
| Pulse Module | Lower left front corner of engine. |
