Mercedes Benz
>>
1995
>>
SL320
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - Diagnostic Module
>>
Connector Identification
Connector Identification

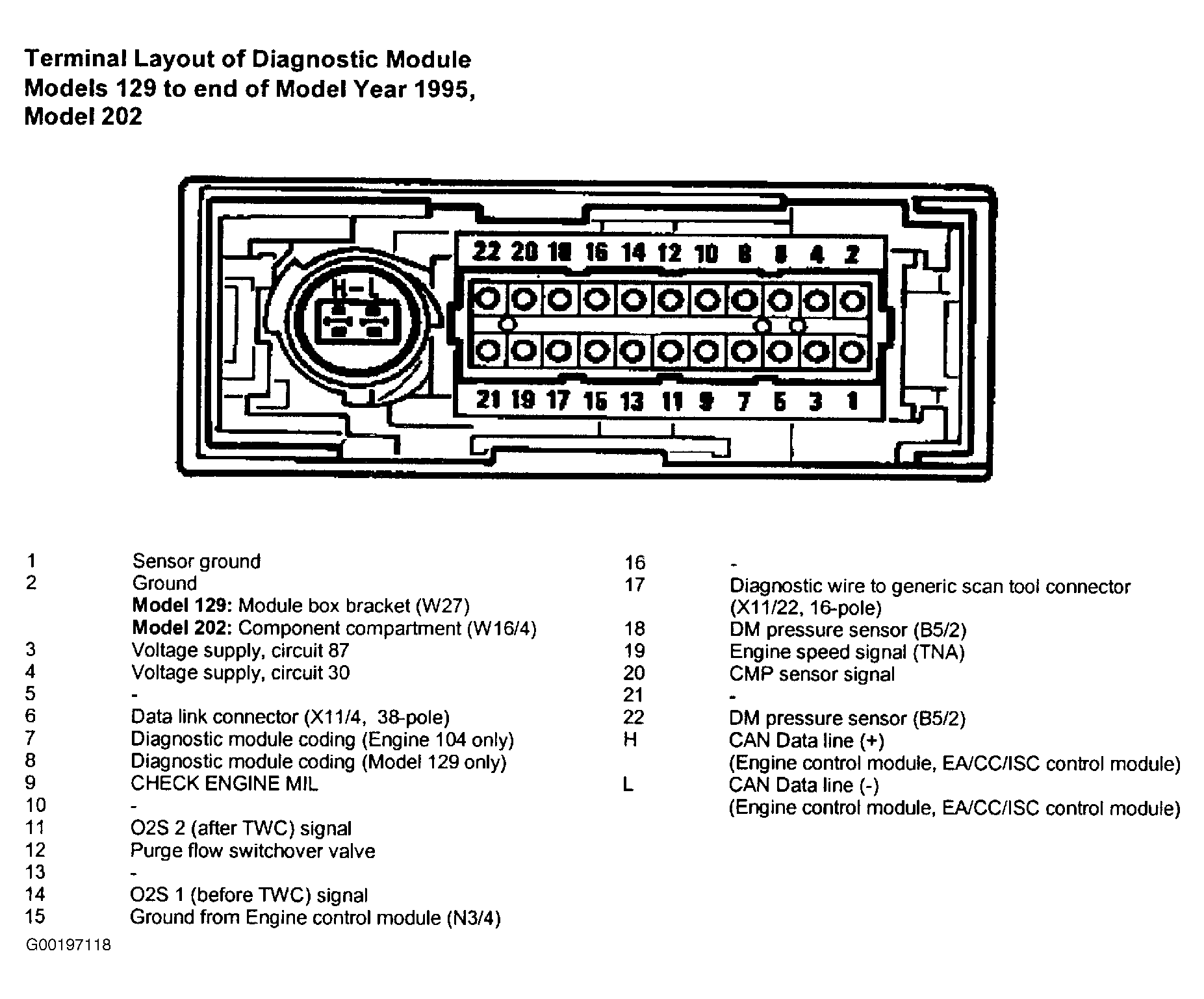

Fig 1: Identifying Diagnostic Module Connector Layout
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
