Electrical System Tests (Section 23)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS .

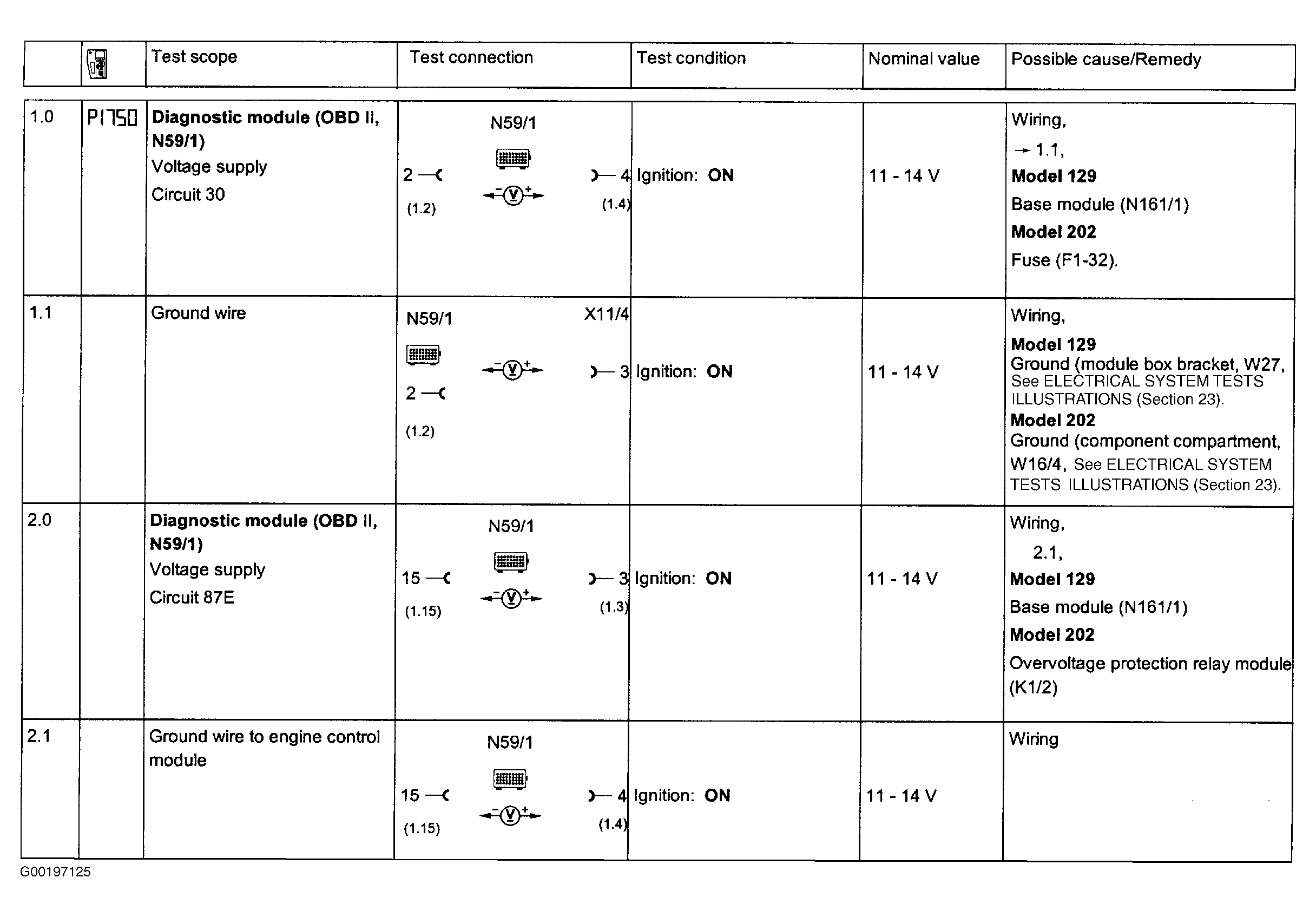

Fig 1: Electrical System Tests - Section 23 (Steps 1.0-2.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

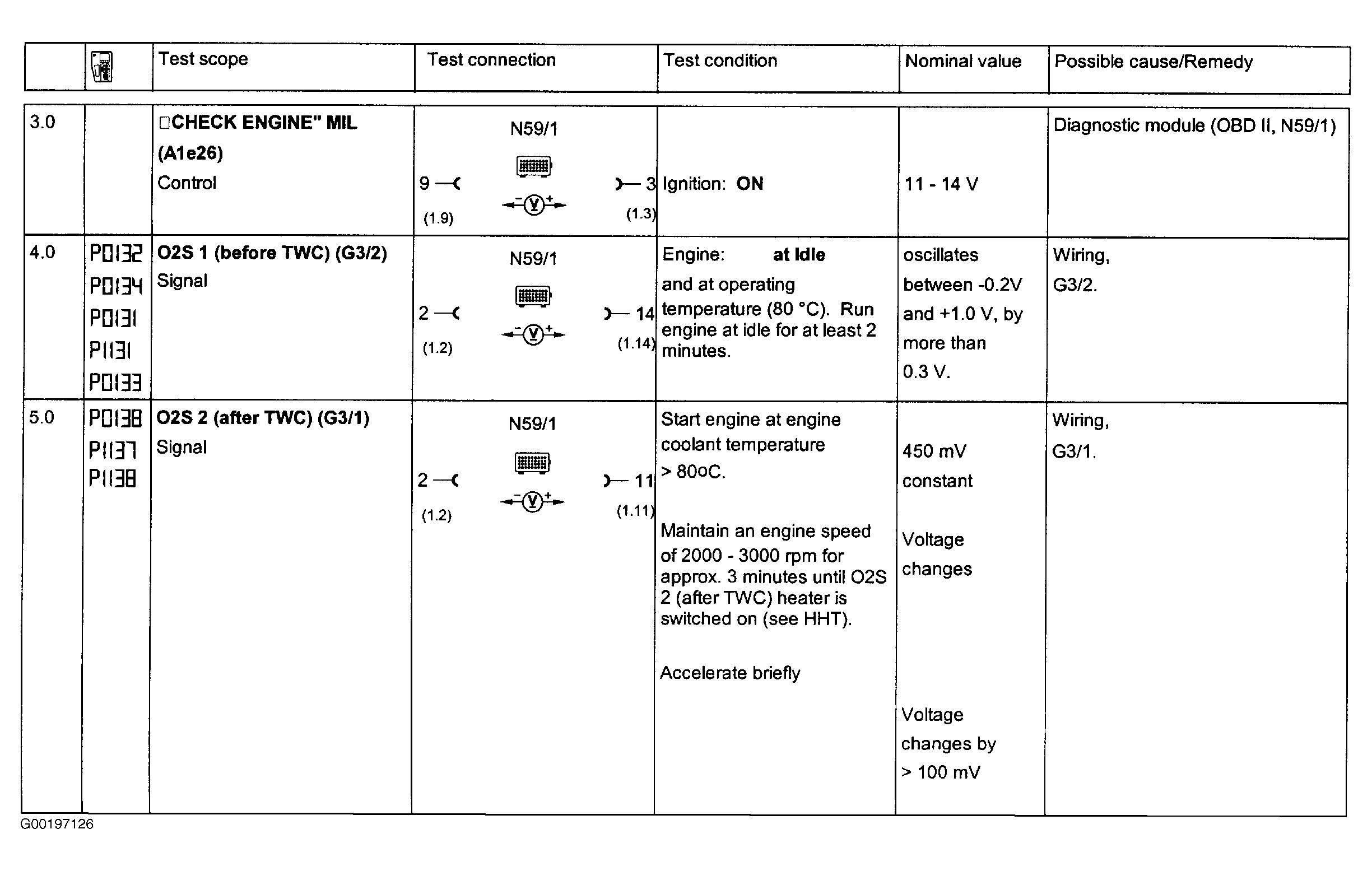

Fig 2: Electrical System Tests - Section 23 (Steps 3.0-5.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

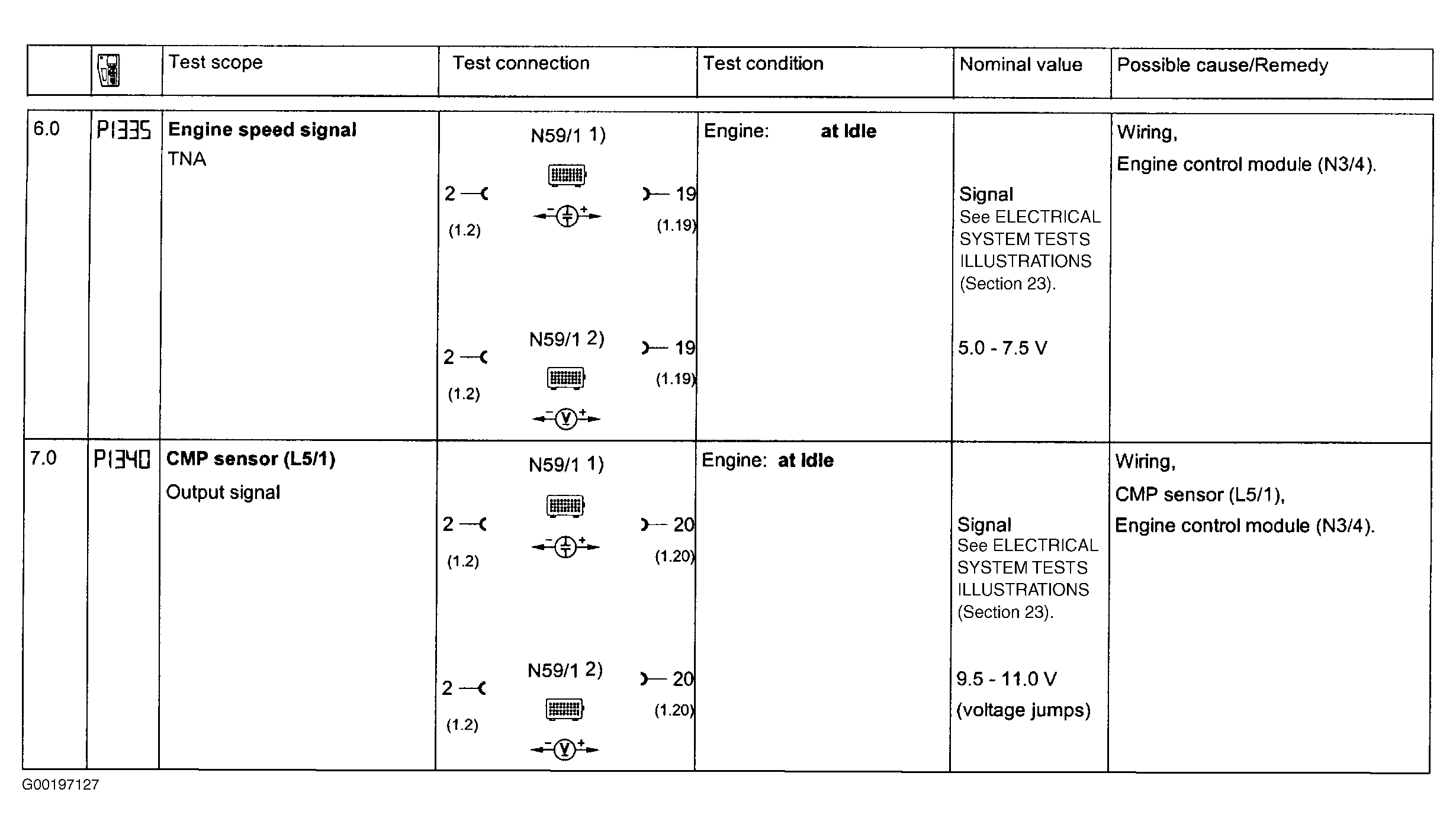

Fig 3: Electrical System Tests - Section 23 (Steps 6.0-7.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

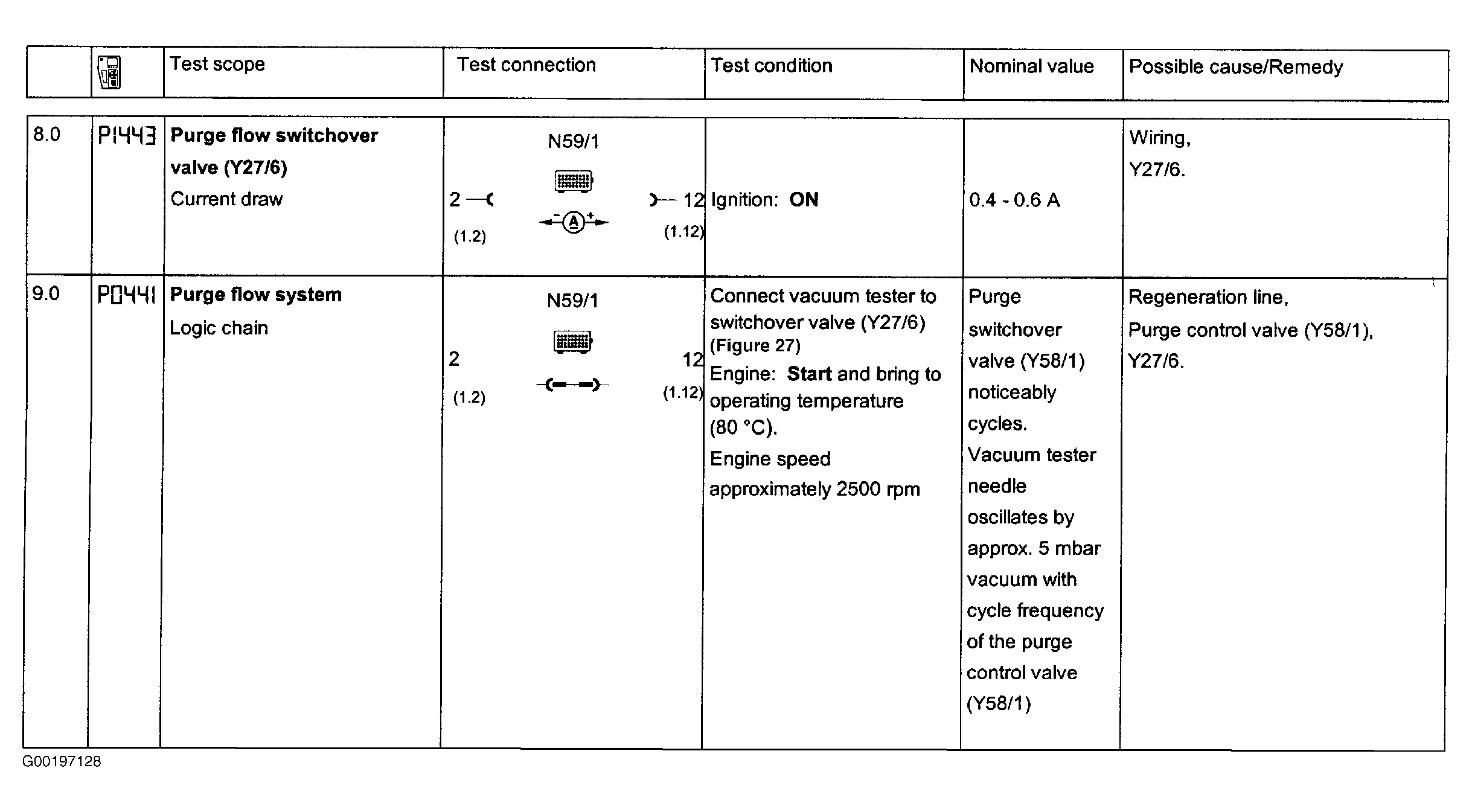

Fig 4: Electrical System Tests - Section 23 (Steps 8.0-9.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

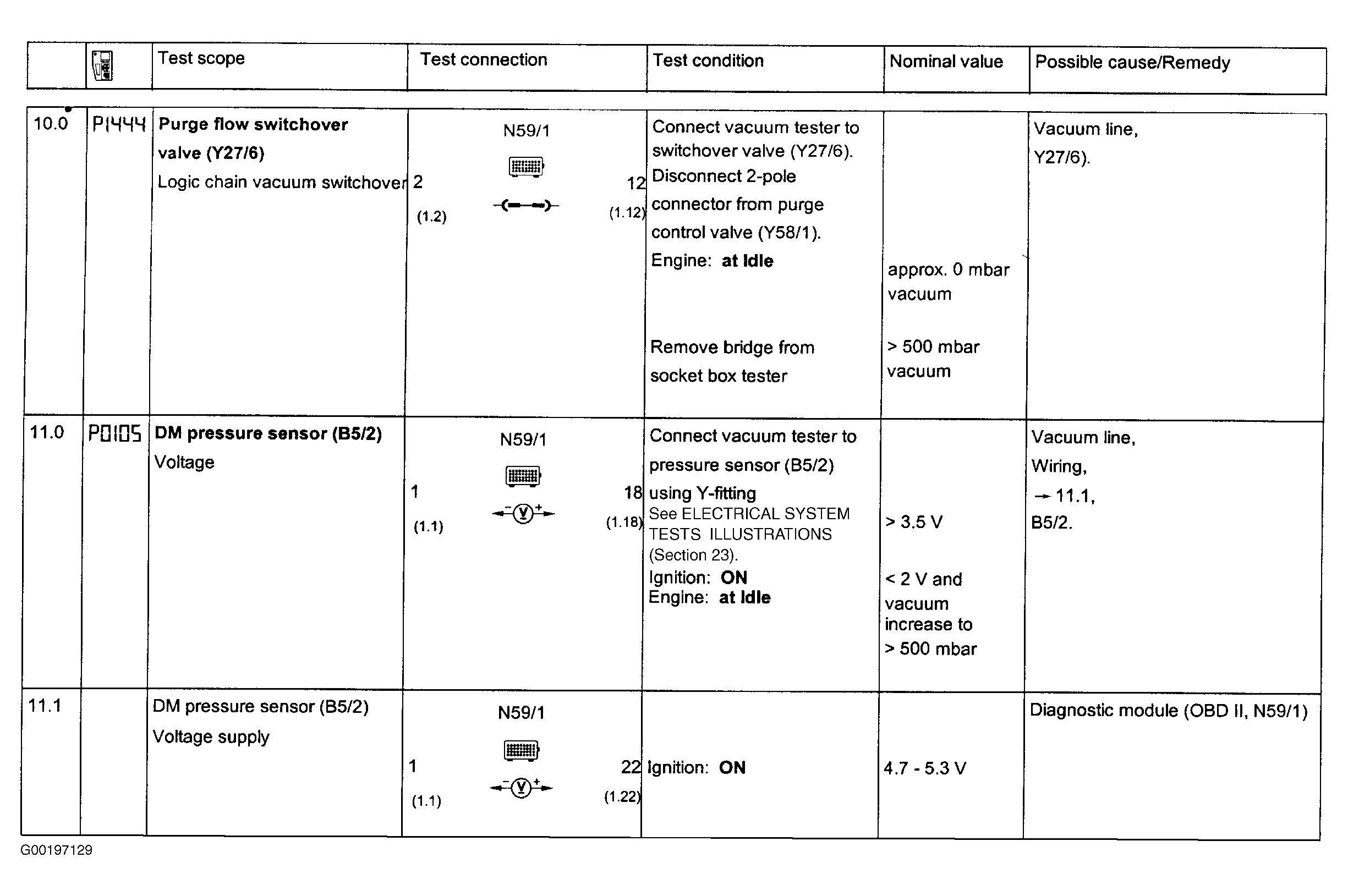

Fig 5: Electrical System Tests - Section 23 (Steps 10.0-11.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

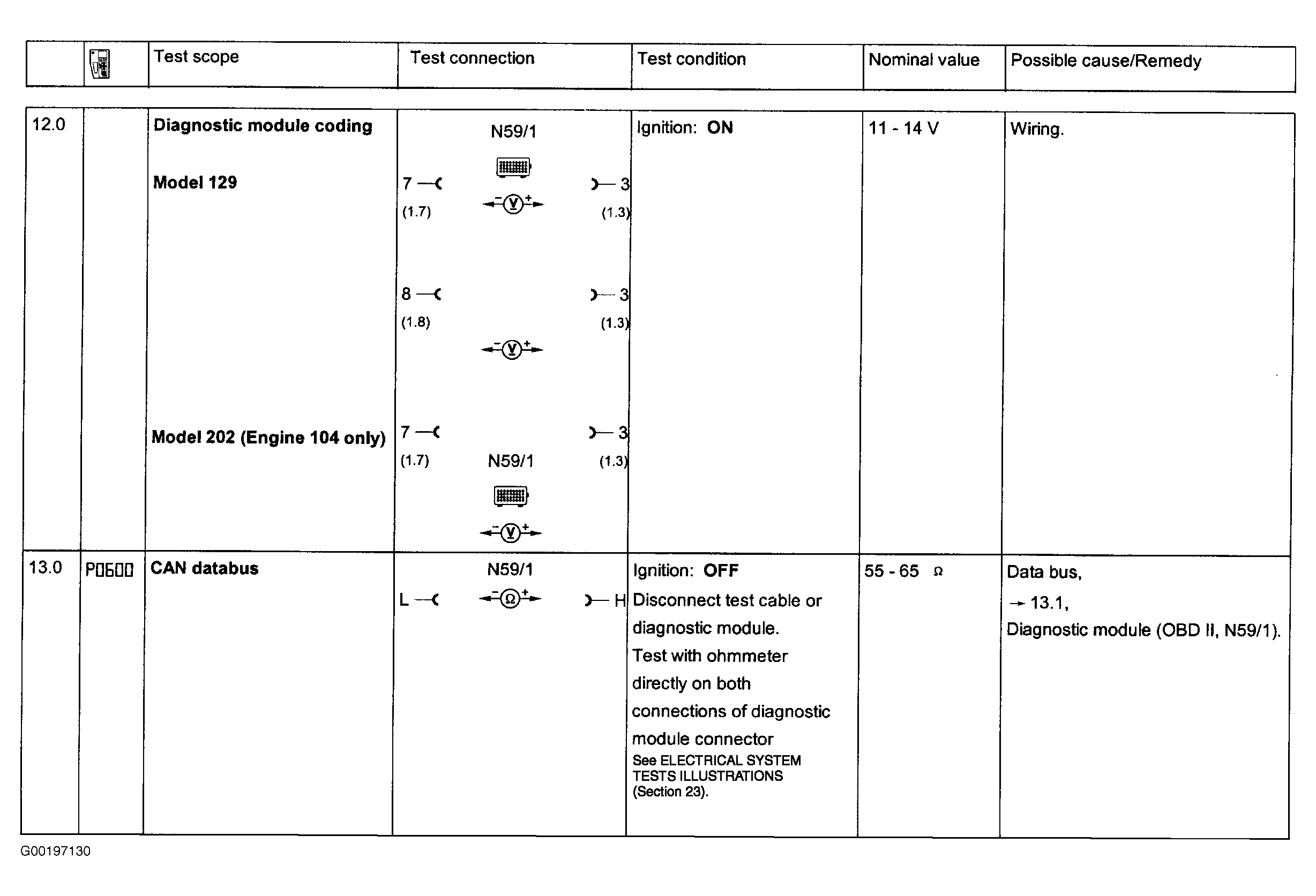

Fig 6: Electrical System Tests - Section 23 (Steps 12.0-13.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

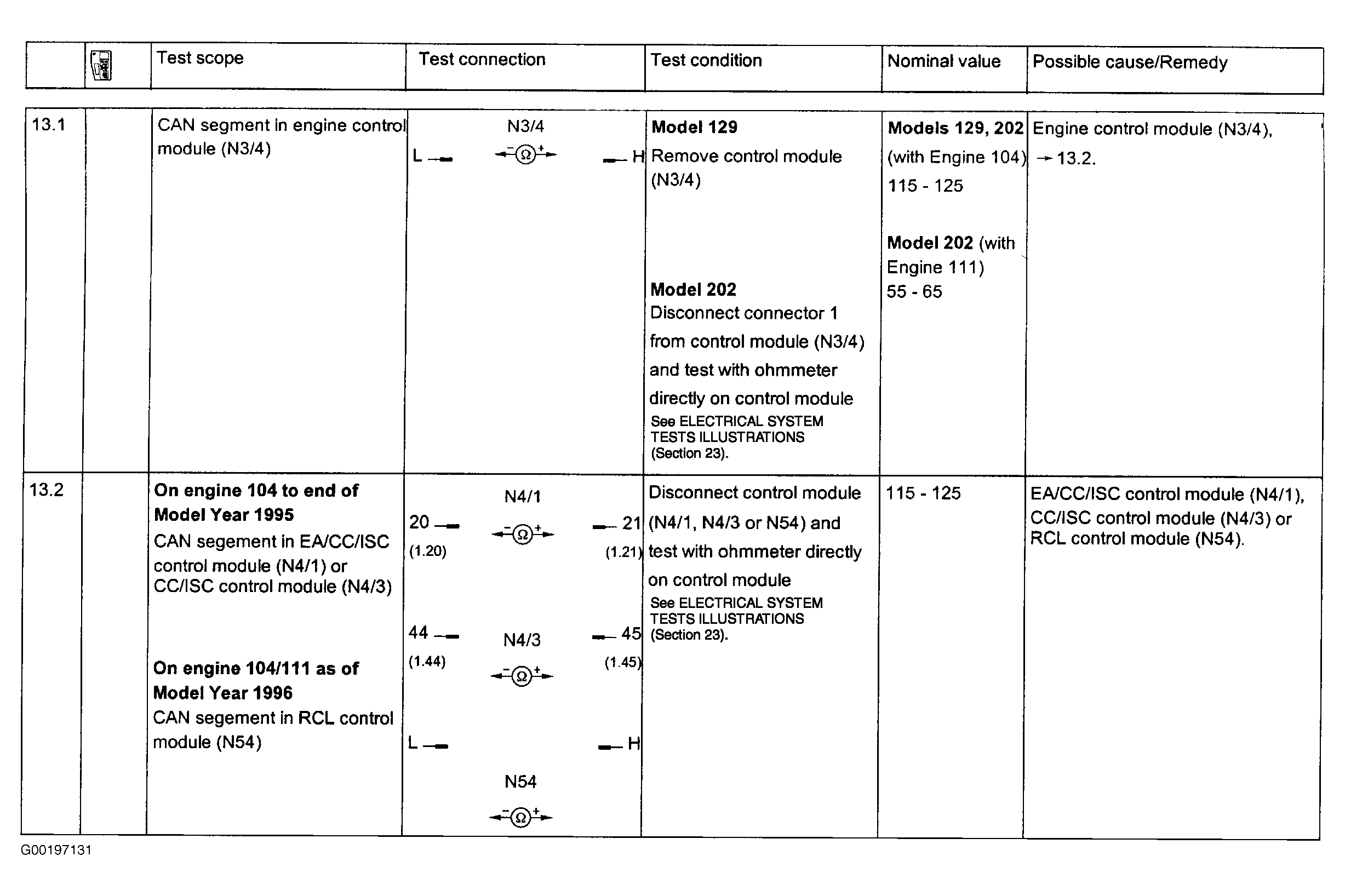

Fig 7: Electrical System Tests - Section 23 (Steps 13.1-13.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
