Connector Identification

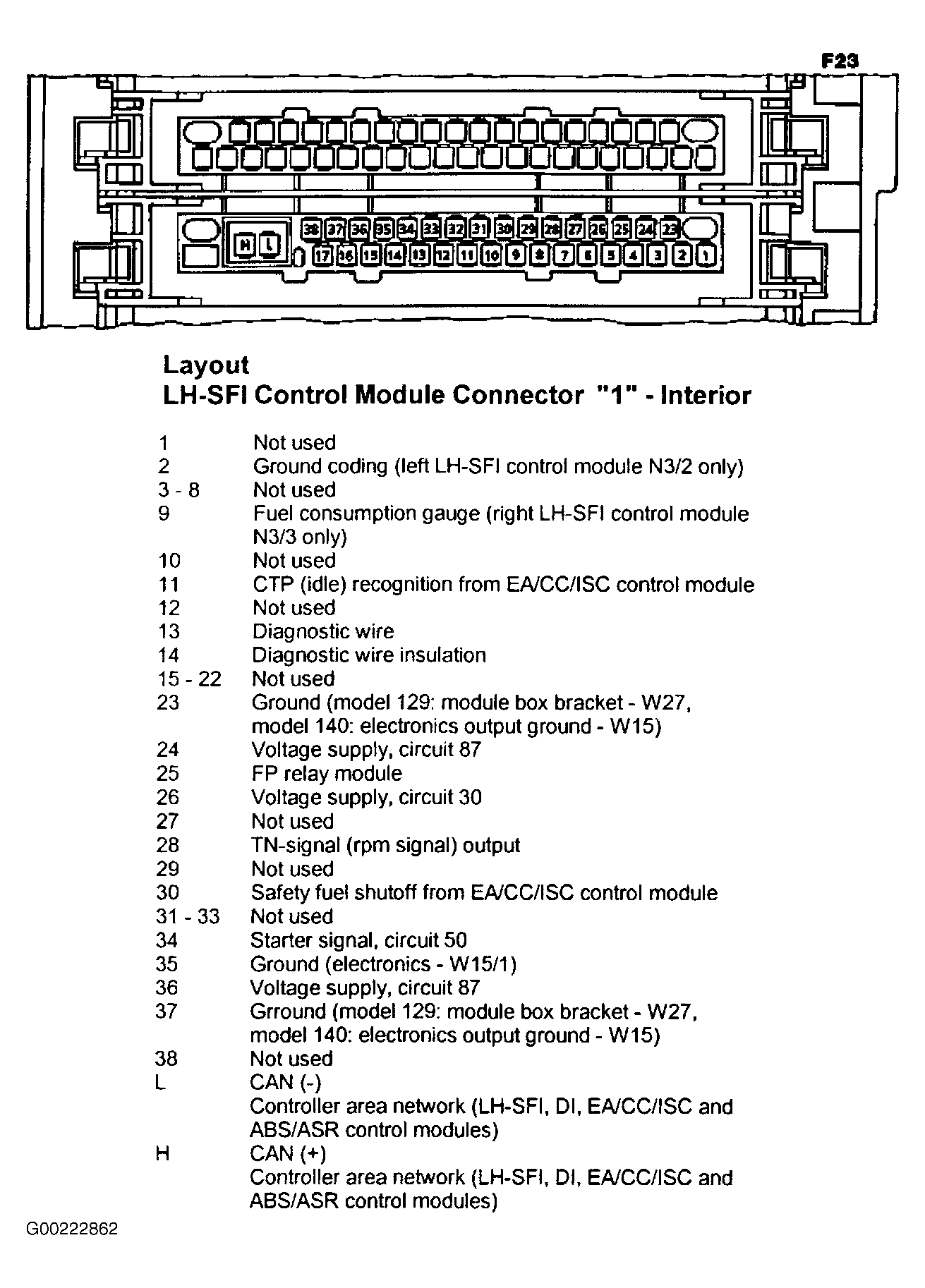

Fig 1: LH-SFI Control Module Connector (1 Interior) Pin Identification
G00222862Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

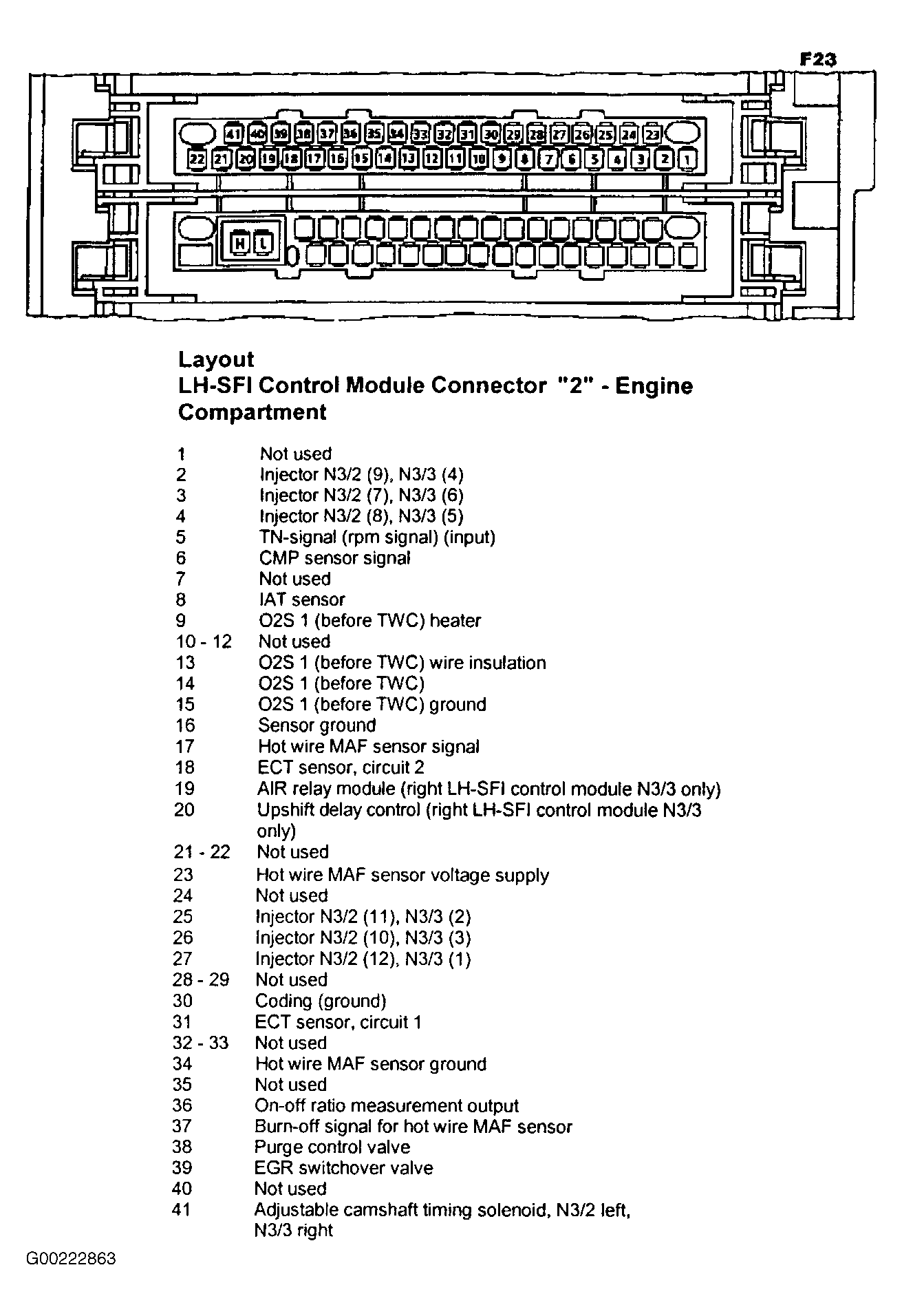

Fig 2: LH-SFI Control Module Connector (2 Engine Compartment) Pin Identification
G00222863Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
