Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

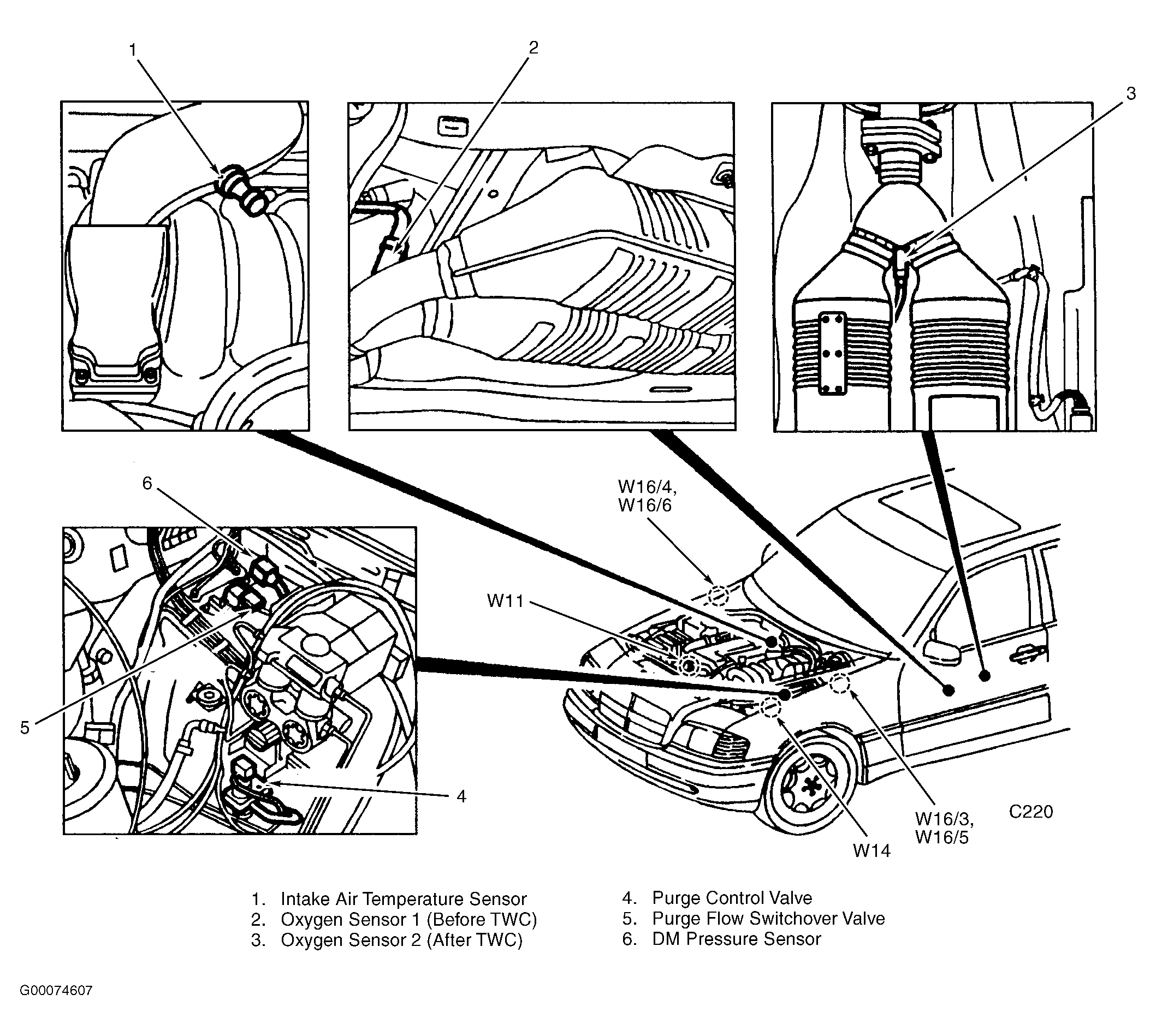

Fig 1: Front Of Vehicle (C220)
G00074607

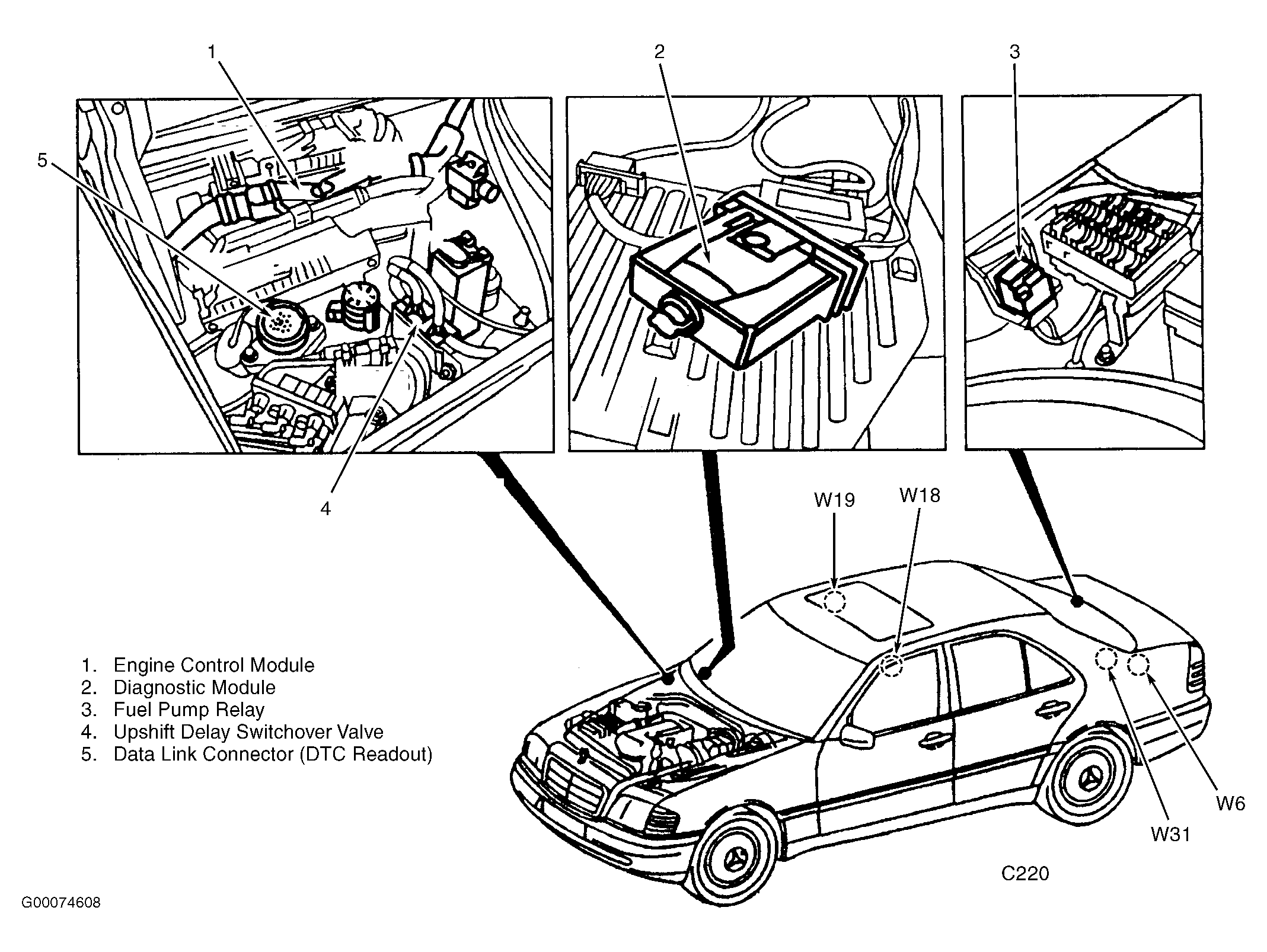

Fig 2: Left Side Of Vehicle (C220)
G00074608

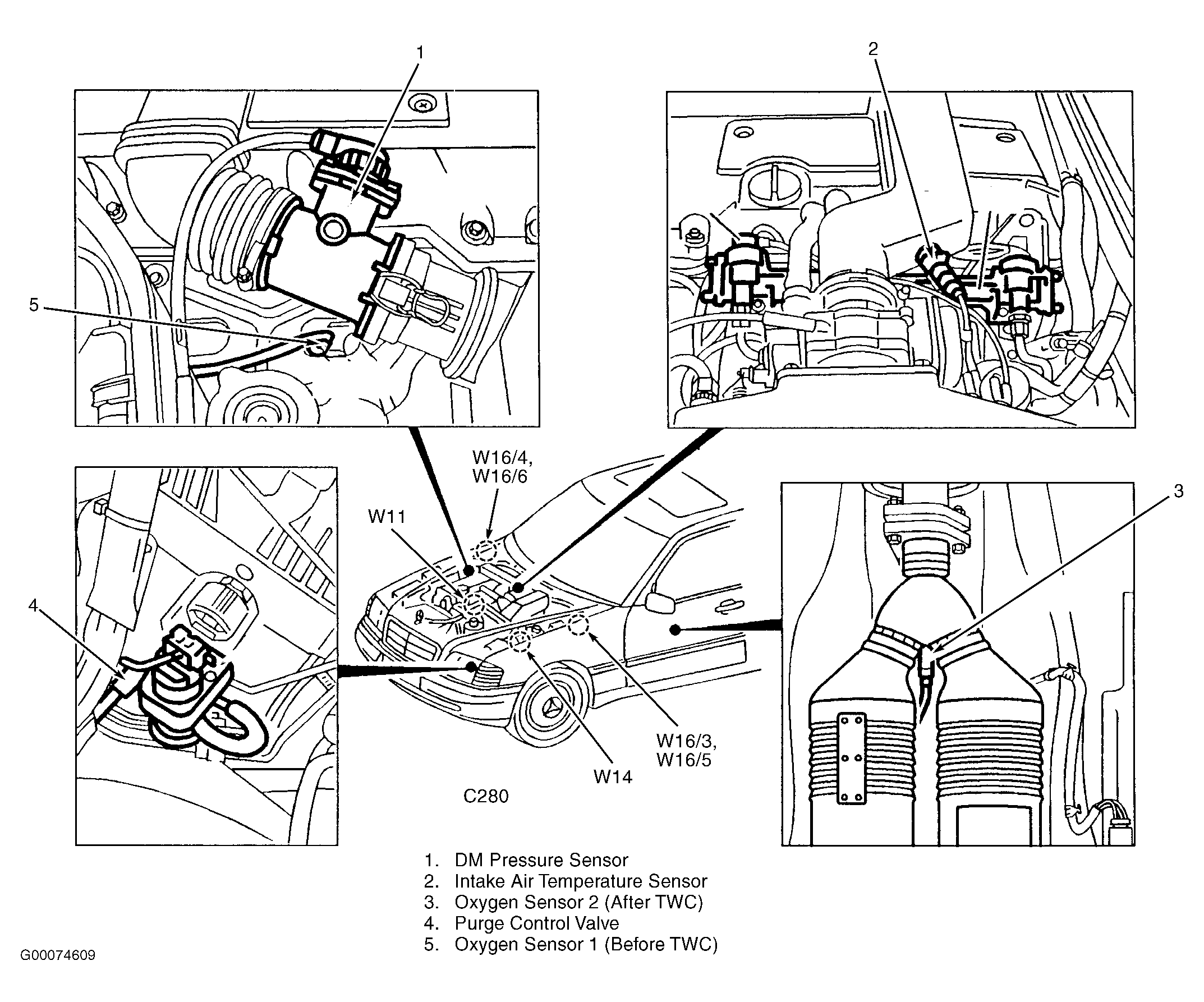

Fig 3: Front Of Vehicle (C280)
G00074609

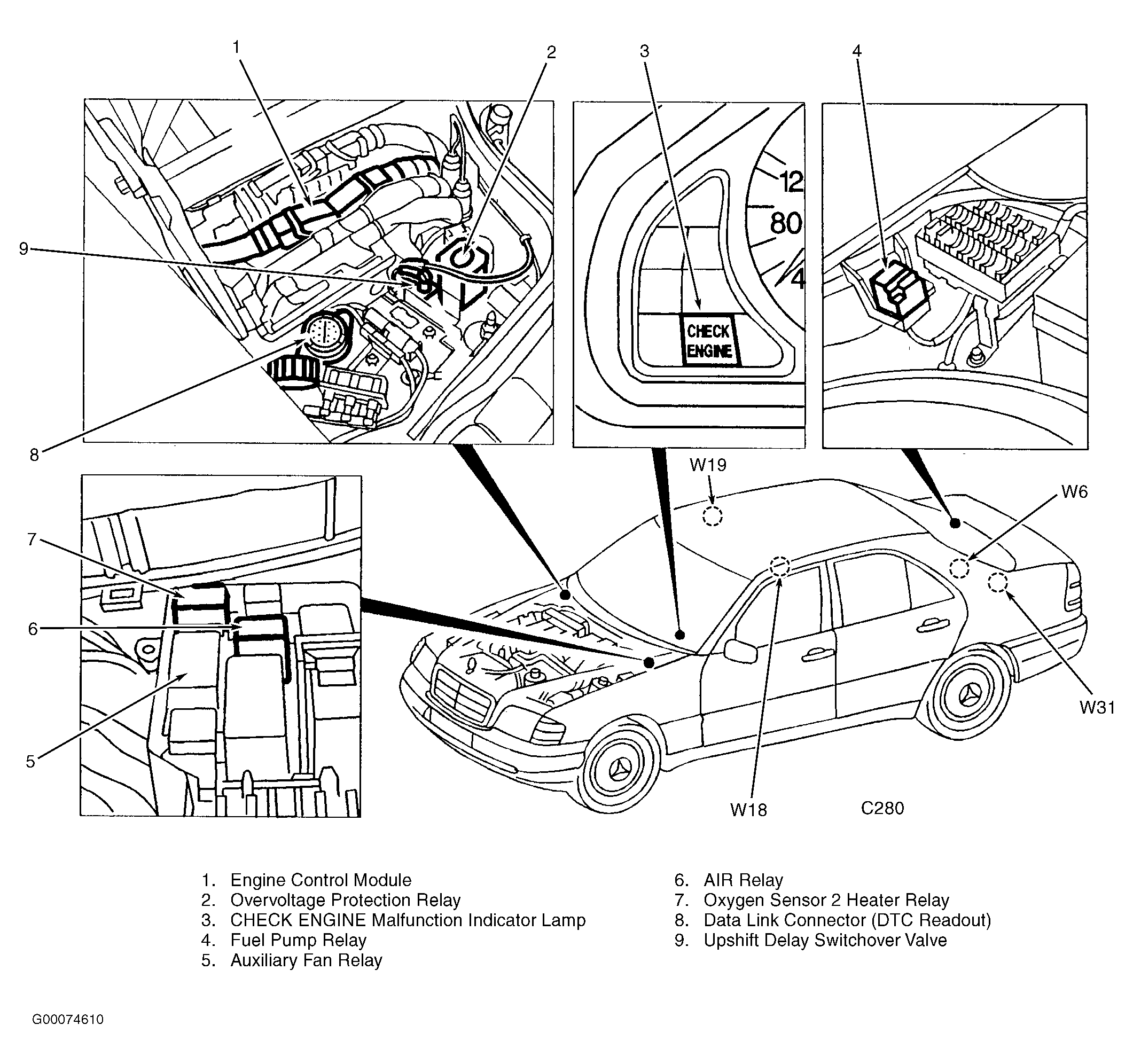

Fig 4: Left Side Of Vehicle (C280)
G00074610
