Connector Identification

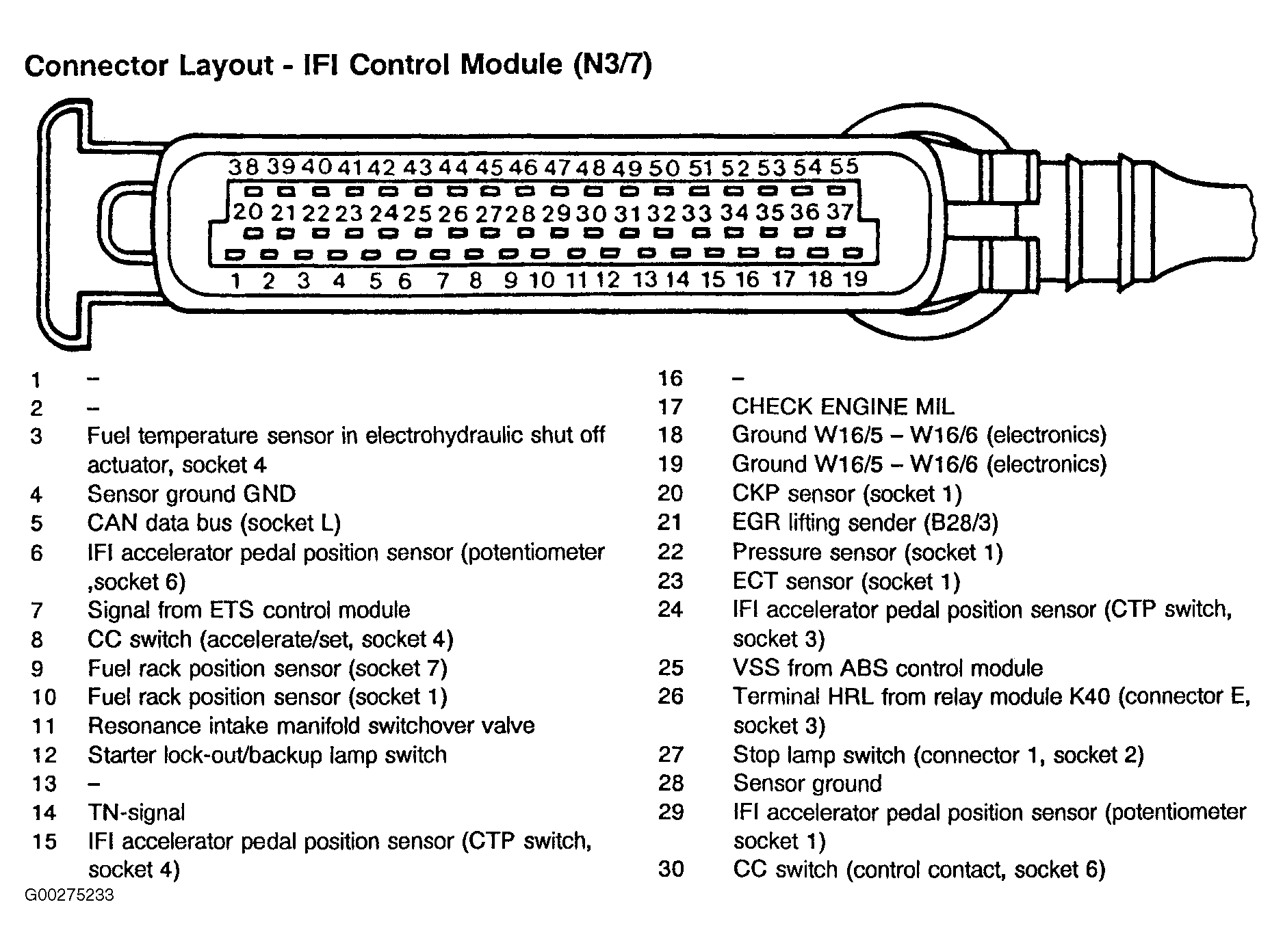

Fig 1: Inline Fuel Injection Control Module (IFI) Connector Terminal Identification (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

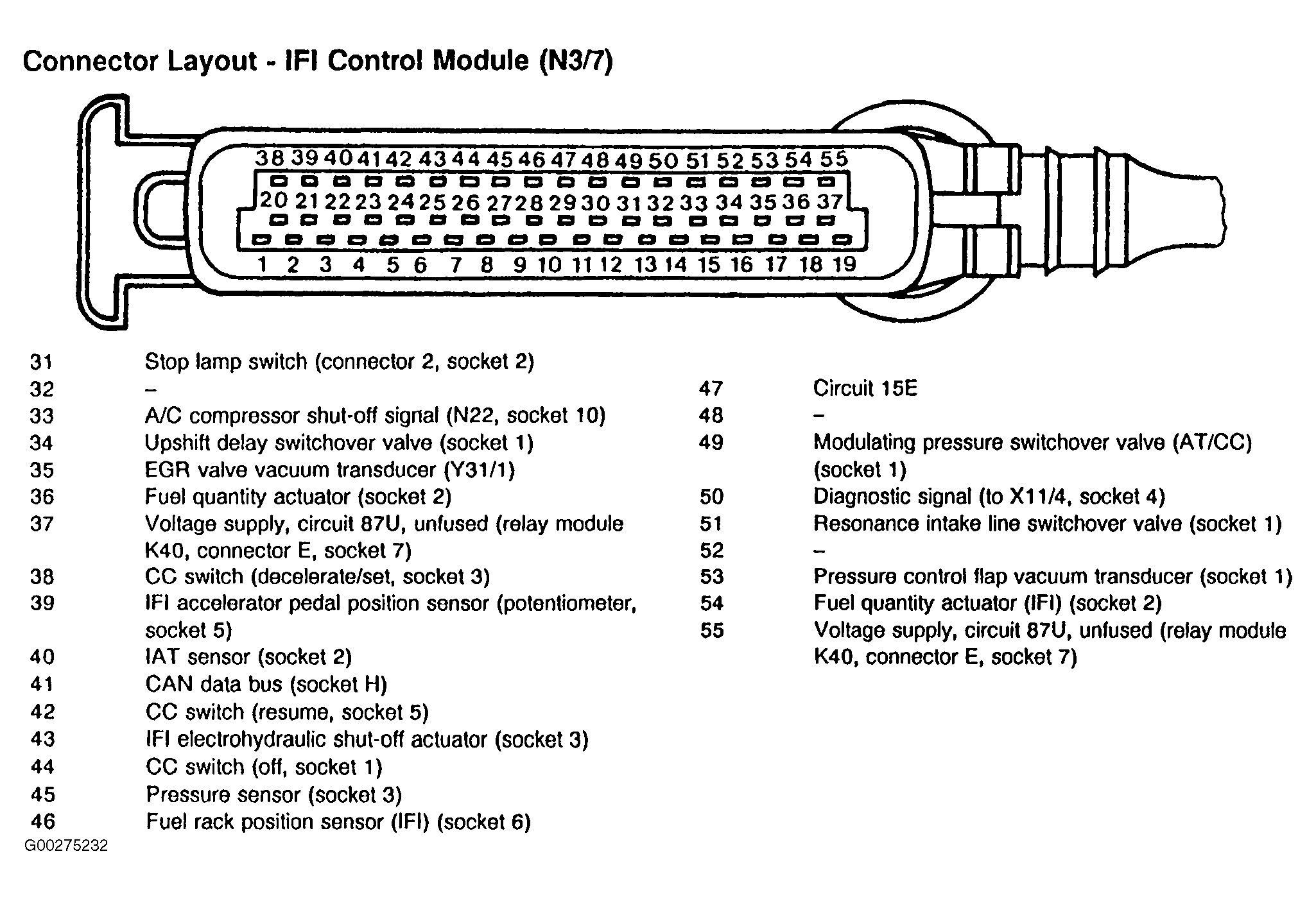

Fig 2: Inline Fuel Injection Control Module (IFI) Connector Terminal Identification (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

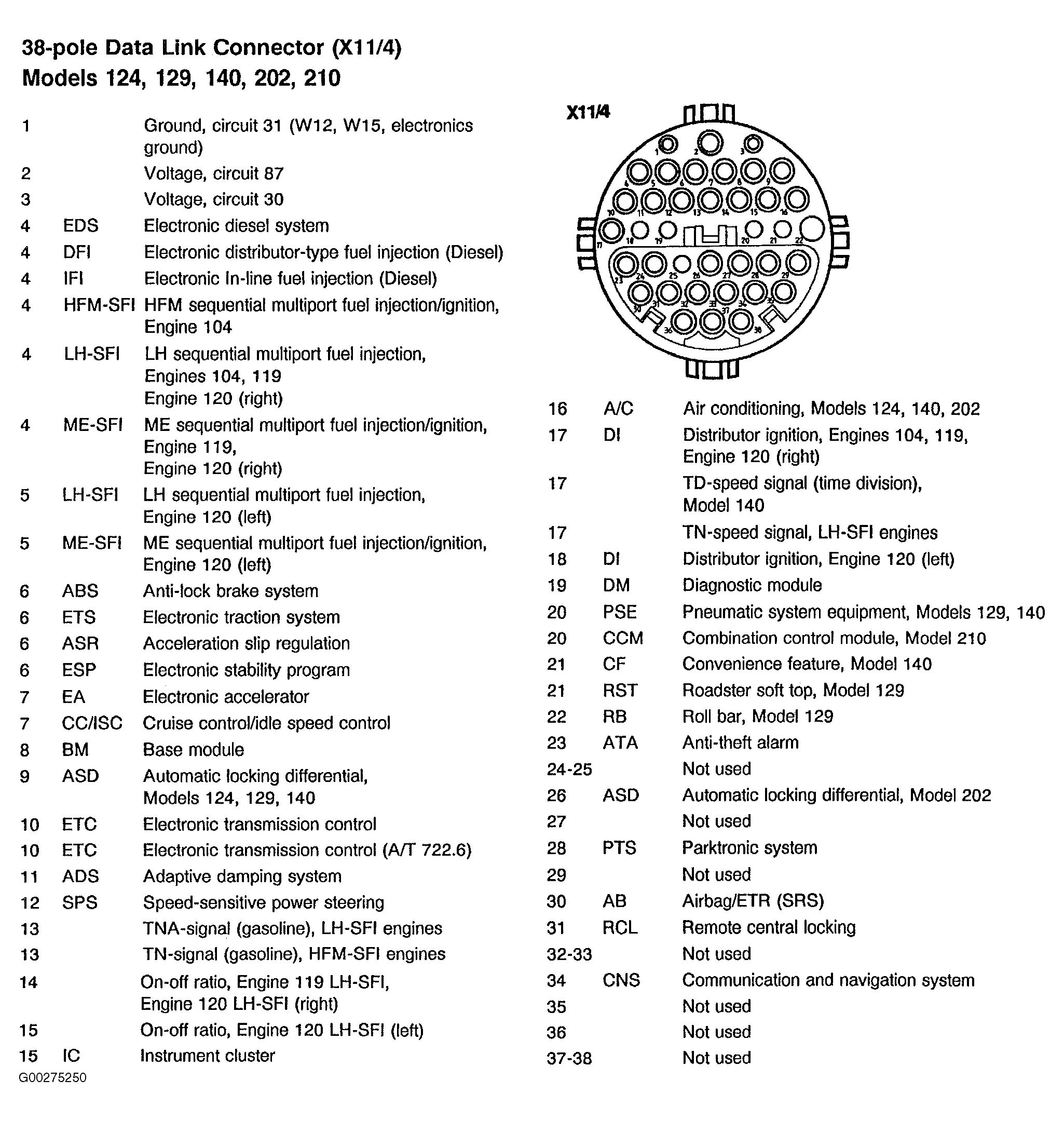

Fig 3: Mercedes 38-Pin Data Link Connector Terminal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

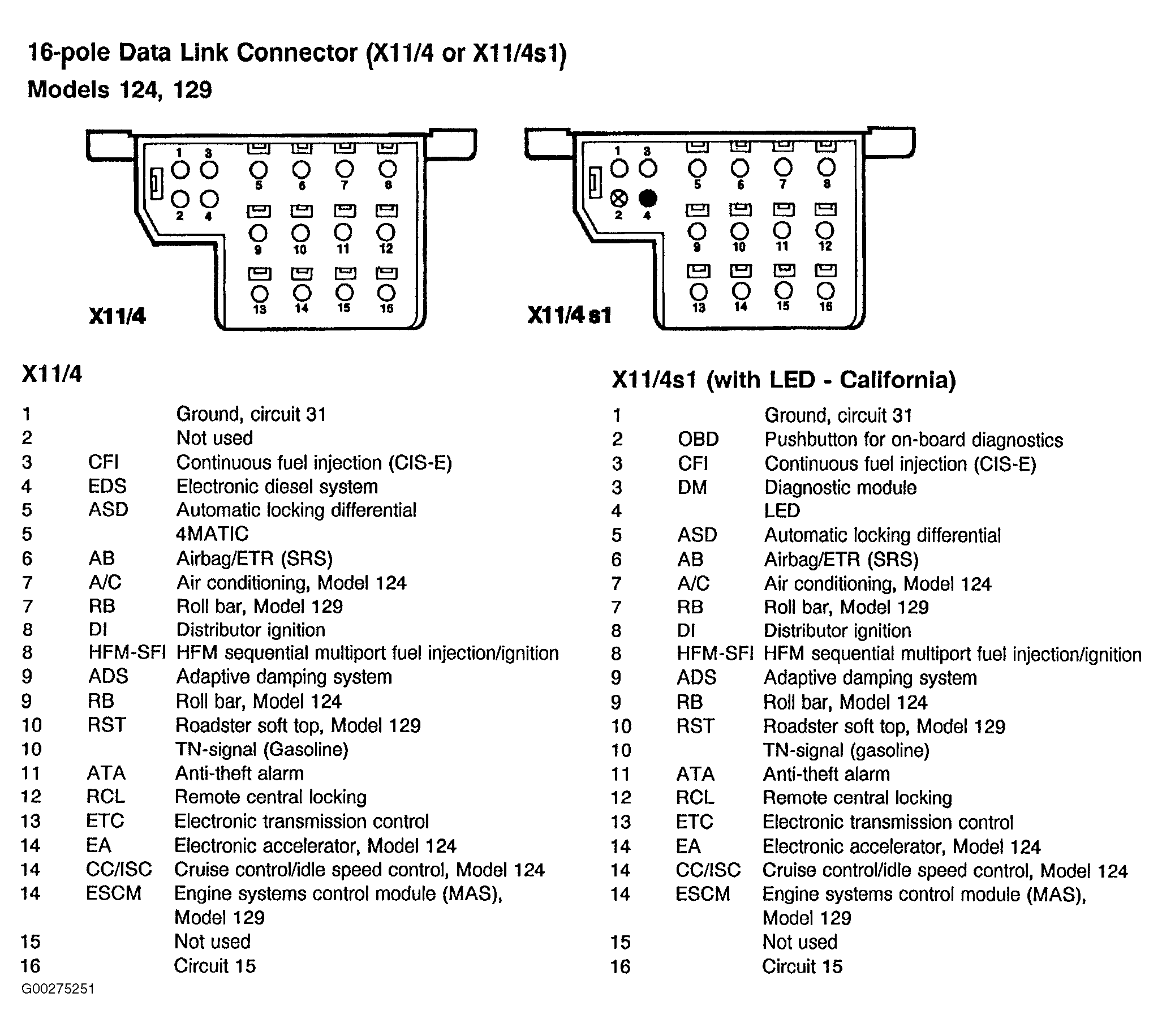

Fig 4: OBD-II 16-Pin Data Link Connector Terminal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
