Engine Control Module

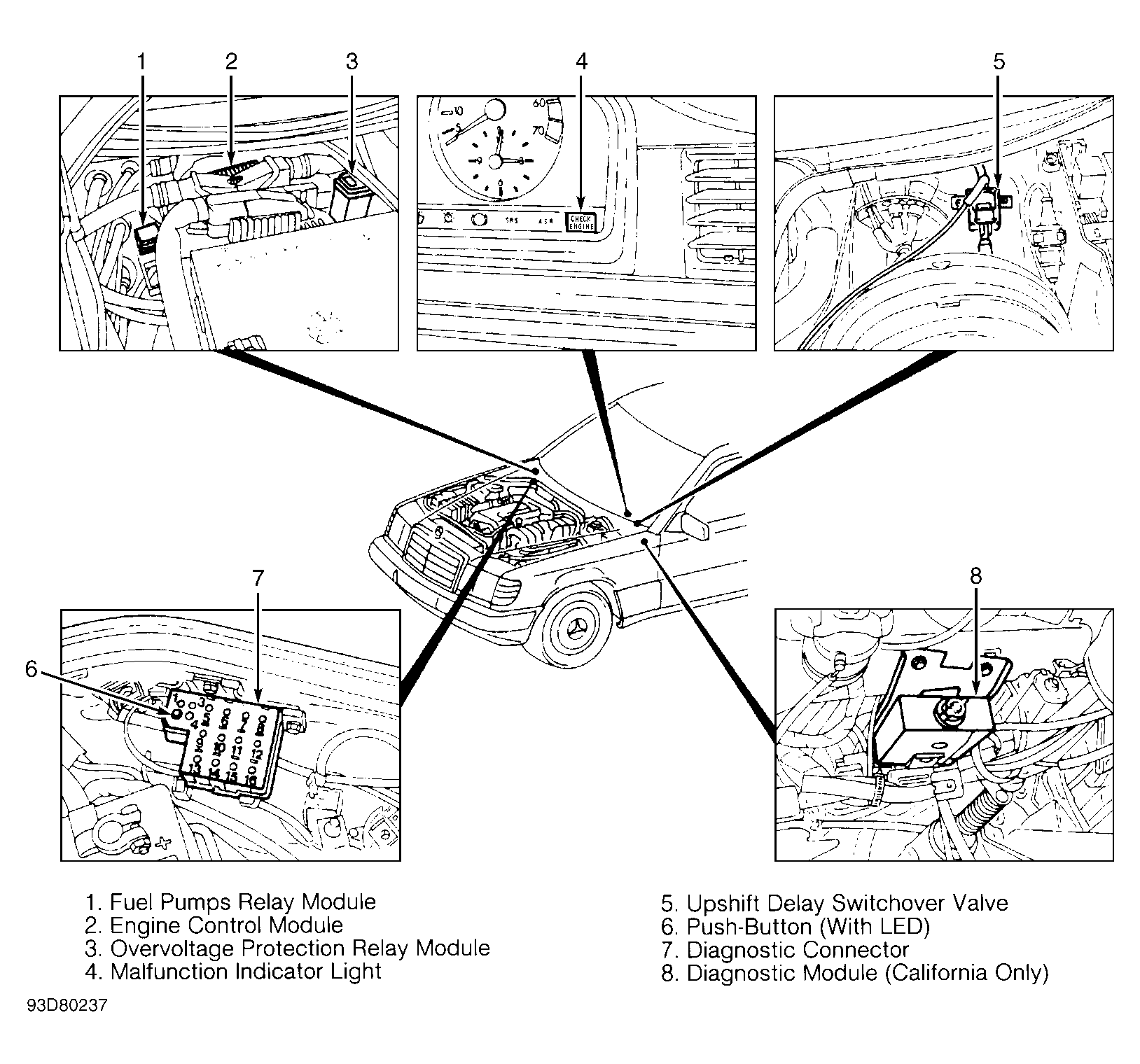

The engine control module is located in right rear corner of engine compartment in component compartment. See Figure . Voltage is supplied to engine control module from overvoltage protection relay. The engine control module receives engine operating information from sensors and controls fuel injection and ignition timing.
