Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Traction Systems (ASR, ETS) & SPS

Fig 2: Vehicle Overview (ESP & SPS)

Fig 3: Vehicle Overview (S420, S500 & S600)

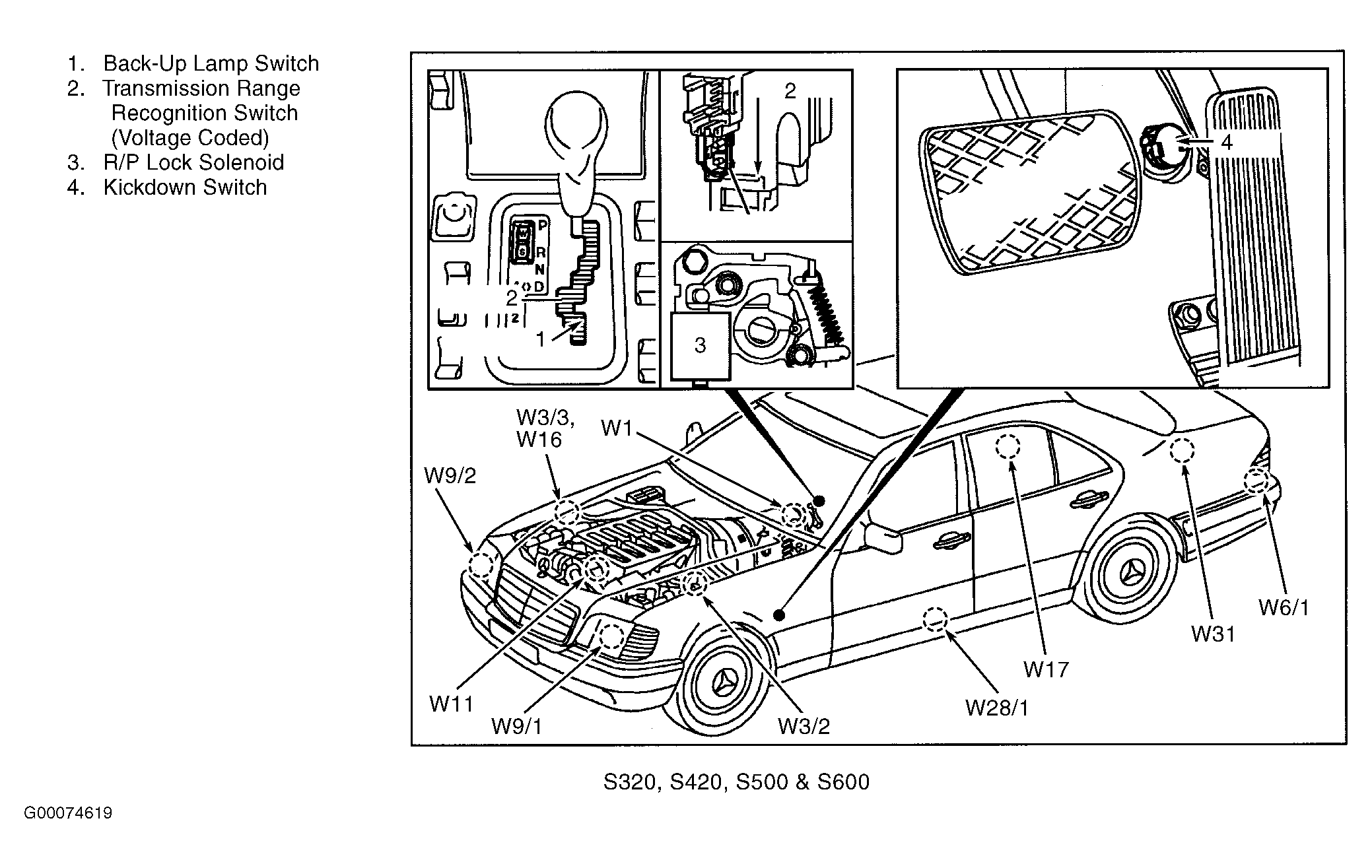

Fig 4: Vehicle Overview (S320, S420, S500 & S600)

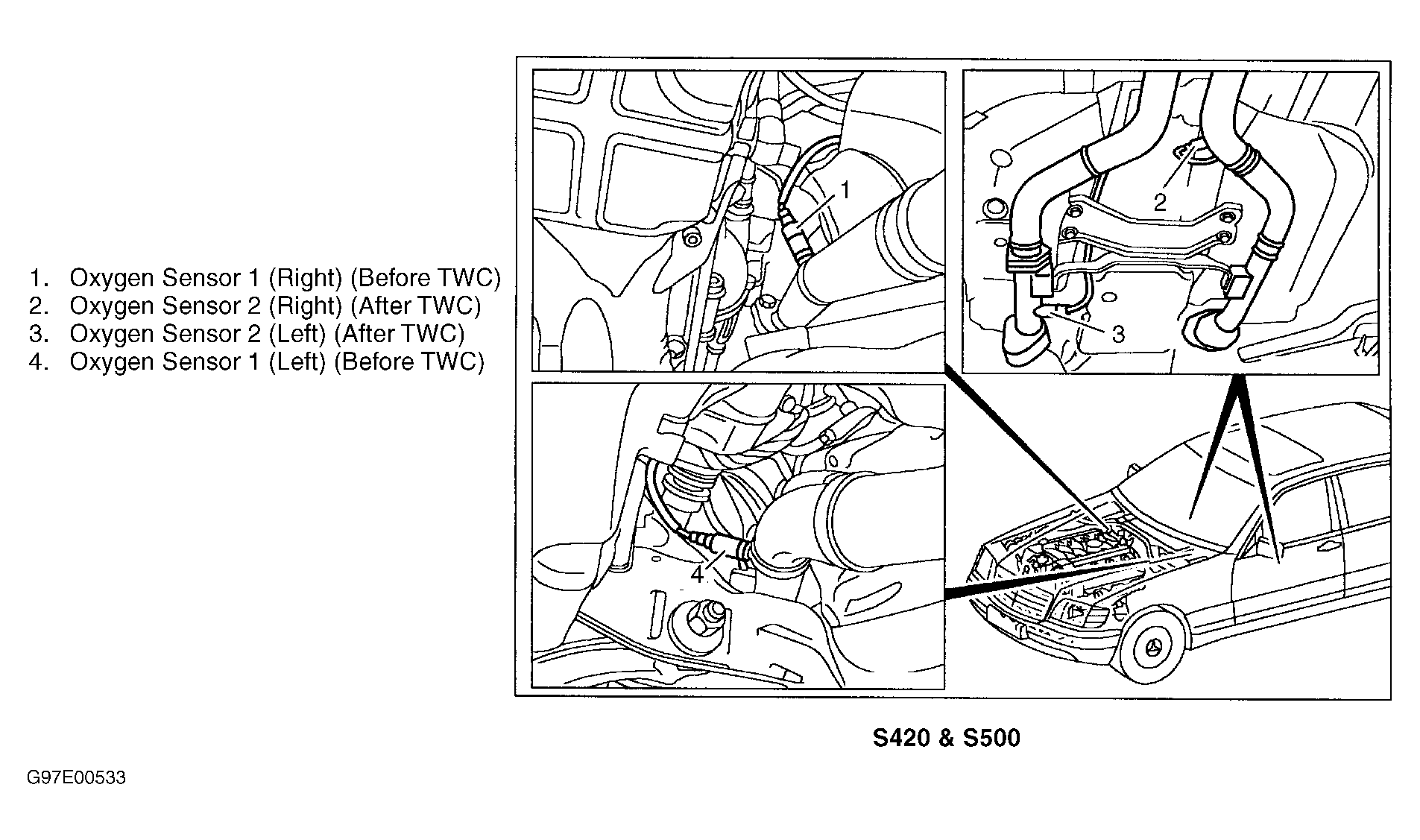

Fig 5: Vehicle Overview (S420 & S500)

Fig 6: Vehicle Overview (S420 & S500)

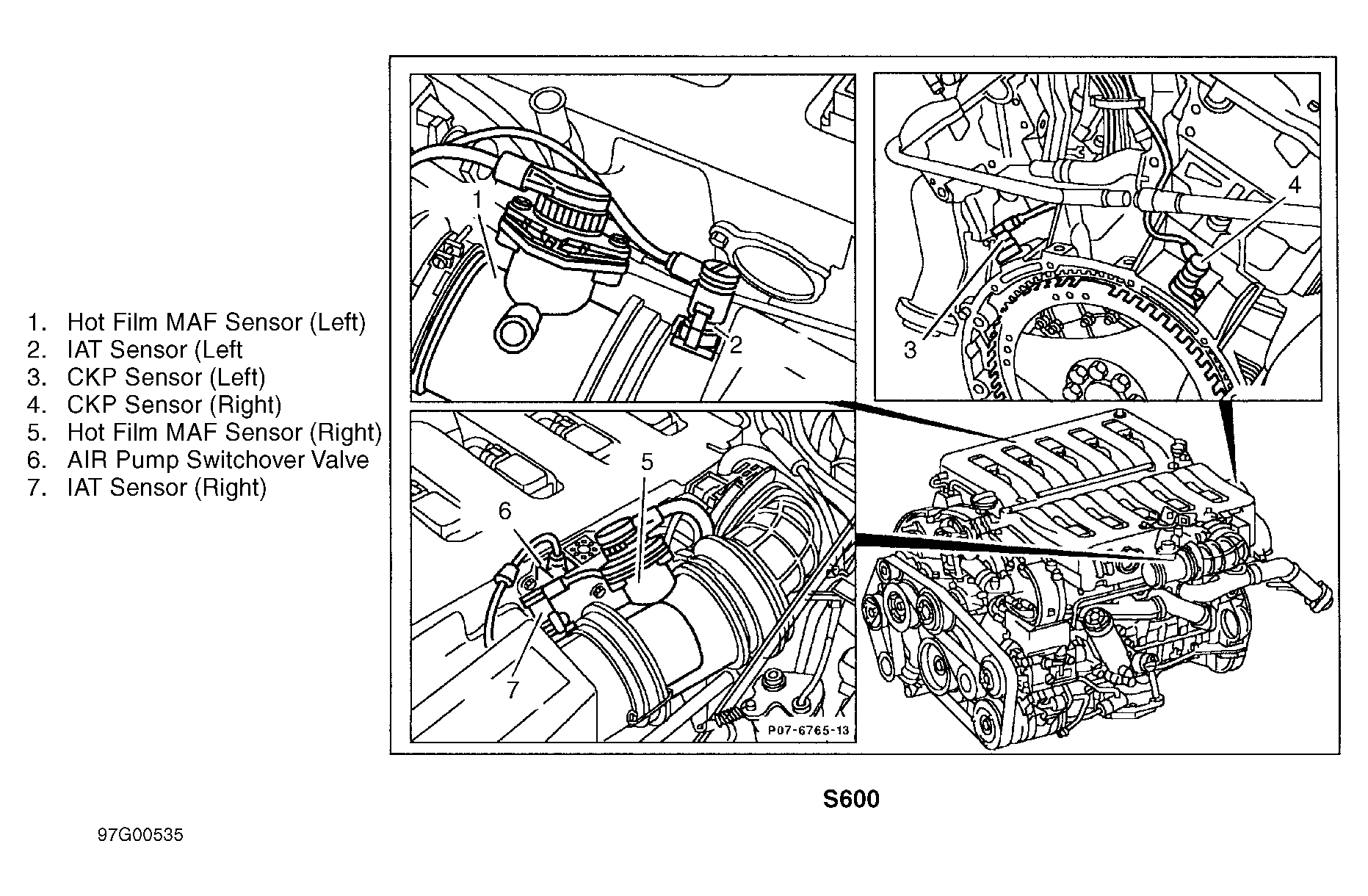

Fig 7: Engine (S600)

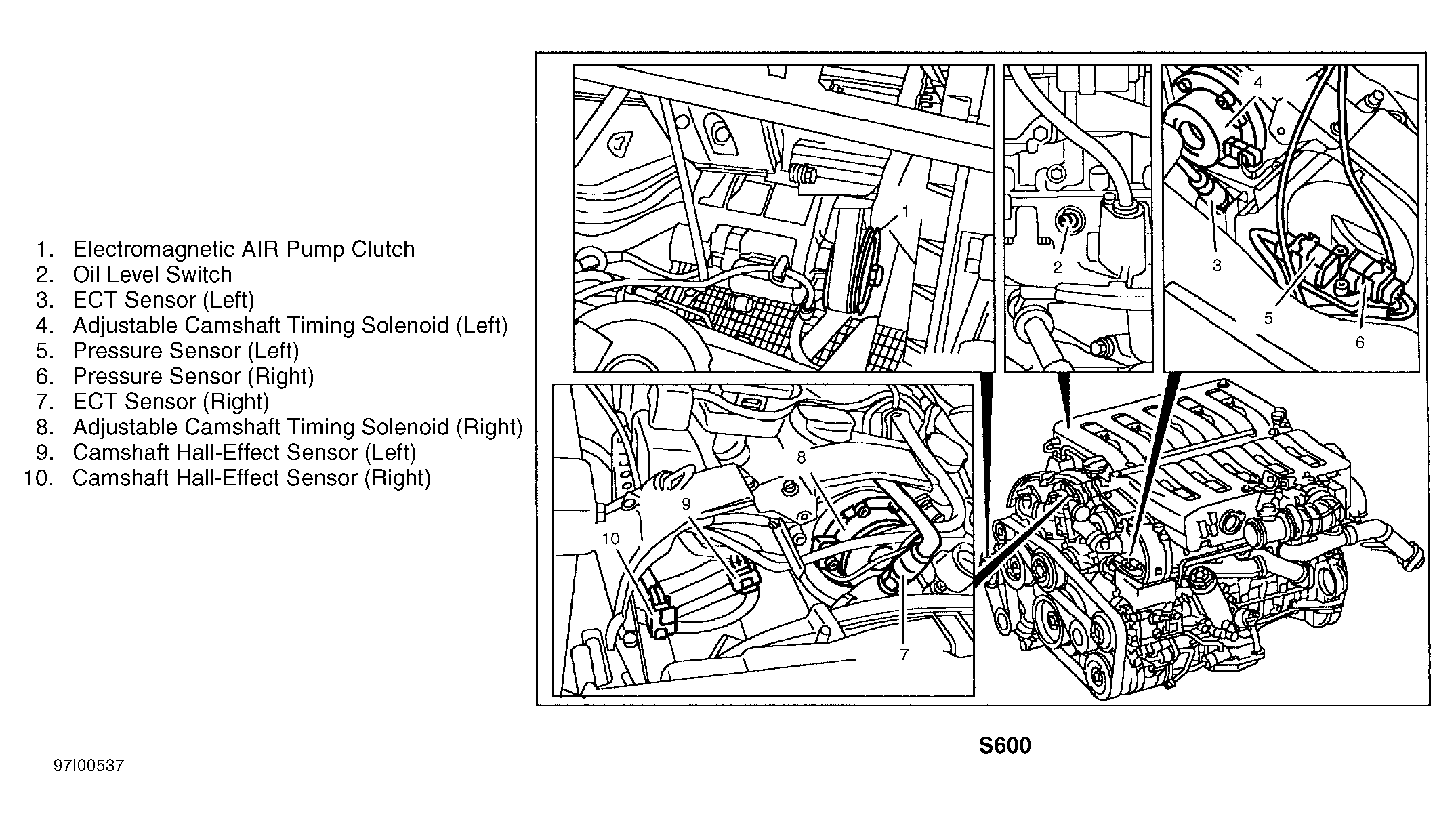

Fig 8: Engine (S600)

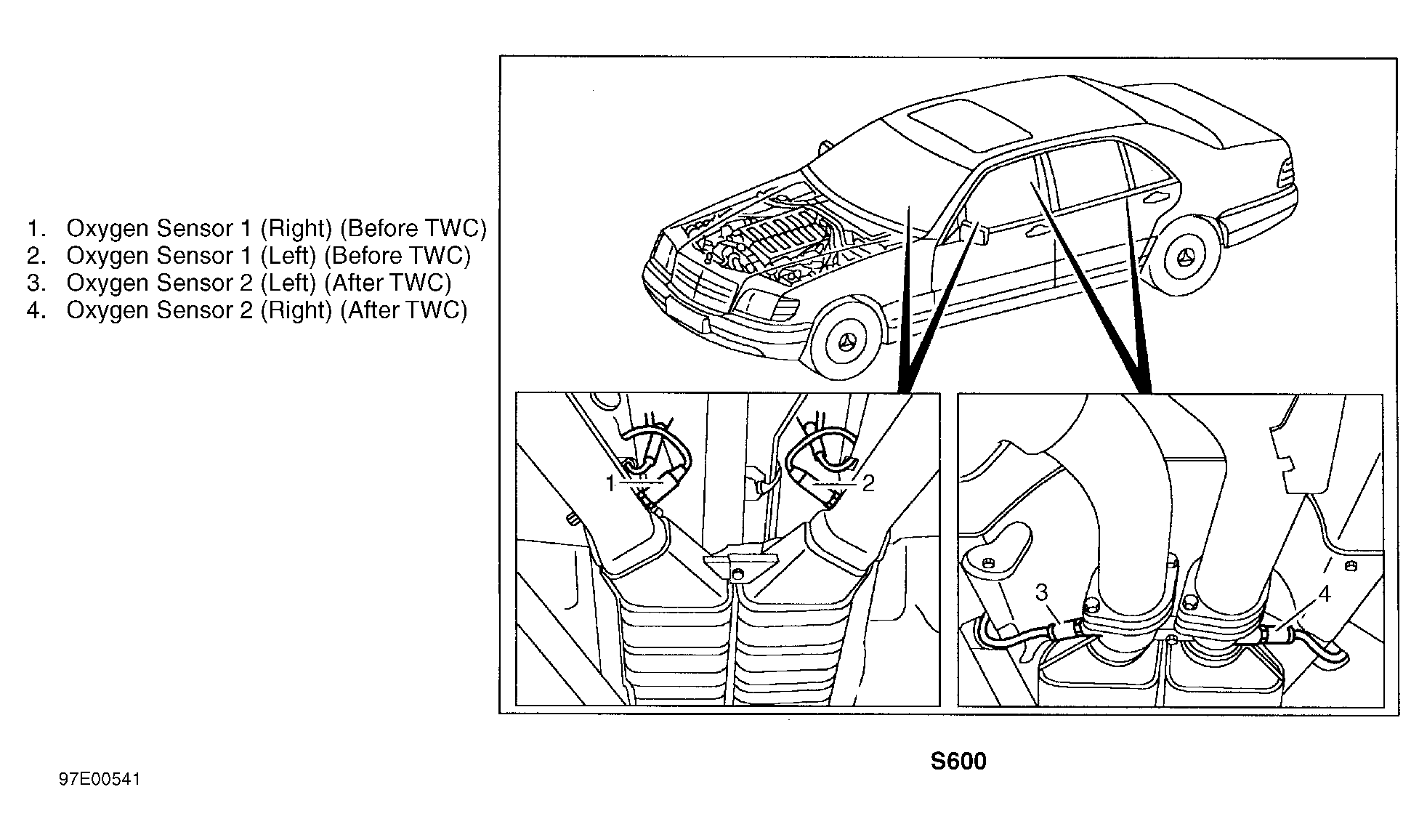

Fig 9: Vehicle Overview (S600)

Fig 10: Vehicle Overview (S600)
