Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

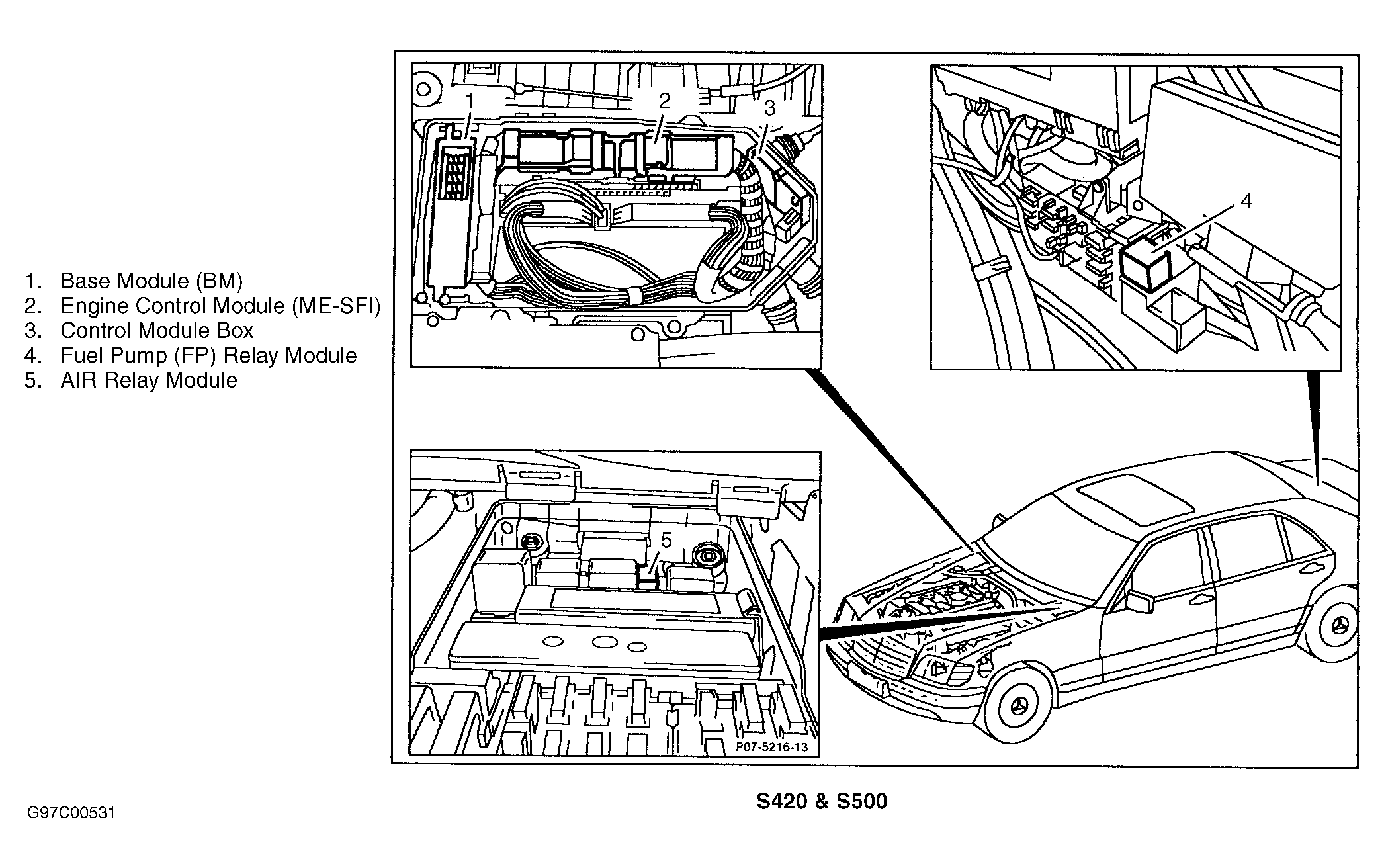

| AIR Relay Module (S420 & S500) | On left rear of engine compartment. See Figure . |

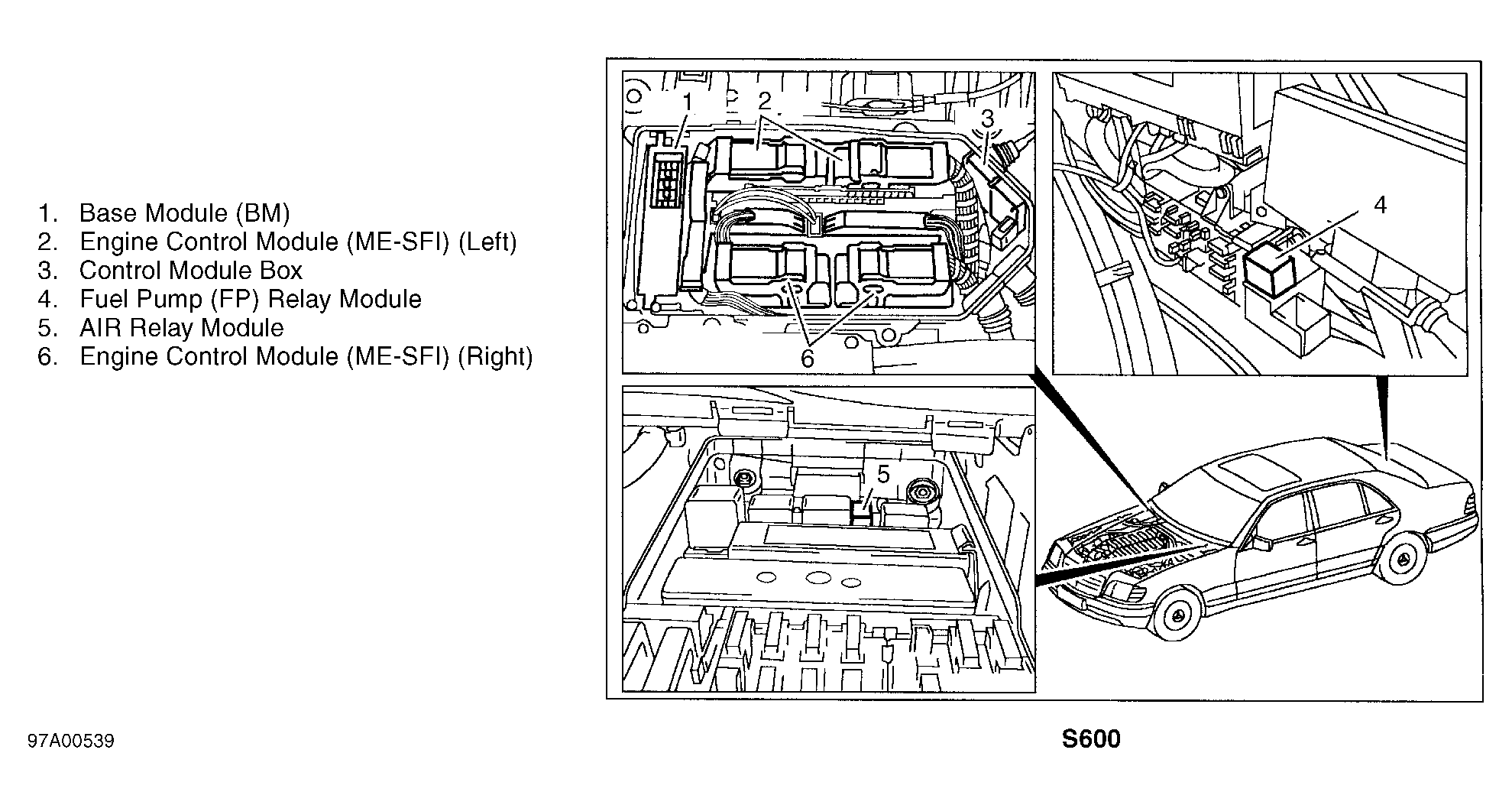

| AIR Relay Module (S600) | On left rear of engine compartment. See Figure . |
| Anti-Theft Alarm (ATA) Control Module | On right side of luggage compartment, behind trim panel. |

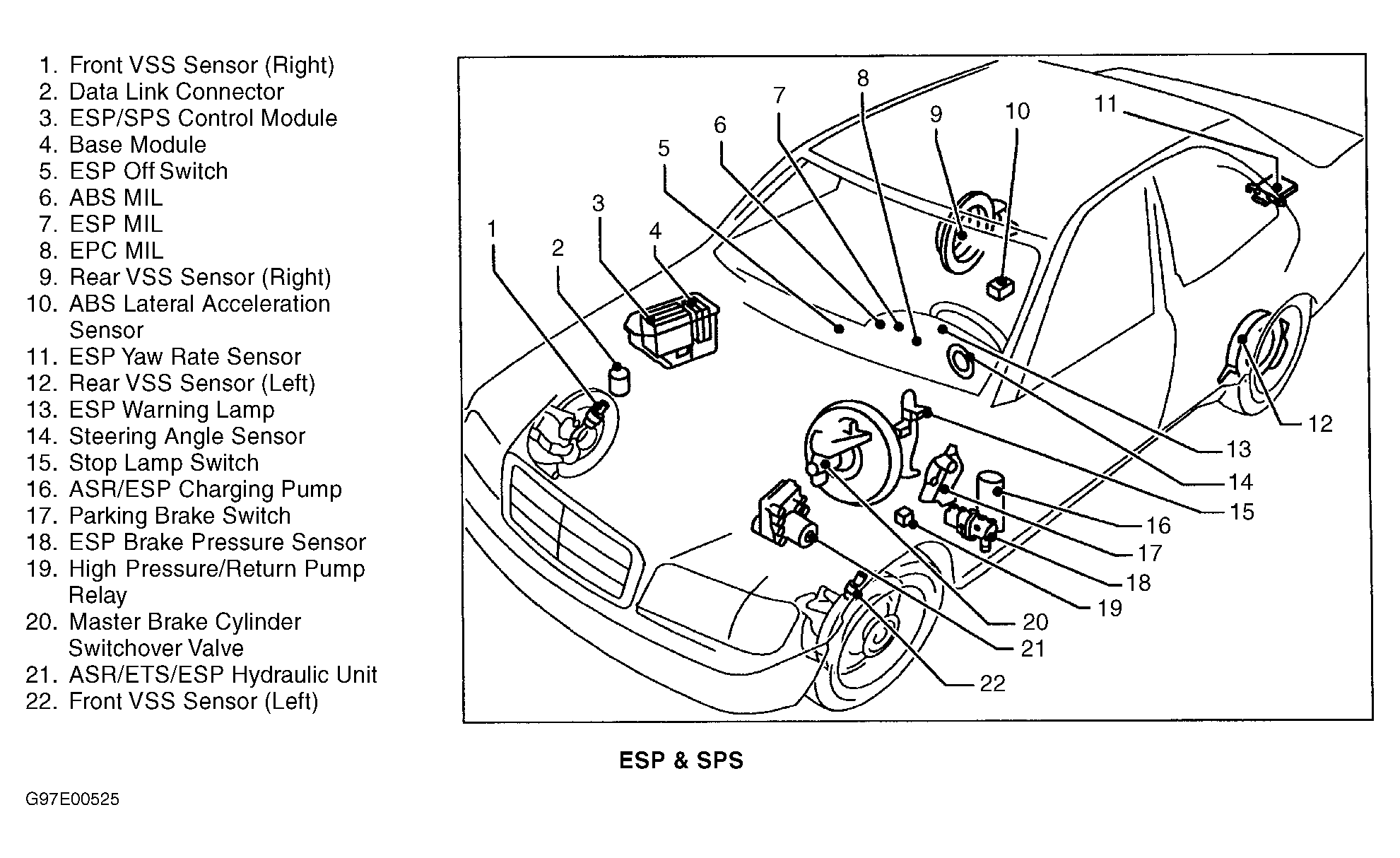

| ASR/ETS/ESP Hydraulic Unit (ESP & SPS) | On left side of engine compartment. See Figure . |

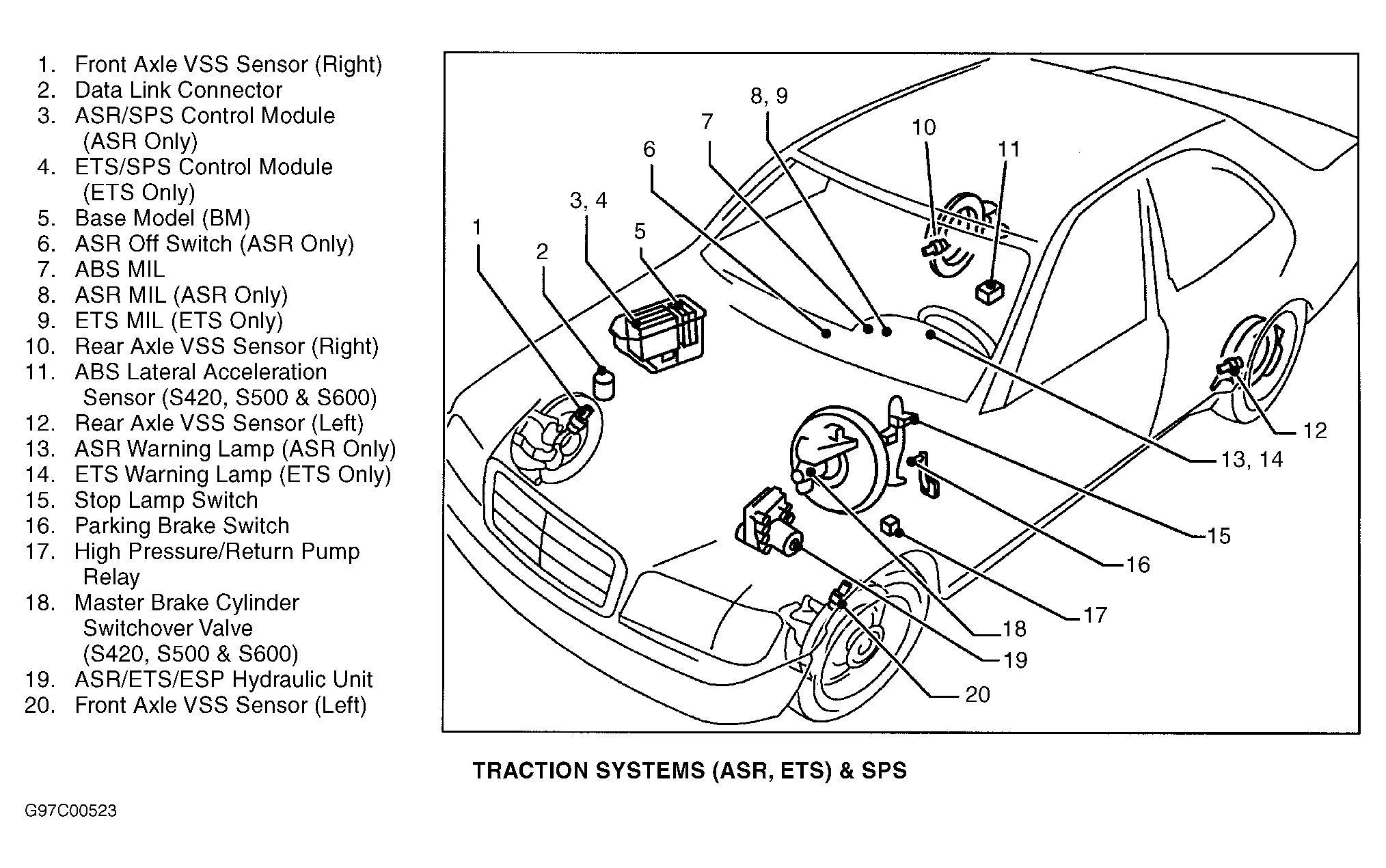

| ASR/ETS/ESP Hydraulic Unit W/ Traction Systems (ASR, ETS) & SPS | On left side of engine compartment. See Figure . |
| ASR/SPS Control Module (ASR Only) W/ Traction Systems (ASR, ETS) & SPS | In module box, on right rear of engine compartment. See Figure . |
| Base Module (BM) W/ Traction Systems (ASR, ETS) & SPS | In module box, on right rear of engine compartment. See Figure . |
| Base Module (ESP & SPS) | In module box, on right rear of engine compartment. See Figure . |
| Base Module (BM) (S420 & S500) | In module box, on right rear of engine compartment. See Figure . |
| Base Module (S600) | In module box, on right rear of engine compartment. See Figure . |
| Convenience Control Module | On right side of luggage compartment, behind trim panel. |
| Daytime Driving Lamp Control Module | Behind Center of dash. |
| Engine Control Module (ME-SFI) (S420 & S500) | In module box, on right rear of engine compartment. See Figure . |
| Engine Control Module (ME-SFI) (Left) (S600) | In module box, on right rear of engine compartment. See Figure . |
| Engine Control Module (ME-SFI) (Right) (S600) | In module box, on right rear of engine compartment. See Figure . |
| ESP/SPS Control Module (ESP & SPS) | In module box, on right rear of engine compartment. See Figure . |
| ETS/SPS Control Module (ETS Only) W/ Traction Systems (ASR, ETS) & SPS | In module box, on right rear of engine compartment. See Figure . |
| Fuel Pump (FP) Relay Module (S420 & S500) | On right side of trunk. See Figure . |
| Fuel Pump (FP) Relay Module (S600) | On right side of trunk. See Figure . |
| Infrared Interior Motion Sensor Control Module | On right side of trunk. |
| Infrared Remote Central Locking (IRCL) Control Module | On right rear of engine compartment. |
| Infrared Remote Control Module (Coupe) | On left side rear of passenger compartment, behind trim panel. |
| Infrared Remote Control Module (Sedan) | On right side of luggage compartment, behind trim panel. |
| Lamp Failure Monitoring Unit | On left rear of engine compartment. |
| Parktronic System (PTS) Control Module | Below right rear seat. |
| Pulse Module | Lower left front corner of engine. |
| Seat Belt Reminder Control Module | Behind left center of dash. |
| Starter Lock-Out Relay Module (S420, S500 & S600) | On right rear corner of engine compartment. See Figure . |
| Transmission Control Module (S420, S500 & S600) | In module box, on right rear of engine compartment. See Figure . |
