Fuel Injector Tests
NOTE:
Far left column in following graphic are step numbers.

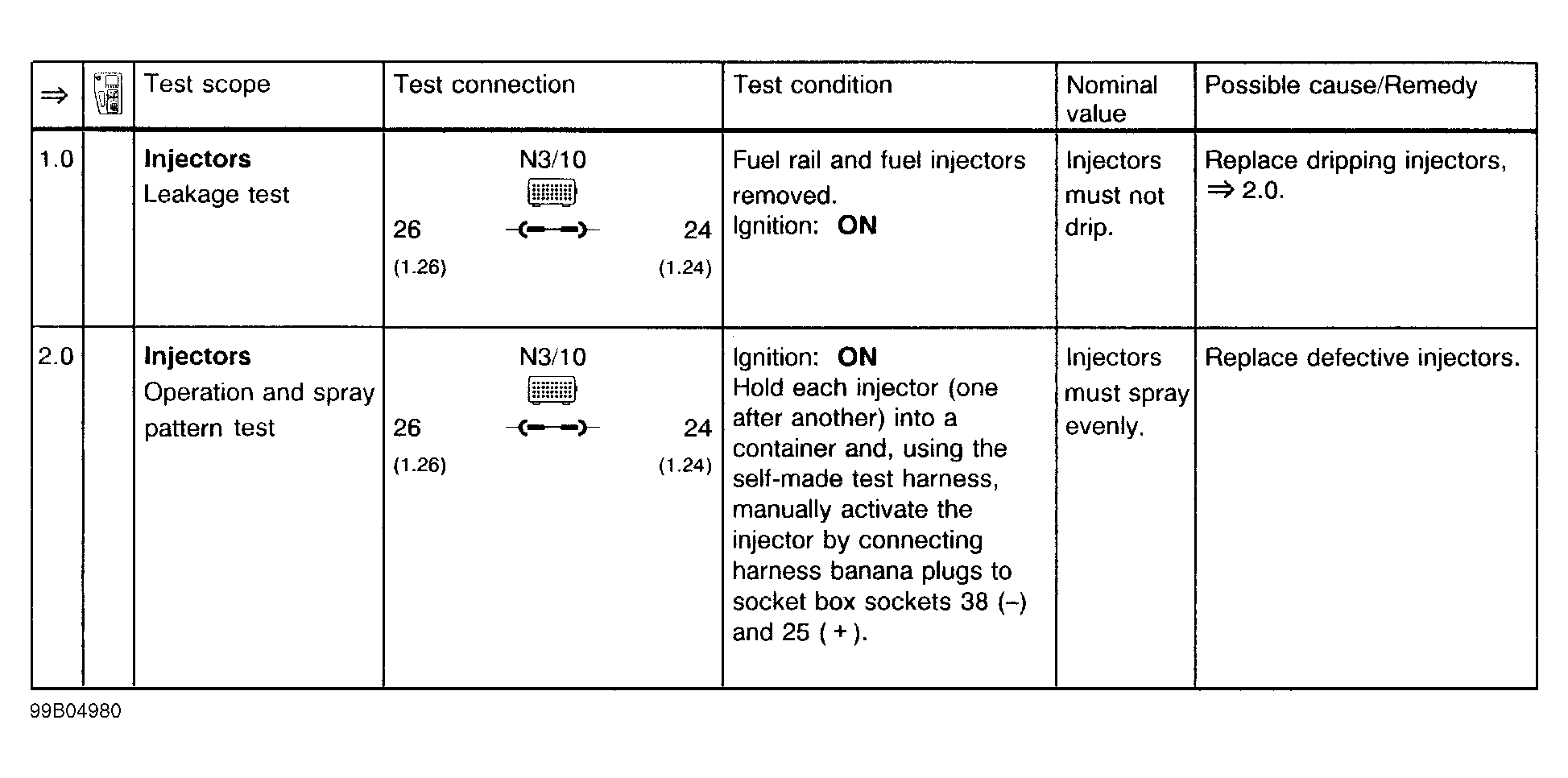

Fig 1: Fuel Injector Tests
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
