Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

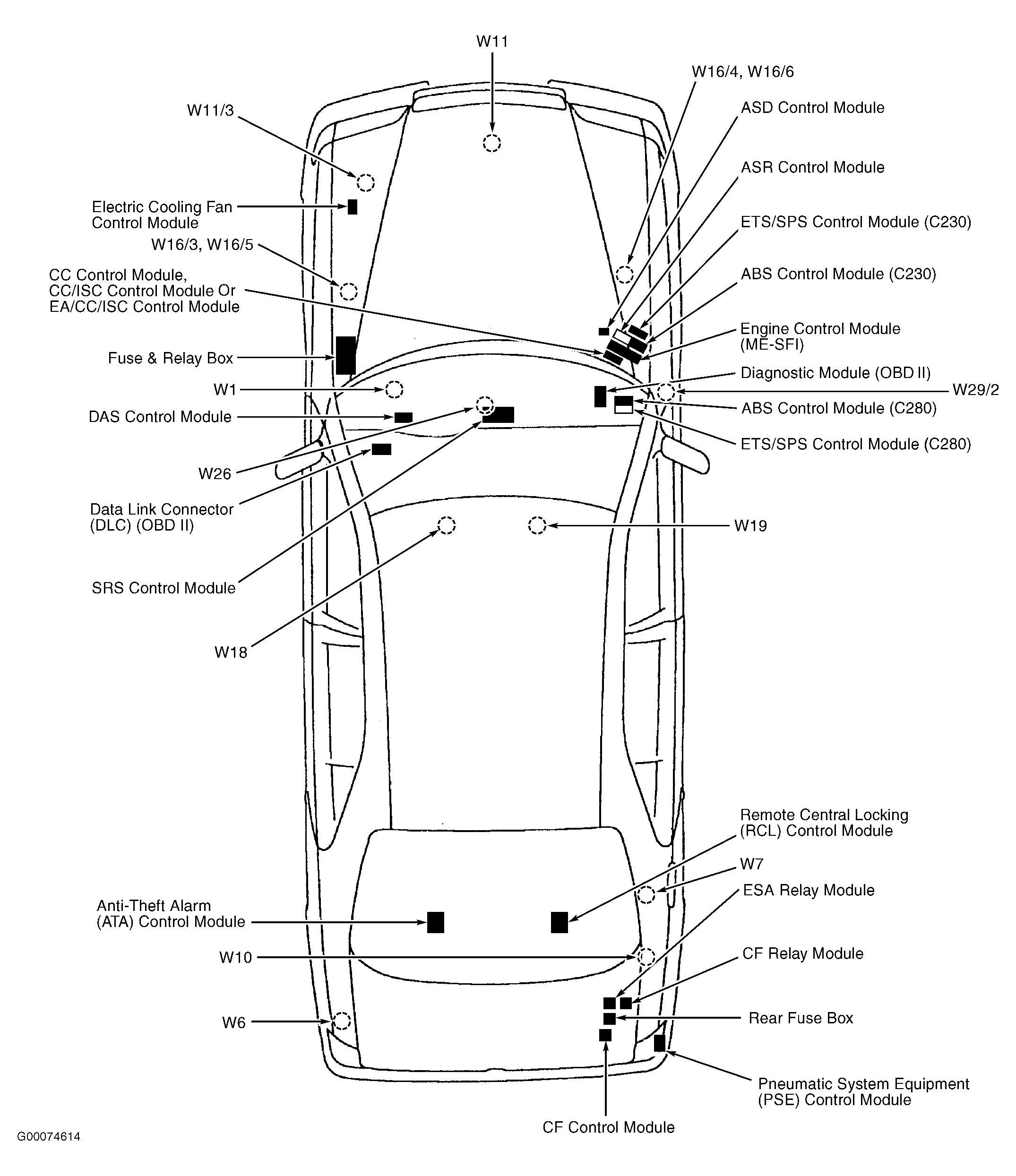

| ABS Control Module (C230) | On right rear of engine compartment. See Figure . |
| ABS Control Module (C280) | On passenger's footplate. See Figure . |
| AIR Relay Module | In fuse & relay box. |
| Amplifier (Left/Right Speakers) Control Module | On left side of trunk. |
| Anti-Theft Alarm (ATA) Control Module | In trunk, below trim panel. See Figure . |
| ASD Control Module | On right rear of engine compartment. See Figure . |
| ASR Charging Pump Relay Module | In fuse & relay box. |
| ASR Control Module | On right rear of engine compartment. See Figure . |
| ASR/ETS/ESP Hydraulic Unit | On left front of engine compartment. |
| Auxiliary Fan Relay Module (Stage 1) | In fuse & relay box. |
| Auxiliary Fan Relay Module (Stage 2) | In fuse & relay box. |
| Auxiliary Fan Relay Module (Stage 1 & 2) | In fuse & relay box. |
| CC Control Module | On right rear of engine compartment. See Figure . |
| CC/ISC Control Module | On right rear of engine compartment. See Figure . |
| CF Control Module | On lower right rear of trunk, near battery. See Figure . |
| CF Relay Module | On right side of trunk floor, rear of wheelwell. See Figure . |
| CTEL Transmitter/Receiver | In bottom left rear of trunk. |
| Daytime Running Light Control Module | Behind left side of dash. |
| DAS Control Module | Behind instrument cluster. See Figure . |
| Diagnostic Module (OBD II) | On passenger's floor plate. See Figure . |
| EA/CC/ISC Control Module | On right rear of engine compartment. See Figure . |
| Electric Cooling Fan Control Module | In left front wheelwell, on frame rail. See Figure . |
| Engine Control Module (ME-SFI) | In module box, on right rear of engine compartment. See Figure . |
| ESA Relay Module | On right side of trunk floor, rear of wheelwell. See Figure . |
| ETS/SPS Control Module (C230) | On right rear of engine compartment. See Figure . |
| ETS/SPS Control Module (C280) | On passenger's footplate. See Figure . |
| Exterior Light Failure Monitoring Module | On left rear of engine compartment. |
| Fuel Pump (FP) Relay Module | On right side of trunk. |
| Horn Relay Module | In fuse & relay box. |
| HCS Relay Module | In fuse & relay box. |
| Kickdown Cut-Out Relay Module | In right rear of engine compartment. |
| Over Voltage Protection Relay Module (C230) | On right rear of engine compartment. |
| Over Voltage Protection Relay Module (C280) | On right rear of engine compartment. |
| O2S2 Heater Relay Module | In fuse & relay box. |
| Pneumatic System Equipment (PSE) Control Module | On right side rear of trunk. See Figure . |
| Remote Central Locking (RCL) Control Module | In trunk, below package shelf. See Figure . |
| Seat Belt Warning Module | Behind left kick panel. |
| Separation Relay Module | In fuse & relay box. |
| SRS Control Module | On transmission tunnel, forward of shifter. See Figure . |
| Starter Lock-Out Relay Module (ATA) | Behind dash, above left kick panel. |
| Traction System Control Module | In module box, on right rear of engine compartment. |
| Transmission Control Module | On rear of engine compartment. |
