Cruise control switch location/task/function - GF07.13-P-3124H: Notes

ENGINE 604.910 #2 in MODEL 202.121 /182

ENGINE 605.910 #2 in MODEL 202.125

ENGINE 605.960 #2 in MODEL 202.128 /188

ENGINE 604.912 #2 in MODEL 210.004

ENGINE 605.912 #2 in MODEL 210.010 /210 /610

ENGINE 606.912 #2 in MODEL 210.020

ENGINE 602.982 #2 in MODEL 210.017 /217 /617

ENGINE 119.980 in MODEL 140.050 /051 /070 with CODE (491) U.S. version with CODE (833) GB version with CODE (498) Japanese version

ENGINE 119.981 in MODEL 140.042 /043 /063 with CODE (491) U.S. version with CODE (833) GB version with CODE (498) Japanese version

ENGINE 119.982 in MODEL 129.067 with CODE (491) U.S. version with CODE (833) GB version with CODE (498) Japanese version

ENGINE 119.985 in MODEL 210.072 /272

ENGINE 120.982 in MODEL 140.057 /076 with CODE (491) U.S. version with CODE (833) GB version with CODE (498) Japanese version

ENGINE 120.983 in MODEL 129.076 with CODE (491) U.S. version with CODE (833) GB version with CODE (498) Japanese version

ENGINE 111.943 #2 in MODEL 170.445

ENGINE 604.915 #2 in MODEL 202.122 /180

ENGINE 604.917 #2 in MODEL 210.003

ENGINE 606.961 #2 in MODEL 140.135

ENGINE 606.962 #2 in MODEL 210.025 /225

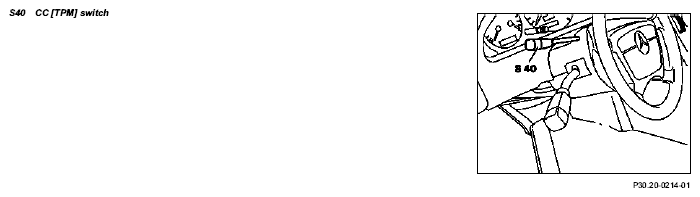

Fig 1: Identifying Cruise Control Switch Location
G04623985Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  Cruise control switch task
  • To switch cruise control function on and off at speeds >40 km/h
  • While cruise control is engaged, to raise or lower cruise speed.
  • To deliver signals to the engine control module

  Cruise control switch function   GF07.13-P-3124-01H
