Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

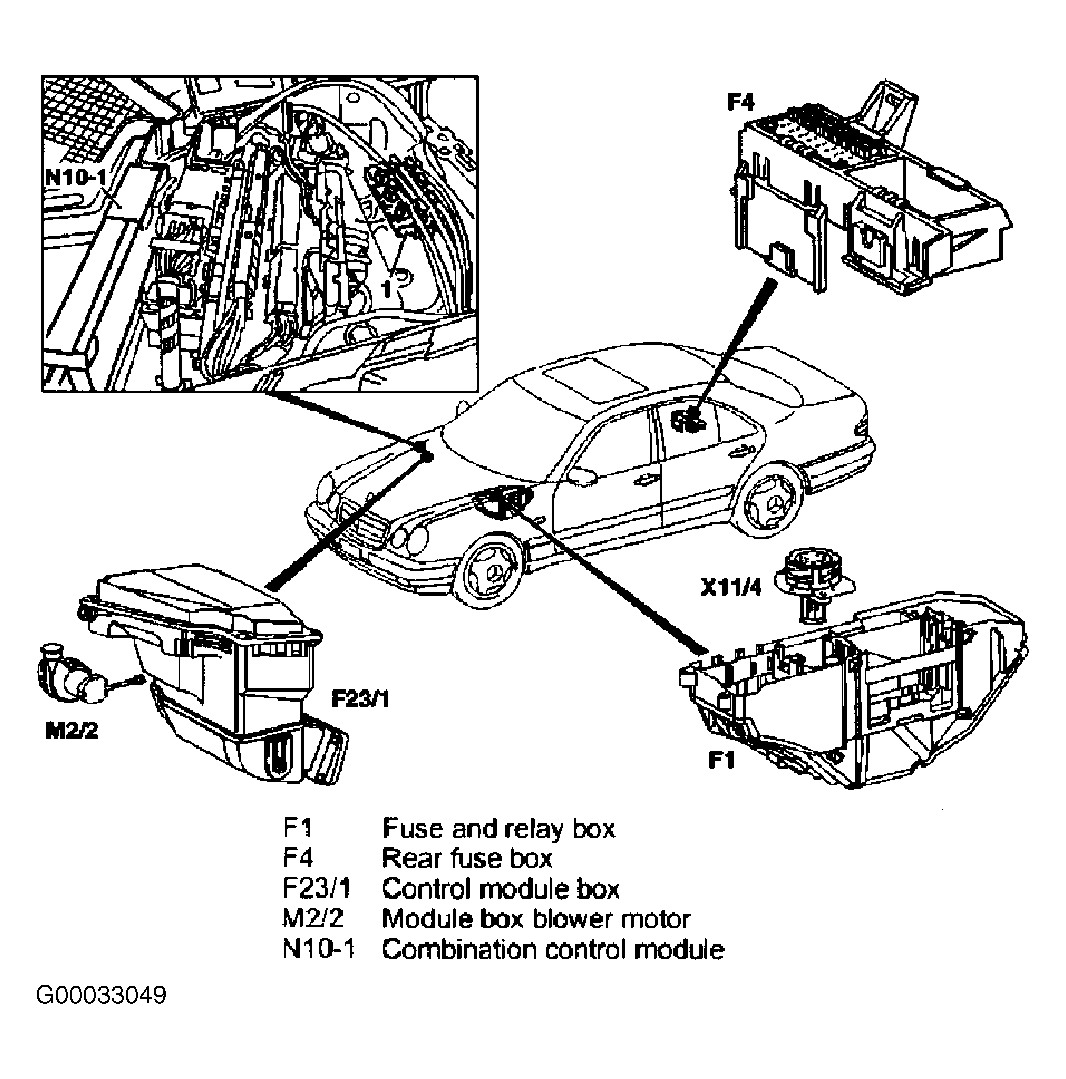

Control Module Box Right rear of engine compartment. See Figure .
Driver-Side Relay & Module Box Left rear of engine compartment. See Figure .
Fuse & Relay Box Left rear of engine compartment. See Figure .
Illumination Control Module Fuses Left end of dash, in door opening.
Passenger-Side Relay Box Right rear of engine compartment.
Rear Fuse Box Under right rear seat. See Figure .
