Starter control function - GF15.30-P-3000HB

ENGINE 604.910 #2 in MODEL 202.121 /182 as of 1.6.97

ENGINE 604.915 #2 in MODEL 202.122 /180 as of 1.6.97

ENGINE 605.960 #2 in MODEL 202.128 /188 as of 1.6.97

ENGINE 604.912 #2 in MODEL 210.004 as of 1.3.97

ENGINE 604.917 #2 in MODEL 210.003 as of 1.3.97

ENGINE 605.912 #2 in MODEL 210.010 /210 /610 as of 1.3.97

ENGINE 606.962 #2 in MODEL 210.025/225 as of 1.3.97

ENGINE 602.982 #2 in MODEL 210.017 /217 /617 as of 1.3.97

Task

• Switching off starter (M1) as soon as engine self-running is reached.

Operation

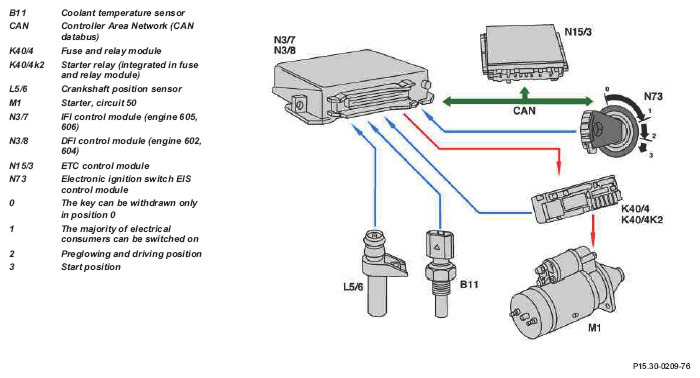

The starter (M1) is actuated by the IFI or DFI control module (N3/7, N3/8) via the fuse and relay module (K40/4) and the starter relay (K40/4k2).

The values for engine self-running recognition, starter protection, ring gear protection and vehicle electrical system protection are stored in the control module in the form of characteristic curves of fixed values.

Conditions for starter ON:

• Drive authorization system unlocked

  and

• Engine speed = 0

  and

• Selector lever position P or N engaged

  and

• One-touch operation of key start position (∠60 msec.)

Conditions for starter OFF:

• Key in position 0 or 1 (start operation ended)

  or

• engine self-running reached

  or

• maximum permissible engine speed is exceeded once (starter protection)

  or

• a drive position is engaged during starting

  or

• maximum start ON time is exceeded (electrical signal protection).

  The electrical signal protection is not active if the key is held in start position 3. The conditions stated above then continue to apply for switching off the starter

In the case of a repeat start, there is a blocking period of 1.5 seconds after the starter is switched off in order to prevent the starter meshing with the starter ring gear of the engine when the starter pinion is still rotating (ring gear protection).

	DFI [EVE] control module location/task/design/function	Engine 602	GF07.13-P-3102C
		Engine 604	GF07.13-P-3102H
	IFI control module, location/task/function	Engine 605, 606	GF07.12-P-3102H
	Fuse and relay module location/task/function		GF07.13-P-3141H
	Electronic ignition switch control module Location/Function/Design/function		GF80.57-P-4102A
	ETC control module, location/task	Transmission 722.6	GF27.19-P-4012G
	Crankshaft position sensor, location/design/ task/function		GF07.04-P-4116H
	Coolant temperature sensor location/task/ design/function		GF07.04-P-5026C
	CAN databus function		GF54.00-P-0005C
